3 Installation and Configuration
3.1 Configuration DIP Switches
S5U13506P00C100 PCI Evaluation Board User Manual
Issue Date: 2009/03/02
The S5U13506P00C100 is designed to support as many platforms as possible. The board
incorporates a DIP switch and several jumpers which allow both evaluation board and
S1D13506 LCD controller settings to be configured for a specified evaluation platform.
The S1D13506 LCD controller has 16 configuration inputs (MD[15:0]) which are read on
the rising edge of RESET#. Where appropriate, the S5U13506P00C100 hard-wires some
of these configuration inputs, but in order to configure the S1D13505 for multiple host bus
interfaces an eight-position DIP switch is required. The following figure shows the location
of DIP switch S1 on the S5U13506P00C100 board.

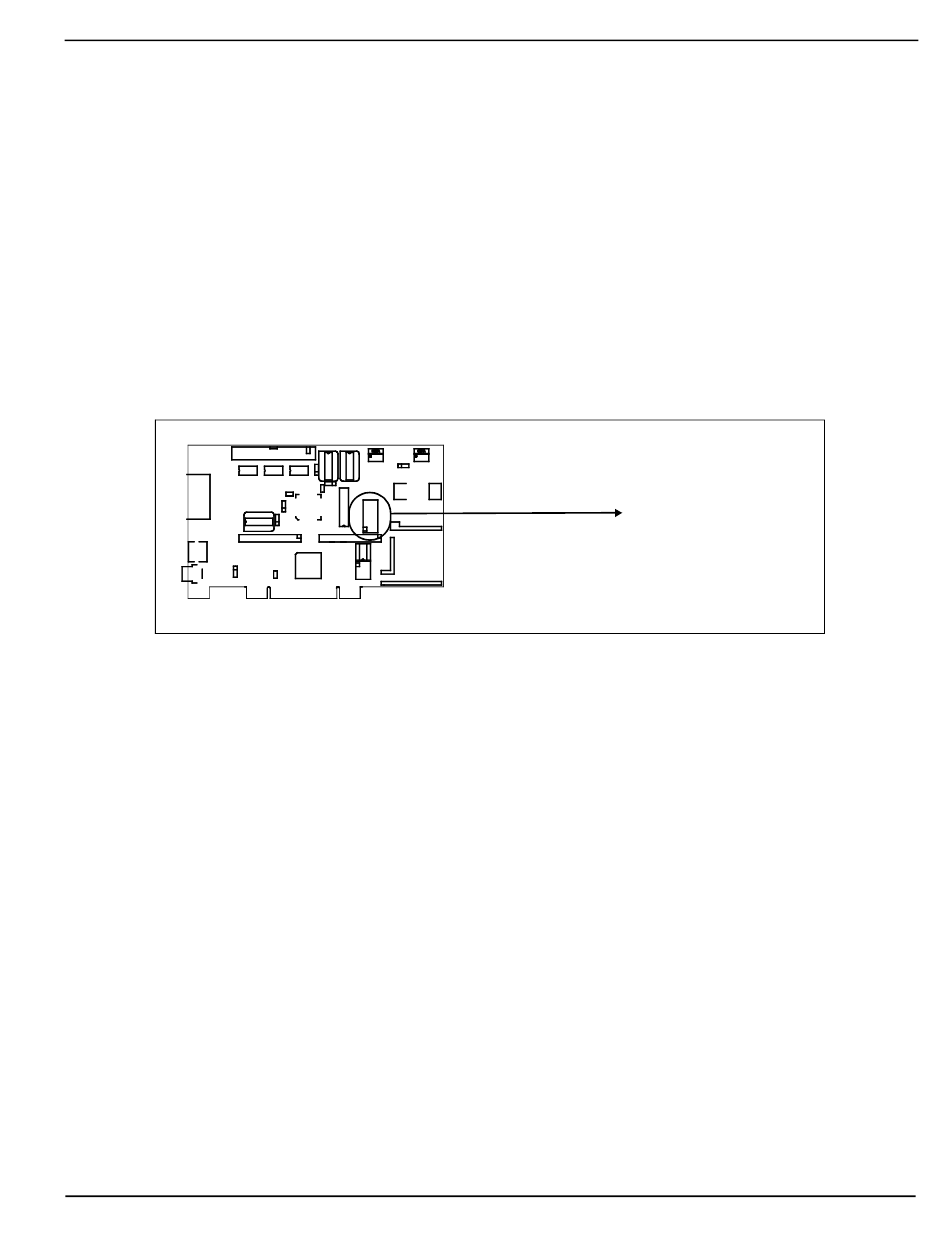

Figure 3-1: Configuration DIP Switch (S1) Location
DIP Switch - S1
X25B-G-014-02
