3 Installation and Configuration

The S5U13A05B00C is designed to support as many platforms as possible. The
S5U13A05B00C incorporates a DIP switch and five jumpers which allow both the evalu-
ation board and the S1D13A05 LCD controller to be configured for a specified evaluation
platform.

3.1 Configuration DIP Switches

The S1D13A05 has seven configuration inputs (CNF[6:0]) which are read on the rising
edge of RESET#. In order to configure the S1D13A05 for multiple Host Bus Interfaces an
eight-position DIP switch (SW1) is required. The following figure shows the location of
DIP switch SW1 on the S5U13A05B00C.
S5U13A05B00C Rev 1.0 Evaluation Board
Rev. 1.1
All manuals and user guides at all-guides.com

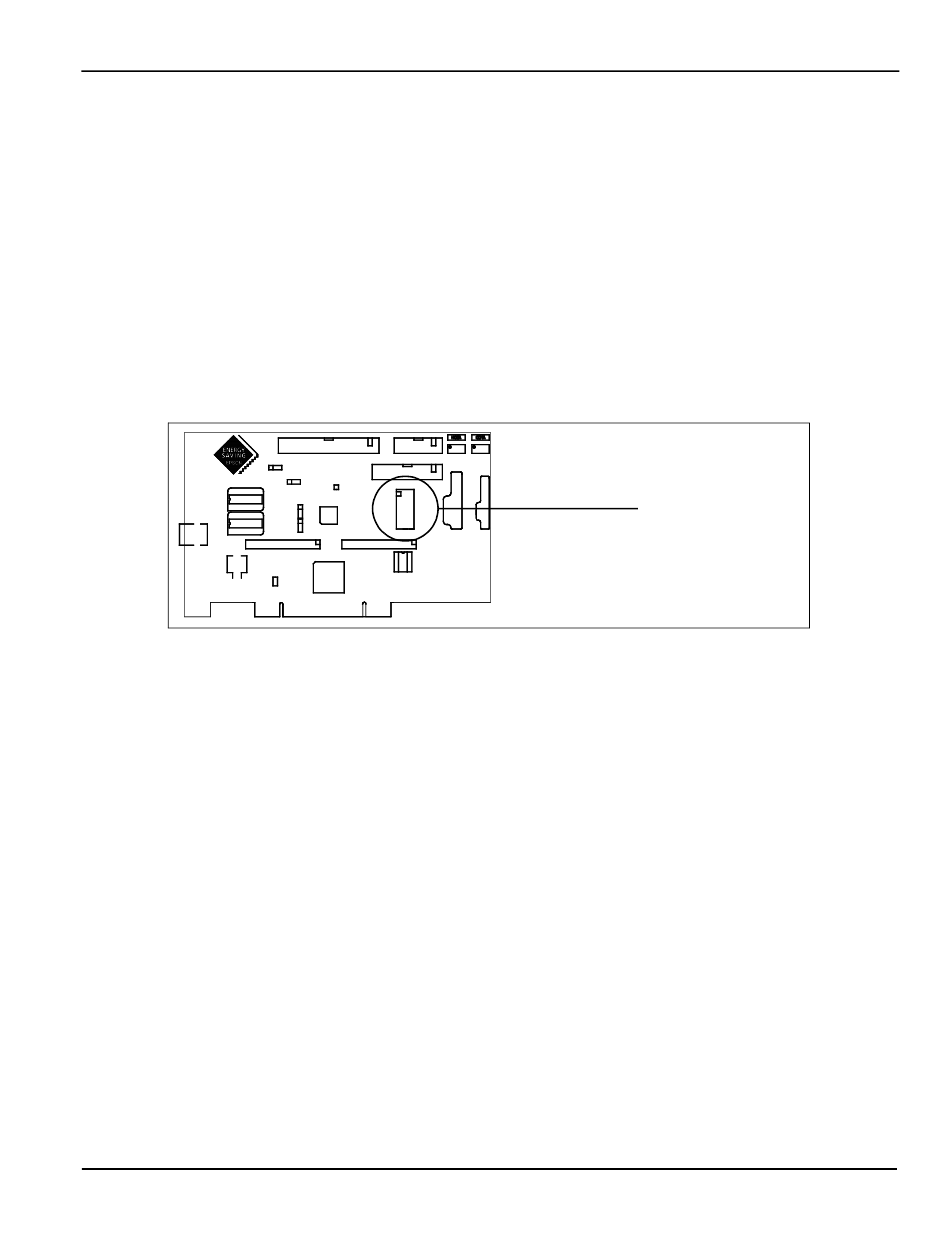

Figure 3-1: Configuration DIP Switch (SW1) Location
Seiko Epson Corporation
Installation and Configuration
DIP Switch - SW1
7
