3 Installation and Configuration

3.1 Configuration DIP Switches

S5U13706P00C100 Evaluation Board
Rev. 1.2
The S5U13706P00C100 is designed to support as many platforms as possible. The
S5U13706P00C100 incorporates a DIP switch and three jumpers which allow both the
evaluation board and S1D13706 LCD controller to be configured for a specified evaluation
platform.
The S1D13706 has configuration inputs (CNF[7:0]) which are read on the rising edge of
RESET#. In order to configure the S1D13706 for multiple Host Bus Interfaces a ten-
position DIP switch (S1) is provided. The following figure shows the location of DIP
switch SW1 on the S5U13706P00C100.

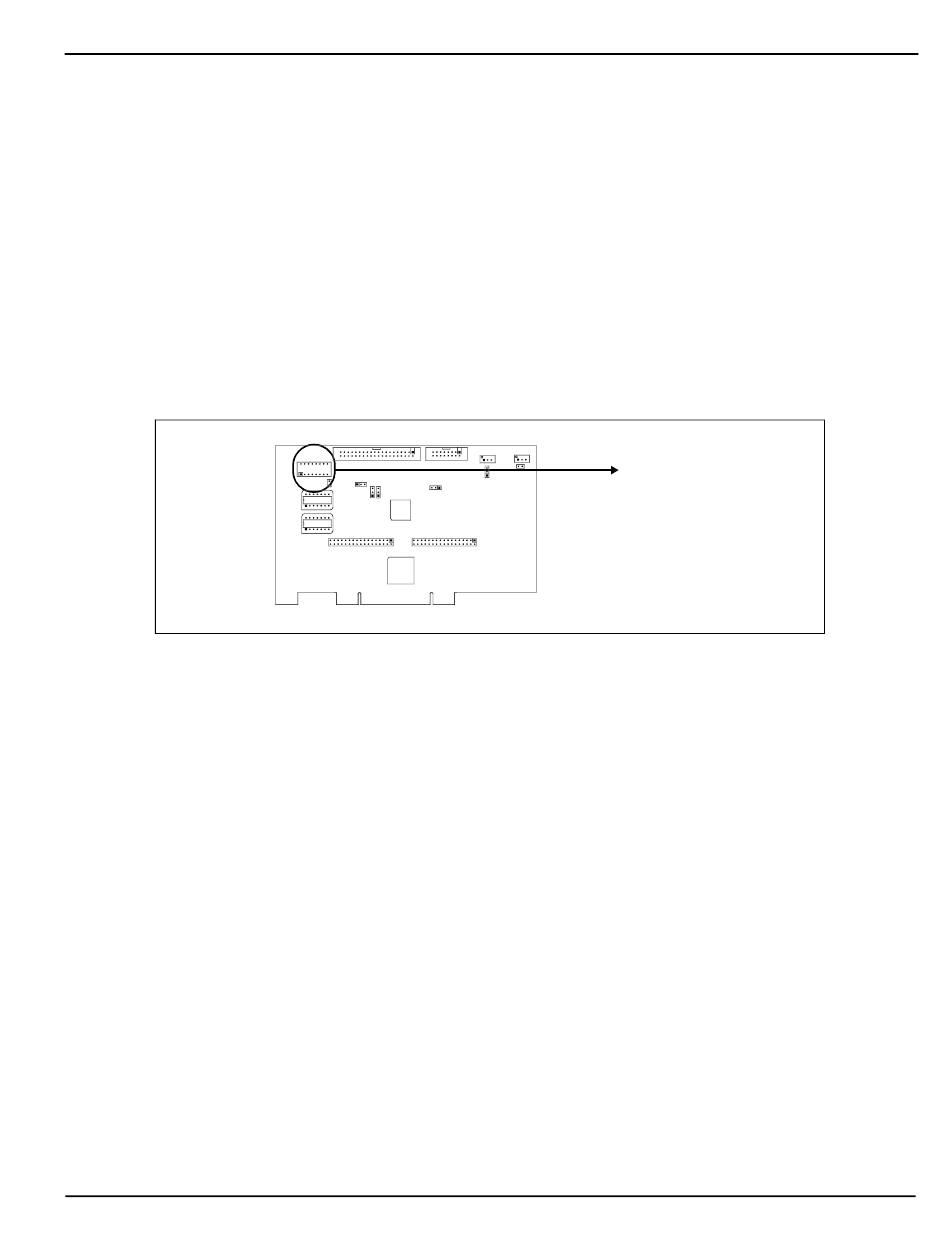

Figure 3-1: Configuration DIP Switch (SW1) Location
Seiko Epson Corporation
Installation and Configuration
DIP Switch - SW1
7
