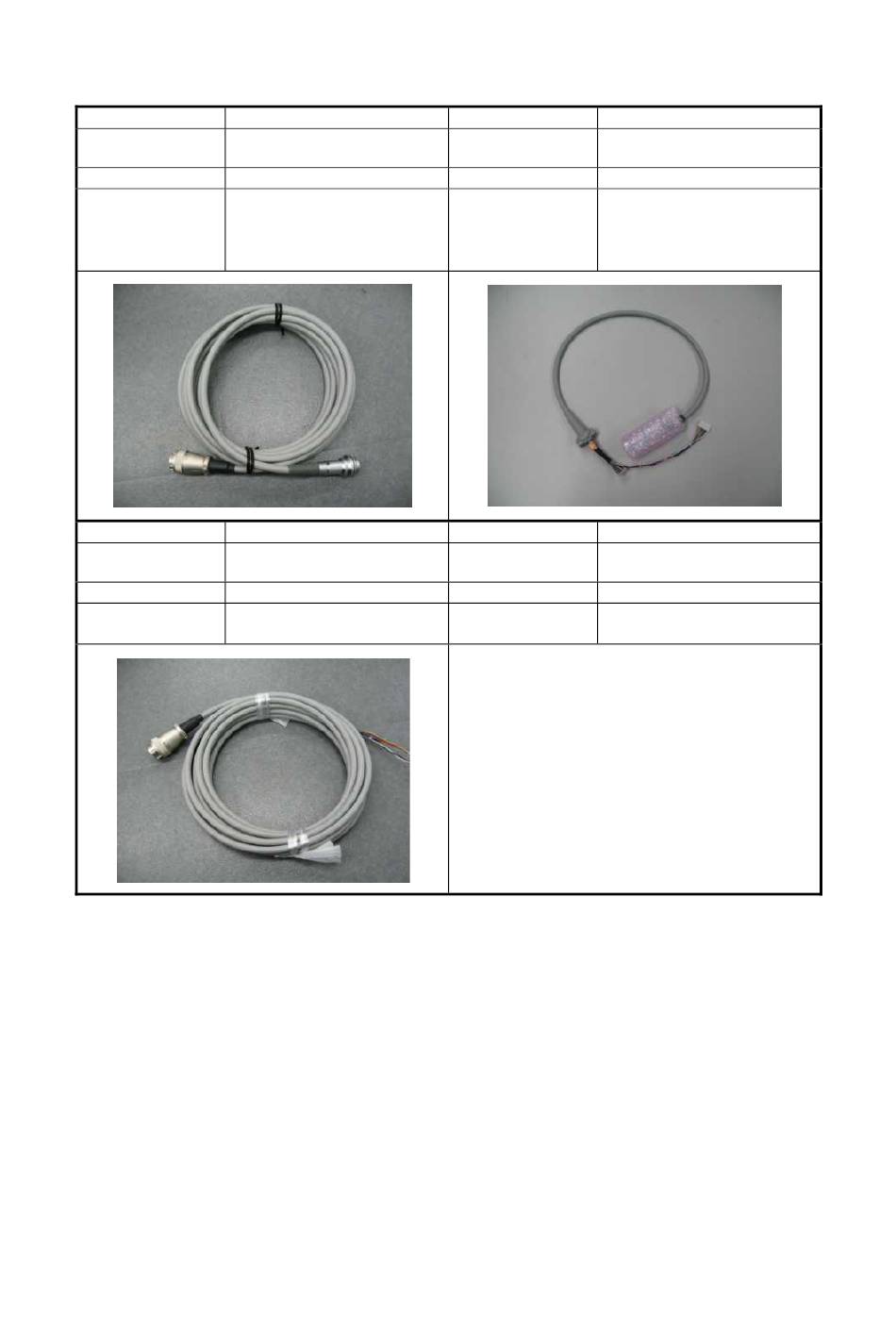

4.3 Sensor Cable (Optional)

No.
Sensor Cable P630-PM
Name
(Panel mount type)
Qty 1
6.3m
Remarks
Detachable cable connector
No.
Sensor Cable SP780-60
Name
(Straight type)
Qty 1
7.8 m
Remarks
Non-detachable cable
Sensor cable P630-PM (panel mount type)
This sensor cable can be used in place of a standard sensor cable P630 (power box side). Only the
difference between them is the form of the connector. There is no difference in the function of the
cables.
Sensor cable S70-60 (imaging unit side)
This sensor cable can be used in place of a standard sensor cable S150-60 (imaging unit side). Only the
difference between them is the length of the cable. The sensor cable S70-60 is 0.7m in length. There is
no difference in the function of the cables.
Sensor cable SP780-60 (straight type)
This is a single straight type sensor cable with no detachable connectors. This single cable can be used
in place of a standard sensor cable S150-60 (imaging unit side) and a standard sensor cable P630
(power box side). There is no difference in the function of the cables.
2. Installation
1
Remarks
3
5
No.
Sensor cable S70-60
Name
(Imaging unit side)
Qty 1
0.7m
Detachable cable connector
Connector form: New type
(External diameter φ18)
2
