TLP Pro 725C Series • Setup Guide (Continued)

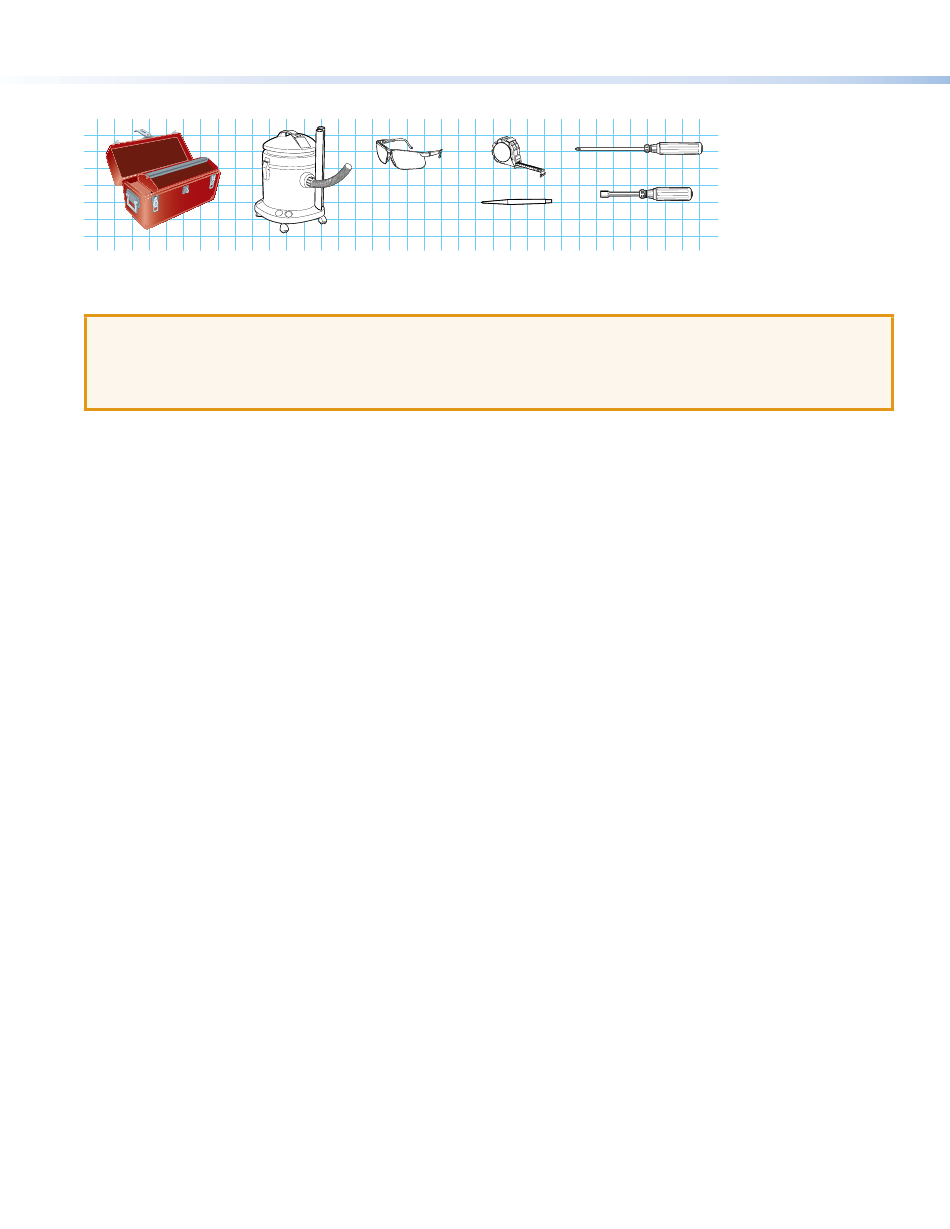

Tools Required for Installation
Tools required for installation
Figure 2.
Mount and Cable All Devices
ATTENTION:
Do not power on the touchpanels or control processors until you have read the Attention in the "Rear Panel Features"
•
section of the TLP Pro 725C Series User Guide.
Ne branchez pas les écrans tactiles ou les contrôleurs avant d'avoir lu la mise en garde dans la section « Rear Panel
•
Features » du TLP Pro 725C Series User Guide.
Cut a hole in the table (see
Run cables to the cable cubby (see
Install modules into the Cable Cubby enclosure. Multiple optional modules can be installed in the TLP Pro 725C Cable Cubby
in a variety of configurations. Decide which modules and which configuration best serve your needs. Options include:
Cable Retractors (see
•
Pass-through Cable Modules (see
•
AAP Modules (see
•
Power Modules (see
•
Mount the units (see
Connect the touchpanel to a Power over Ethernet injector (see
Connect the power injector to the LAN and power it on (see
Set up the Touchpanels for Network Communication
Connect the PC that you are using for setup, the control processor, and the touchpanel to the same Ethernet subnetwork.
Setup Menu
Use the
gateway, and related settings for the touchpanel.
Configure the Touchpanels
The GUI Designer Help File, the Global Configurator Help File, and the Toolbelt Help File provide step-by-step instructions and
detailed information. The Global Configurator Help File includes an introduction to the software and sections on how to start a
project and configuration.
Global Scripter provides an Extron-exclusive Python library (ControlScript
Mounting
Planning
Before making any cuts, select the best location for the TLP Pro 725C.
Ensure that the edge that opens on the lid is oriented correctly.
Ensure there is enough space for all the system cables and components, including cable retractors, if they are to be installed.
The space requirements for retractors are shown in the TLP Pro 725C User Guide, which is available at www.extron.com.
Decide on the method for cutting a hole in the table:
Hand router and template
•
CNC wood router
•
Jigsaw and paper template
•
Verify that you have the correct template or dimensions.
Check all relevant regulations.
Ensure that the installation complies with local, state, and national building and electrical codes.
Ensure that the installation complies with the Americans with Disabilities Act or other accessibility requirements.
2
Safety Glasses
Vacuum Cleaner
Step 1 — Cut-out Dimensions
Step 3 — Run all Cables
Step 4 — Install Cable Retractors (Optional)
Step 5 — Assemble Pass-through Cable Module (Optional)
Step 6 — Assemble AAP Module (Optional)
Step 7 — Install Modules
Step 8 — Mounting the Enclosure
(see page 8) or Toolbelt to set the DHCP status and, if necessary, the IP address, subnet mask,
Phillips Screw Driver
Tape Measure
1/4" Hex Nut Driver
Marking Pen
and
Step 2 — Cut the Surface
on page 4).
on page 4).
on page 4).
on page 5).
on page 6).
figure 9
on page 7).
figure
9).
) and Global Scripter modules to get you started.
®
on page 3).
on page 4).
