Evaluation Board - Quectel RM500Q-AE Manual

VCC
GND
FULL_CARD_POWER_OFF#
RESET_N
(U)SIM1
USB 2.0 & USB 3.1
PCIe × 1
RFFE
GPIOs
WWAN_LED#
WAKE_ON_WAN#
W_DISABLE1#
W_DISABLE2#
2.3.2.4.

Evaluation Board

To help with the development of applications conveniently with RM500Q-AE&RM502Q-AE, Quectel
supplies the evaluation board (PCIe Card EVB), a USB to RS-232 converter cable, a USB type-C cable,
antennas and other peripherals to control or test the module. For more details, see document [1].
RM500Q-AE&RM502Q-AE_Hardware_Design
PMIC
38.4M
XO
Baseband
NAND Flash 4Gb x8
LPDDR4X SDRAM 4Gb x16

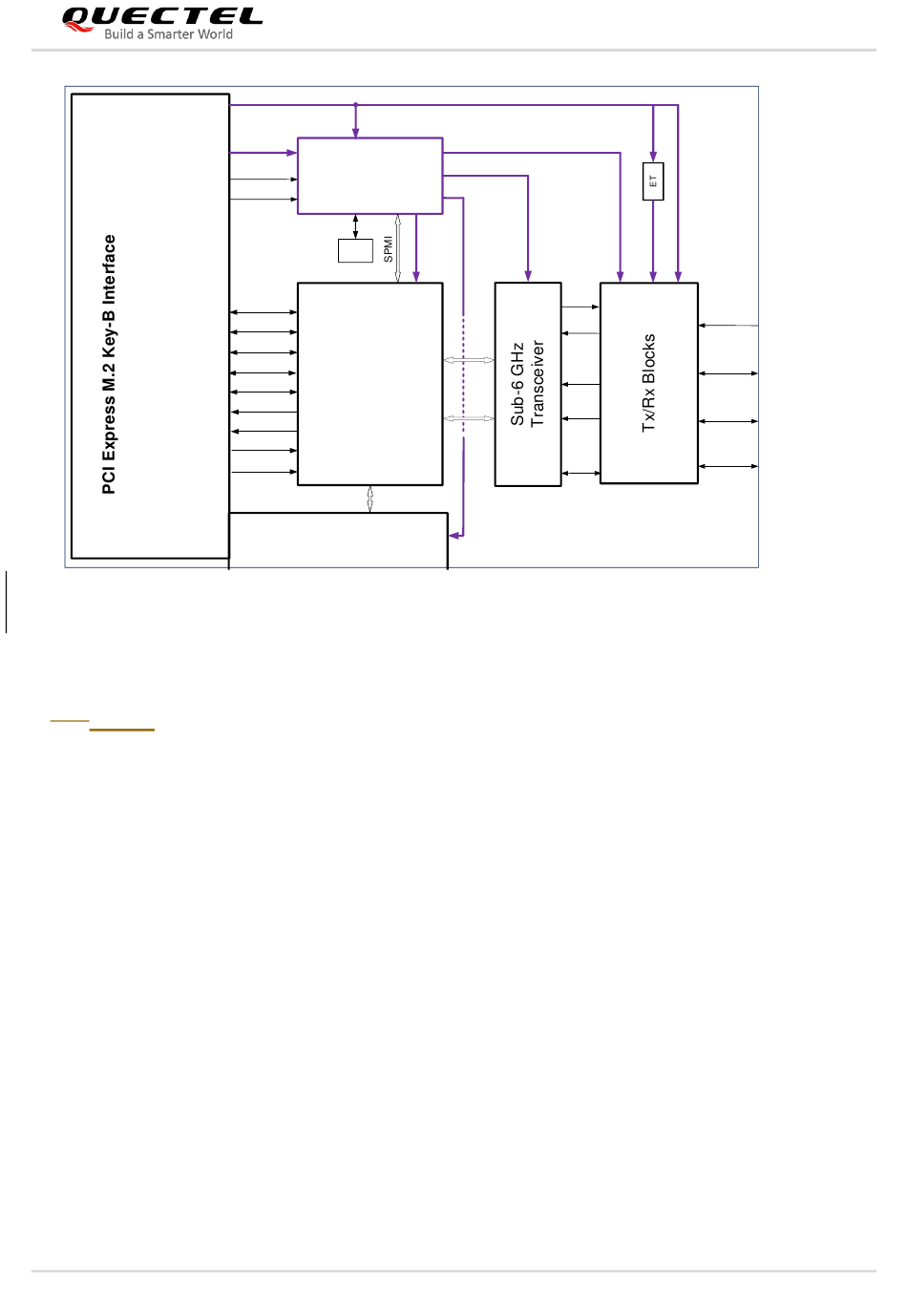

Figure 1: Functional Diagram
RM500Q-AE&RM502Q-AE Hardware Design
Tx
PRx
IQ
DRx
Control
GNSS
MIPI/G
RFC
5G Module Series
ANT3_GNSSL1
ANT2
ANT1
ANT0
