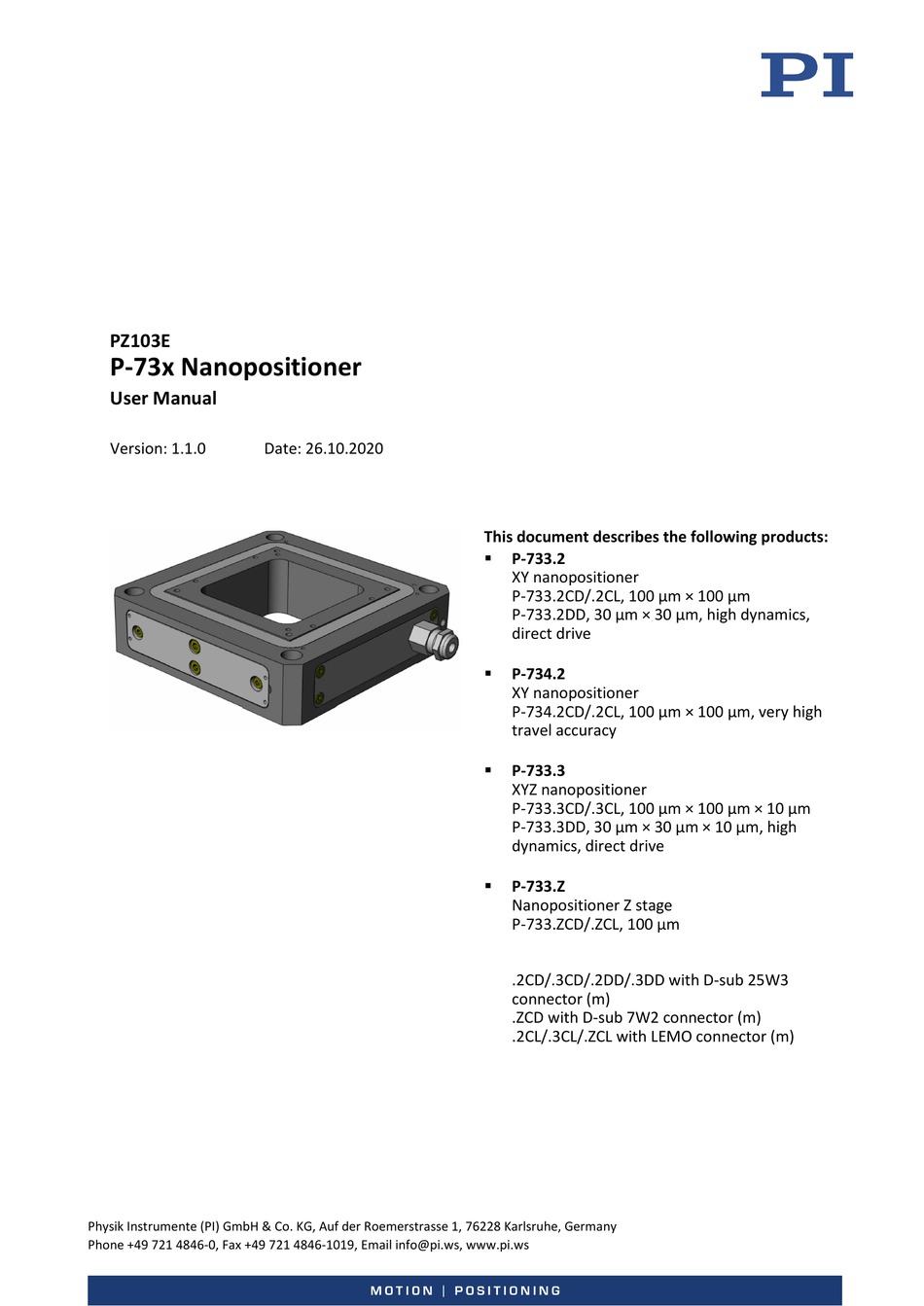

PZ103E

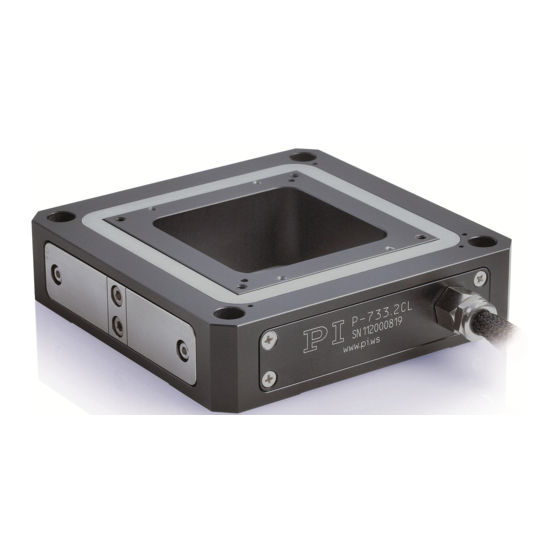

P­73x Nanopositioner
User Manual
Version: 1.1.0
Physik Instrumente (PI) GmbH & Co. KG, Auf der Roemerstrasse 1, 76228 Karlsruhe, Germany
Phone +49 721 4846-0, Fax +49 721 4846-1019, Email info@pi.ws, www.pi.ws
Date: 26.10.2020
This document describes the following products:
P­733.2
XY nanopositioner
P-733.2CD/.2CL, 100 µm × 100 µm
P-733.2DD, 30 µm × 30 µm, high dynamics,
direct drive
P­734.2
XY nanopositioner
P-734.2CD/.2CL, 100 µm × 100 µm, very high
travel accuracy
P­733.3
XYZ nanopositioner
P-733.3CD/.3CL, 100 µm × 100 µm × 10 µm
P-733.3DD, 30 µm × 30 µm × 10 µm, high
dynamics, direct drive
P­733.Z
Nanopositioner Z stage
P-733.ZCD/.ZCL, 100 µm
.2CD/.3CD/.2DD/.3DD with D-sub 25W3
connector (m)
.ZCD with D-sub 7W2 connector (m)
.2CL/.3CL/.ZCL with LEMO connector (m)
