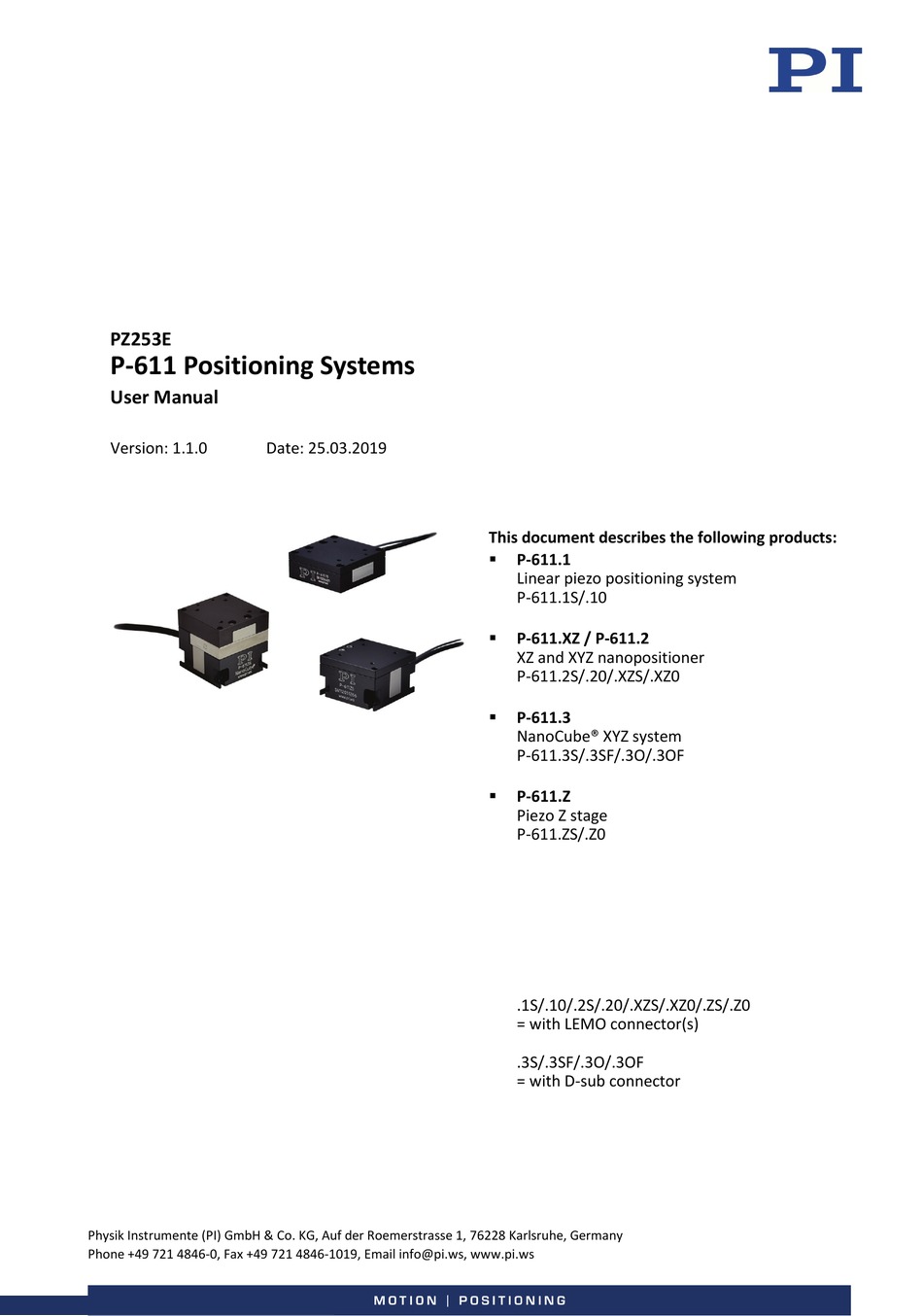

PZ253E
P­611 Positioning Systems
User Manual
Version: 1.1.0
Physik Instrumente (PI) GmbH & Co. KG, Auf der Roemerstrasse 1, 76228 Karlsruhe, Germany
Phone +49 721 4846-0, Fax +49 721 4846-1019, Email info@pi.ws, www.pi.ws
Date: 25.03.2019
This document describes the following products:
P­611.1
Linear piezo positioning system
P-611.1S/.10
P­611.XZ / P­611.2
XZ and XYZ nanopositioner
P-611.2S/.20/.XZS/.XZ0
P­611.3
NanoCube® XYZ system
P-611.3S/.3SF/.3O/.3OF
P­611.Z
Piezo Z stage
P-611.ZS/.Z0
.1S/.10/.2S/.20/.XZS/.XZ0/.ZS/.Z0
= with LEMO connector(s)
.3S/.3SF/.3O/.3OF
= with D-sub connector
