Mounting the DL20 IC / DL21 IC system
Mounting the motor housing
The motor housing is supplied with six M6 threaded holes for mounting on the top frame.

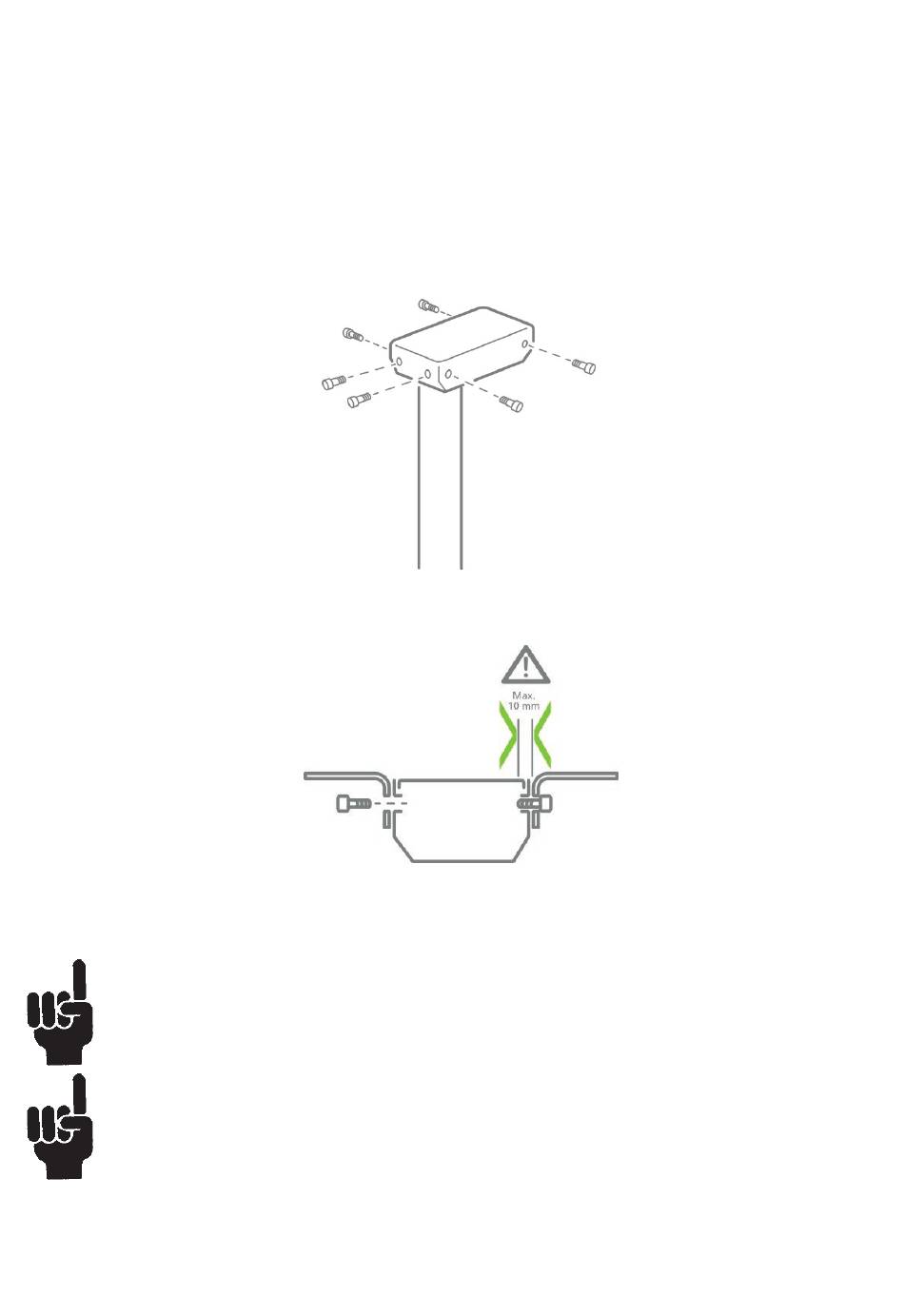

1. Mount motor housing on top frame using six M6 screws with the following specifications:
Quality: Min. grade 8.8
Length: Max. 10 mm (plus top frame thickness). The bolt must not go further than max. 10 mm into the motor housing
2. Fasten screws thoroughly (torque: max. 7.5 Nm).
Mounting bolts must not go further than max. 10 mm into the motor housing
Sufficient stability of the desk is only obtained if all six M6 screws are used for mounting the motor housing
on the top frame. Tests with fixing the motor housing using only four M6 screws have proved that the torsional
stability of the desk this is insufficient.
LINAK recommends using the DL IC DESKLINE
upwards.
Always use six M6 bolts for mounting the motor housing on the top frame
system in push applications with the motor housing mounted
®
