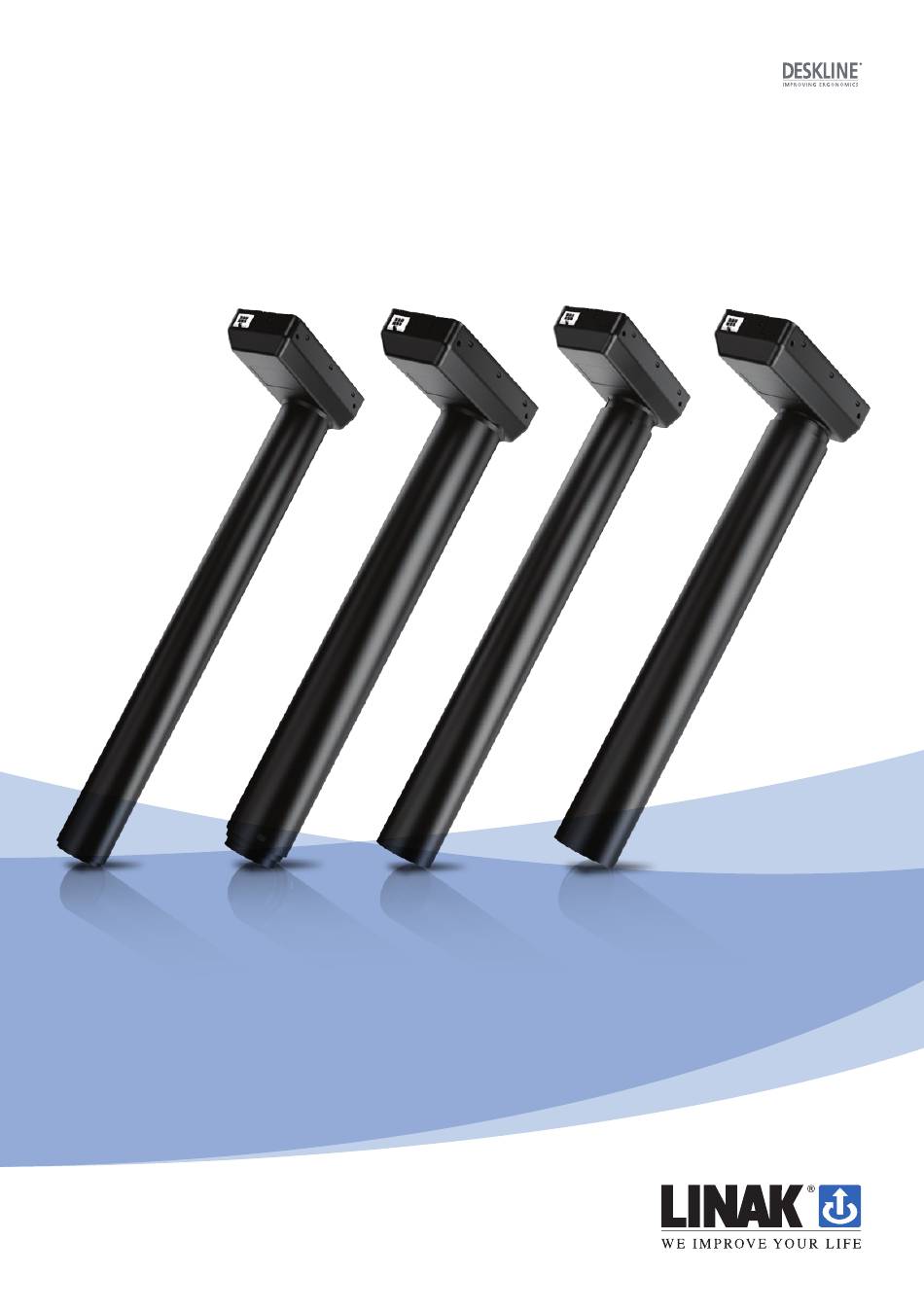

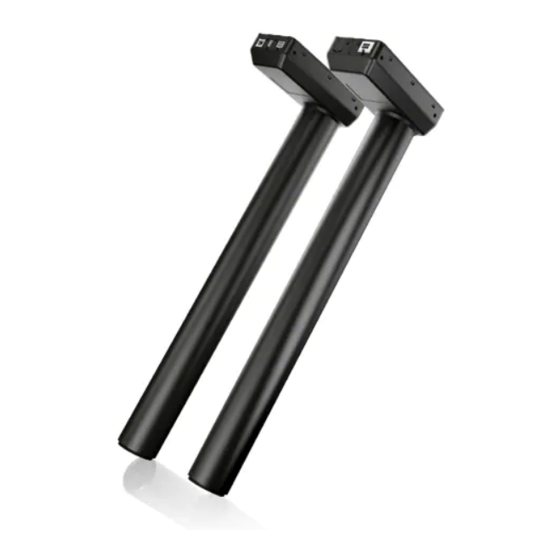

- Page 1 DL8, DL9, DL10 and DL11 system with CBD6S User manual LINAK.COM/DESKLINE Page 1 of 36...
-
Page 2: Table Of Contents
................ 21 ® Anti-collision ..........................22 Desk Sensor 1 ......................... 23 PIEZO ............................. 23 Anti-Collision (software) ......................24 Disposal of LINAK products ......................25 Labels ............................26 Drawing appendix ......................... 27 Addresses ............................36 Page 2 of 36... -
Page 3: Preface
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 4: Valid For
Valid for: This User Manual is valid for the following products: (See the first 3 - 5 characters on the label) Columns: DL8, DL9, DL10 or DL11 (1 - 3 (4)) Control boxes: CBD6S 200 W, CBD6S 300 W Controls: DPF1M/DPG1M/DPG1B (if memory function is required) DP1CS/DPT/DPF1C/DPG1C (if memory function and display is required) or DPA/DPB/DPH/DP1K/DPF1K/DPG1K (if only up/down is required) or DPF1D (if display is required). -
Page 5: Important Information
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. -
Page 6: Before Installation, Reinstallation Or Troubleshooting
• System connection. The individual parts must be connected before the control box is connected to the mains. See the User Manual for LINAK actuators, if necessary. During operation: • If the control box makes unusual noises or smells, switch off the mains voltage immediately. -
Page 7: Only For Eu Markets
Only for EU markets This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 8: Repairs
Products under warranty must also be returned to authorised LINAK service centres. Further information on DESKLINE warranty can be found on the LINAK website www.linak.com/warranty. Warning! If any of the DESKLINE products are opened, there will be a risk of subsequent malfunction. -
Page 9: Declaration Of Conformity
LINAK A/S Smedevænget 8 DK - 6430 Nordborg hereby declares under our sole responsibility that LINAK Actuator System for DESKLINE composed of: Control Box(s) CBD6Sa000b0A-c09, (Where -a: can be P, C or H, -b: can be 2, 3 or 4 and -c: can be 0 or 7) Linear Actuator(s) LA31: 31abcH-defff50S, (Where -a: can be 1, 3, 6 or 7;... -
Page 10: Misc. On The Deskline ® Dl
Do not bolt the legs to the floor so that free movement is prevented. This could cause serious damage to the legs in fault situations. Warranty This DESKLINE product is subject to warranty pursuant to the terms of LINAK DESKLINE Warranty Paper, available on the LINAK website www.linak.com/warranty. Maintenance Clean dust and dirt from the outside of the system at appropriate intervals and inspect for damage and breaks. -
Page 11: Service Of Double-Insulated Products
Service of double-insulated products: Class II A Class II or double insulated electrical appliance is one which has been designed in such a way that it does not require a safety electric earth connection (US: ground). The basic requirement is that no single failure can result in dangerous voltage becoming exposed so that it might cause an electric shock and that this is achieved without relying on an earthed metal casing. -
Page 12: Etl-Markering
ETL-marking Due to space limitations, the complete ETL-marking demands are not represented on the marking plates. The full ETL Recognized Component markings are shown here. C/N 120690 Conforms to UL962 Cert. to CSA Std. C22.2 No. 68-09 ETL Recognized Component mark for Canada and United States C/N 9901916 Conforms to UL962... -
Page 13: Description Of The Deskline ® System
Description of the DESKLINE system ® Each DESKLINE actuator/column is equipped with a motor and parallel/memory drive is ensured by means of software in the ® CBD6S that also takes account of an uneven load on the desk. Soft start and stop are also part of this software, which ensures a soft start and stop when adjusting the desk. -
Page 14: Installation
Tests with fixing the motor housing using only four M6 screws have proved that the torsional stability of the desk this is insufficient. Alternatively, use the Kick & Click™ top frame and avoid screws to get easy desk assembly. LINAK recommends using the DL8/DL9/DL10/DL11 DESKLINE system in push applications with the motor housing ®... -
Page 15: Mounting Guidelines For The Foot Part
Mounting guidelines for the foot part DL8 and DL9 The DL8/DL9 is supplied with 4 M6 threaded holes for the mounting of the foot. We advise you to fasten the foot by means of 4 pcs. M6 screws of a good quality (min. 8.8) and of a suitable length, which must not go further into the DL8/DL9 column than 20 mm. - Page 16 DL11 The DL11 bottom plate is supplied with four M6 and two M8 threaded holes. 1. Mount the feet on the column bottom using four M6 or two M8 screws with the following specifications: Quality: Min. grade 8.8 Length: Min. 10 mm (plus foot thickness) Max.
-
Page 17: Mounting The Tabletop
Mounting the tabletop The sound from the lifting column spreads as vibrations to the tabletop which amplifies the sound. This can, however, be reduced. 1. Place vibration/shock-absorbing material between tabletop and top frame. Page 17 of 36... -
Page 18: Placing The Monitor
Placing the monitor Placement of a monitor directly above the motor housing may cause malfunction of the monitor. Magnets inside the motor may interrupt the picture on the monitor depending on the distance and type of monitor. If this is the case, the problem may be solved by placing an iron plate/tube or another magnetic material, somewhat larger than the motor housing, between the motor and the tabletop. -
Page 19: Installation Of Cbd6S (Smps)
Installation of CBD6S (SMPS) Do not pack the CBD6S in heat insulating material. Place the CBD6S so it can emit heat through its surface to the surroundings. Mounting the CBD6S 1. Plug the mains cable into the CBD6S. 2. Place the mains cable in the groove for cable relief. 3. -
Page 20: Electric Connection Of The Dl8/Dl9/Dl10/Dl11 System
Electric connection of the DL8/DL9/DL10/DL11 system The control box must only be connected to the voltage stated on the label. It is important to ensure that the motor cables are fixed, but not tightened, near the control box and near the columns. Fix the cable to the tabletop using a clip observing the 30 mm minimum bending radius (R). -
Page 21: Initialisation Of The Deskline ® Parallel System
Initialisation of the DESKLINE parallel system ® Downward direction The DESKLINE system is initialised by pressing the down button once and holding it down until the lifting column runs into end stop. Release the button and press down again within 10 seconds. The desk will run further in and then run approx. 5 mm out again. -
Page 22: Anti-Collision
To a certain extent, this feature also increases the personal safety, but it does not comply with the legislation covering personal safety. The way to minimise the damage to a desk is fast detection of a collision with an object followed by reverse driving of the desk. LINAK offers various anti-collision solutions: ®... -
Page 23: Desk Sensor Tm 1
For optimised safety against squeezing and blocking on a desk, LINAK has developed a DL9 and DL11 columns with integrated sensor, called PIEZO. The option minimises the risk for damages on a desk caused by squeezing or blocking of obstacles in up and down direction. -
Page 24: Anti-Collision Tm (Software)
Anti-Collision (software) This function is an option for the standard CBD6S (SMPS) control box. Enabling the anti-collision To enable the anti-collision function a little plug called a dongle must be mounted in one of the 2 control ports. The function is only active when the dongle is mounted. -
Page 25: Disposal Of Linak Products
Disposal of LINAK products As LINAK customers often ask us how our products can be disposed of or scrapped we have prepared this guidance that enables a classifi cation to different waste fractions for recycling or combustion. Guidance We recommend that our products be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 26: Labels
Labels Labels for DL8 and DL9 Labels for DL10 and DL11 Label for CBD6S 300 W (SMPS) Label for CBD6S 200 W (SMPS) up to 4 channels Page 26 of 36... -
Page 27: Drawing Appendix
DRAWING APPENDIX All measurements are without powder coating. 1145 645 2 29.7 4xM6 4xM6 2xM6 Page 27 of 36... - Page 28 Standard DL9 1210 29.7 4xM6 4xM6 2xM6 Page 28 of 36...
- Page 29 Extended version DL9XL 1710 11.5 29.7 4xM6 4xM6 2xM6 Page 29 of 36...
- Page 30 DL10 Drawing No.: DL10_STANDARD Drawing No.: DL10_STANDARD 1145 645 2 32.53 4xM6 4xM6 2xM6 Page 30 of 36...
- Page 31 DL11 Combination S (Stroke length) B (Built-in length) O (Outer profile length) Version code [mm] [mm] [mm] Standard columns DL11xxxxx0635575 PIEZO DL11xxxxxE650560 BIFMA DL11xxxxxx665518 DL11xxxxxx965740 PLUS columns DL11xxxxPx650560 BIFMA DL11xxxxPx665518 DL11 built-in length, stroke length, and outer profile length (mm) Page 31 of 36...
- Page 32 DL11 Bottom plate Motor housing DL11 dimensions (mm) Page 32 of 36...
- Page 33 DL11 Standard Combination code Type DL11xxxxxxxxxxxx Standard Socket combination Profile designs Standard PLUS without trim rings PLUS with trim rings Page 33 of 36...
- Page 34 CBD6S 200 W (SMPS) CBD6S 300 W (SMPS) up to 4 channels Page 34 of 36...
- Page 35 LINAK APPLICATION POLICY The purpose of the application policy is to define areas of responsibilities in relation to applying a LINAK product defined as hardware, software, technical advice, etc. related to an existing or a new customer application. LINAK products, as defined above, are applicable for a wide range of applications within the Medical, Furniture, Desk and Industry areas.
-
Page 36: Addresses
The user is responsible for determining the suitabil- Fax: +86 755 8610 6990 Tel: +64 9580 2071 ity of LINAK products for a specific application. All sales are subject to the ‘Standard Terms of Sale and Fax: +64 9580 2072 www.linak.cn...
