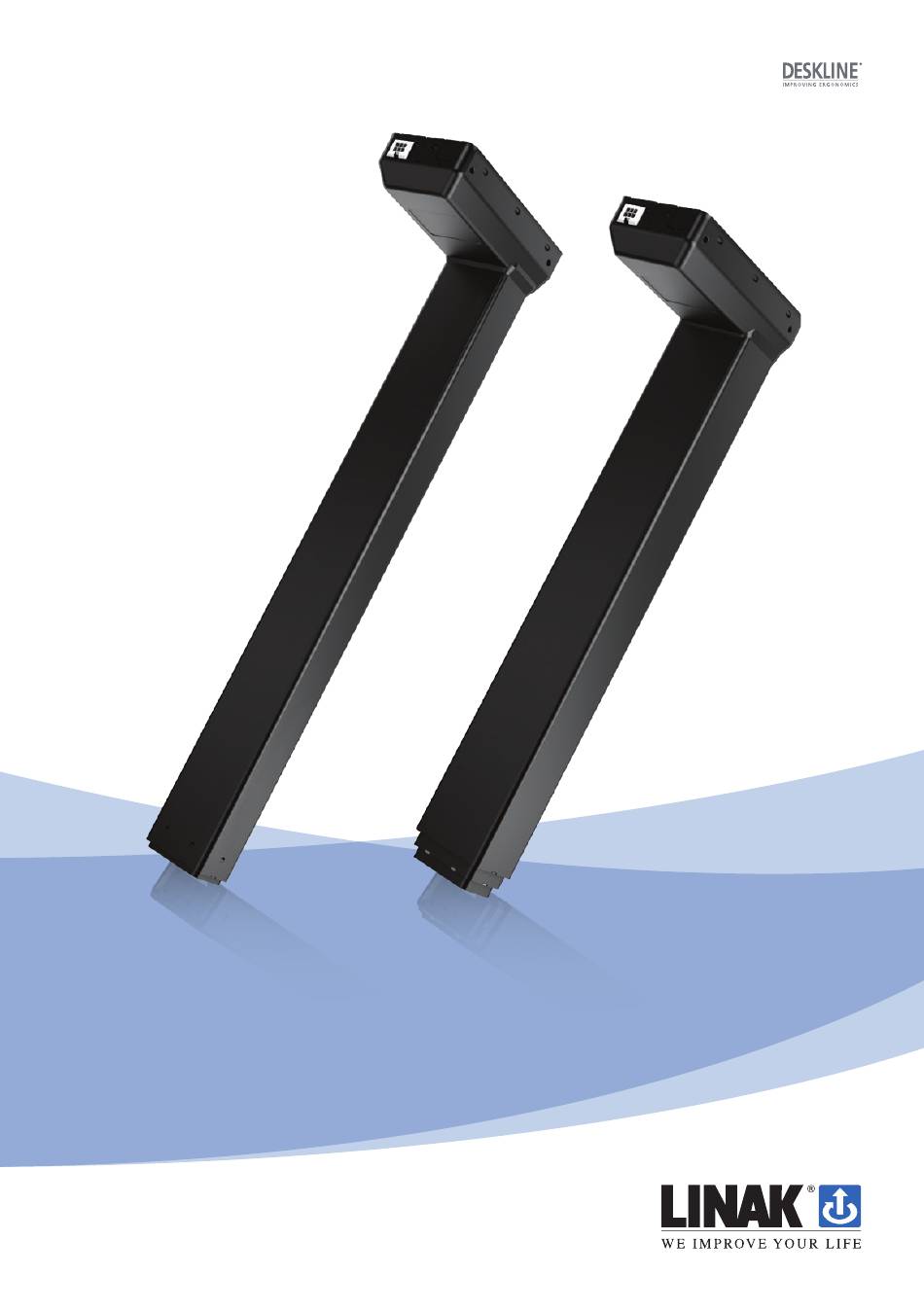

- Page 1 DL15/DL16 system with CBD6S User manual LINAK.COM/DESKLINE Page 1 of 29...
-
Page 2: Table Of Contents
Electric connection of the DL15/DL16 system ................. 18 Initialisation of the DESKLINE DL15/DL16 parallel system ............ 19 ® Accessories ........................... 20 Disposal of LINAK products ......................21 Labels ............................22 Drawing appendix ........................23 Addresses ............................29 Page 2 of 29... -
Page 3: Preface
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 4: Valid For
Valid for: This User Manual is valid for the following products: (See the first 3 - 5 characters on the label) Columns: DL15, DL16 Control boxes: CBD6S 200W, CBD6S 300W Controls: DP1U/DPF1M (if memory function is required) DP1C/WDPL/DPT/DPF1C/DP1CS (if memory function and display are required) DPA/DPB/DP1K/DP1V/DPF1K (if only up/down is required) or DPF1D (if display is required) Page 4 of 29... -
Page 5: Important Information
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. -
Page 6: Before Installation, Reinstallation Or Troubleshooting
• System connection. The individual parts must be connected before the control box is connected to the mains. See the User Manual for LINAK actuators, if necessary. During operation • If the control box makes unusual noise or smells, switch off the mains voltage immediately. -
Page 7: Only For Eu Markets
Only for EU markets This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. -
Page 8: Repairs
Products under warranty must also be returned to authorised LINAK service centres. Further information on DESKLINE warranty can be found on the LINAK website www.linak.com/warranty. Warning! If any of the DESKLINE products are opened, there will be a risk of subsequent malfunction. -
Page 9: Declaration Of Confirmity
DECLARATION OF CONFORMITY LINAK A/S Smedevænget 8 DK - 6430 Nordborg hereby declares that LINAK Actuator System composed of: Control Box(s) CBD6SP00020A-309 CBD6S*000*0A-709 (The ‘*’ in the product description can either be a character or a number, thereby defining the variation of the product) -
Page 10: Misc. On The Deskline ® Dl15/Dl16 System
Do not bolt the legs to the floor so that free movement is prevented. This could cause serious damage to the legs in error situations. Warranty This DESKLINE product is subject to warranty pursuant to the terms of LINAK DESKLINE Warranty Paper, available on the LINAK website www.linak.com/warranty. Maintenance Clean dust and dirt on the outside of the system at appropriate intervals and inspect them for damage and breaks. -
Page 11: Etl-Markering
Cert. to CSA Std. C22.2 No. 68-09 ETL Recognized Component mark for Canada and United States Product produced at LINAK US Inc C/N 4008005 Conforms to UL962 Cert. to CSA Std. C22.2 No. 68-09 ETL Recognized Component mark for Canada and United States... -
Page 12: Description Of The Deskline ® System
Description of the DESKLINE system ® Each DESKLINE actuator/column is equipped with a motor and parallel/memory drive is ensured by means of software in the ® CBD6S that also takes account of an oblique load on the desk. Soft start and stop are also part of this software, which ensures a soft start and stop when adjusting the desk. -
Page 13: Mounting Guidelines For The Deskline ® Dl15/Dl16 System
Mounting guidelines for the DESKLINE DL15/DL16 system ® The lifting units are normally mounted with the motor housings upwards and pointing towards each other. The steel motor housing is supplied with 6 pcs. of M6 threaded holes meant for mounting on the desk frame. The motor housing is supplied with 6 pcs. -
Page 14: Mounting Guidelines For The Dl15 (Foot Part)
Mounting guidelines for the DL15 (foot part) The DL15 is supplied with 4 threaded holes M6 for mounting of the foot. We advise you to fasten the foot by means of 4 screws M6 of a good quality (min. 8.8) and of a suitable length. M6 screws must not go further than 20 mm into the DL15 column. -
Page 15: Mounting Of The Desk (Misc.)
Mounting of the desk (misc.) A suitable desk height in the lowest position can be obtained by mounting the lifting unit on a 6-8 mm bottom plate by means of 4 pcs. of M6 countersinked screws. We recommend you to use screws of min. quality 8.8. The thrust moment must not exceed 10 Nm in the bottom plate thread. - Page 16 Approx. 5 mm Example of how to mount a 2 parallel DESKLINE DL15/DL16 system ® Placement of a monitor directly above the motor housing may cause malfunction of the monitor. Magnets inside the motor may interrupt the picture on the monitor depending on the distance and type of monitor. If this is the case, the problem may be solved by placing an iron plate/tube or another magnetic material, somewhat larger than the motor housing, between the motor and the desktop.
-
Page 17: Installation Of Cbd6S (Smps)
Installation of CBD6S (SMPS) Do not pack the CBD6S in heat insulating material. Place the CBD6S so it can emit heat through its surface to the surroundings. Mounting the CBD6S 1. Plug the mains cable into the CBD6S. 2. Place the mains cable in the groove for cable relief. 3. -
Page 18: Electric Connection Of The Dl15/Dl16 System
Electric connection of the DL15/DL16 system The control box must only be connected to the voltage stated on the label. It is important to ensure that the motor cables are fixed, but not tightened, near the control box and near the columns. Fix the cable to the tabletop using a clip observing the 30 mm minimum bending radius (R). -
Page 19: Initialisation Of The Deskline Dl15/Dl16 Parallel System
Initialisation of the DESKLINE DL15/DL16 parallel system The DESKLINE system is intialised by pressing the down button once or twice and holding it down until the DL15/DL16 runs into end stop. It will then automatically run approx. 3 mm out again and hereafter slowly run in again. Do not release the down button until the movement has stopped completely. -
Page 20: Accessories
Please contact your nearest LINAK dealer for information. Warning! By unauthorised opening of the system there is a risk that it may malfunction at a later date. Spare parts Please contact your nearest LINAK dealer for information on spare parts. Page 20 of 29... -
Page 21: Disposal Of Linak Products
Disposal of LINAK products As LINAK customers often ask us how our products can be disposed of or scrapped we have prepared this guidance that enables a classification to different waste fractions for recycling or combustion. Guidance We recommend our products to be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 22: Labels
Labels Label for DL15 Label for DL16 Label for CBD6S 300W (SMPS) Label for CBD6S 200W (SMPS) up to 4 channels Page 22 of 29... -
Page 23: Drawing Appendix
DRAWING APPENDIX Drawing No.: DL15_STANDARD Drawing No.: DL15_STANDARD DL15 lifting unit 1145 3 645 2 4xM6 4xM6 2xM6 Page 23 of 29... - Page 24 Drawing No.: STANDARD_DL16 Drawing No.: STANDARD_DL16 DL16 lifting unit 1210 3 560 2 4xM6 4xM6 2xM6 Page 24 of 29...
- Page 25 Drawing No.: DL16XL_STANDARD Drawing No.: DL16XL_STANDARD DL16 XL 1710 730 5 4xM6 4xM6 2xM6 Page 25 of 29...
- Page 26 CBD6S 200W (SMPS) Page 26 of 29...
- Page 27 CBD6S 300W (SMPS) up to 4 channels Page 27 of 29...
- Page 28 LINAK APPLICATION POLICY The purpose of the application policy is to define areas of responsibilities in relation to applying a LINAK product defined as hardware, software, technical advice, etc. related to an existing or a new customer application. LINAK products as defined above are applicable for a wide range of applications within the Medical, Furniture, Desk and Industry areas.
-
Page 29: Addresses
The user is responsible for determining the suitabil- Tel: +64 9580 2071 Fax: +86 755 8610 6990 ity of LINAK products for a specific application. All sales are subject to the ‘Standard Terms of Sale and Fax: +64 9580 2072 www.linak.cn...
