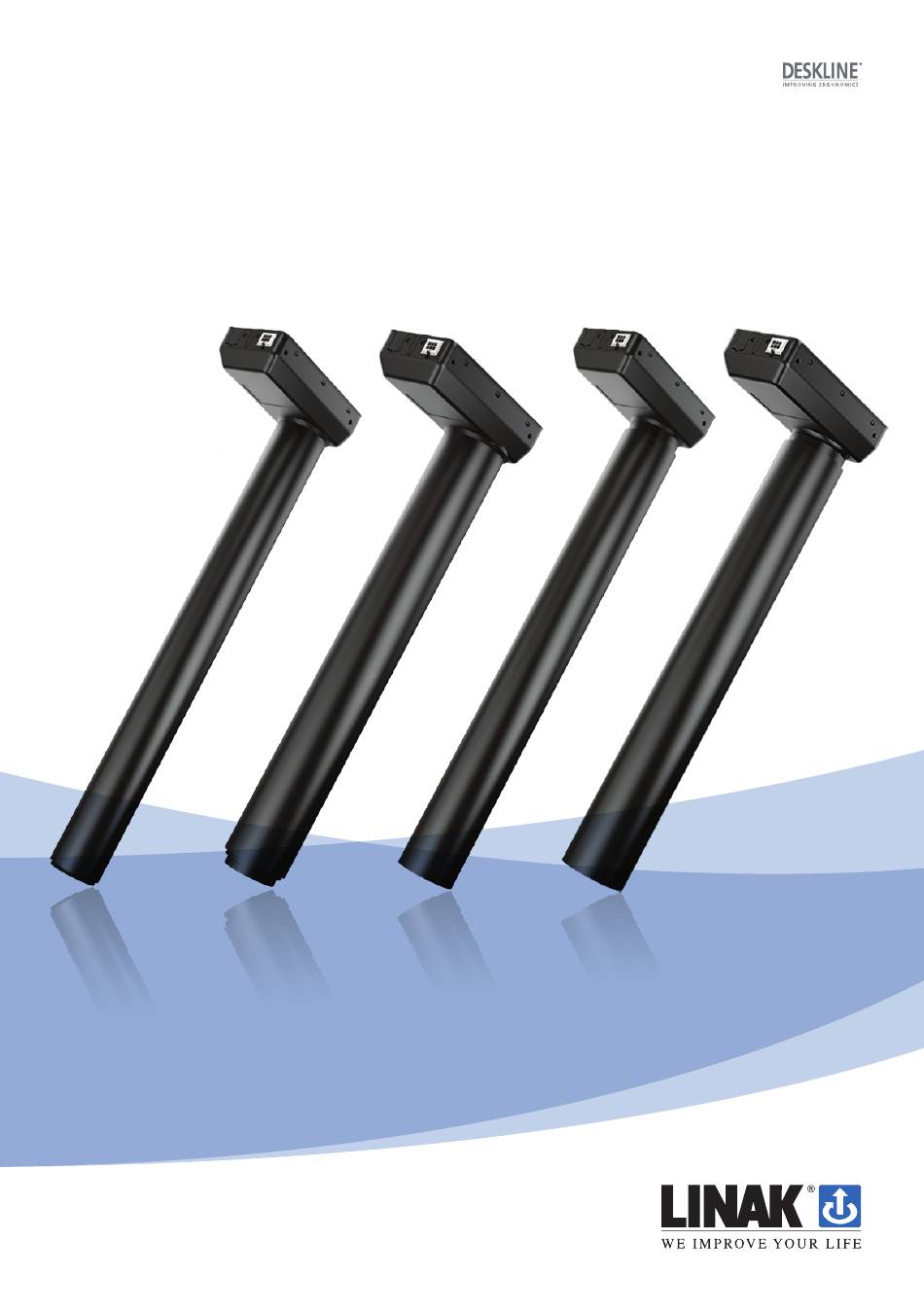

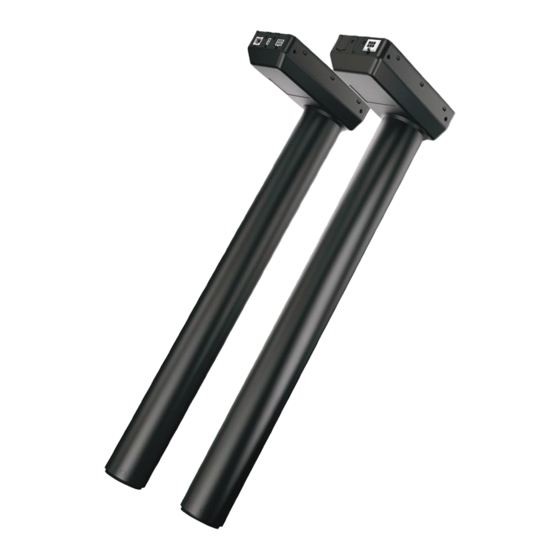

- Page 1 DL8 IC, DL9 IC, DL10 IC and DL11 IC system User manual LINAK.COM/DESKLINE Page 1 of 28...
-
Page 2: Table Of Contents
Mounting the feet ........................15 Mounting the tabletop ....................... 18 Placing the monitor ........................18 Connection ..........................19 Accessories and repair ........................ 20 Disposal of LINAK products ......................21 Labels ............................22 Drawing appendix ......................... 23 Addresses ............................30 Page 2 of 28... -
Page 3: Preface
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 4: Important Information
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. -
Page 5: Safety Issues
Furthermore take care about the connecting wires from the power supply to the DL8 IC / DL9 IC / DL10 IC / DL11 IC system, don’t damage this by overrun. Assure free space for movement of application in both directions to avoid blockade. -
Page 6: Before Installation, Reinstallation Or Troubleshooting
• System connection. The individual parts must be connected before the control box is connected to the mains. See the User Manual for LINAK actuators, if necessary. During operation • If the column makes unusual noise or smells, switch off the mains voltage immediately. -
Page 7: Only For Eu Markets
Only for EU markets This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 8: Repairs
Repairs In order to avoid the risk of malfunction, all DESKLINE repairs must only be carried out by authorised LINAK workshops or ® repairers, as special tools must be used and special gaskets must be fitted. Lifting units under warranty must also be returned to authorised LINAK workshops. -
Page 9: Declaration Of Confirmity
Declaration of confirmity DECLARATION OF CONFORMITY LINAK A/S Smedevænget 8 DK - 6430 Nordborg hereby declares that LINAK Actuator System composed of: Lifting Column with integrated control, DLIC Master: DLXXXXXXMXXXXXX or DLXXXXXXMXXXXXX Passive Actuators, DLIC Slave DLXXXXXXSXXXXXX or DLXXXXXXSXXXXXX Control panel... - Page 10 LINAK A/S Smedevænget 8 DK - 6430 Nordborg hereby declares that LINAK Switch Mode Power Supply, type SMPS006 complies with the EMC Directive: 2014/30/EU according to following standards: EN 61000-6-1:2007, EN 61000-6-3:2007 complies with Low Voltage Directive 2014/35/EU according to the standard:...
-
Page 11: Misc. On The Deskline ® Dl8 Ic / Dl9 Ic / Dl10 Ic / Dl11 Ic System
Misc. on the DESKLINE DL8 IC / DL9 IC / DL10 IC / DL11 IC system ® This system is a DESKLINE system developed for desks and for indoor use in offices. Do not use it in industrial kitchens or in other enviroments that have to be cleaned with aggressive detergents. -
Page 12: Etl-Marking
ETL-marking Due to space limitations, the complete ETL-marking demands are not represented on the marking plates. The full ETL Recognized Component markings are shown here. C/N 120690 Conforms to UL962 Cert. to CSA Std. C22.2 No. 68-09 ETL Recognized Component mark for Canada and United States C/N 9901916 Conforms to UL962... -
Page 13: Description Of The Deskline ® Dl8 Ic / Dl9 Ic / Dl10 Ic / Dl11 Ic System
Description of the DESKLINE DL8 IC / DL9 IC / DL10 IC / DL11 IC system ® Application of the DESKLINE DL8 IC / DL9 IC / DL10 IC / DL11 IC system: ® Irrespective of the load the duty cycle 10% ~ max. 2 min. at continuous use stated in the data sheets, must NOT be exceeded as this will result in an overheating of the motor and control box. -
Page 14: Installation
Installation Mounting guidelines for the DESKLINE DL8 IC / DL9 IC / DL10 IC / DL11 IC system The motor housing is supplied with six M6 threaded holes for mounting on the top frame. 1. Mount motor housing on top frame using six M6 screws with the following specifications: Quality: Min. -
Page 15: Mounting Guidelines For The Dl8 Ic / Dl9 Ic / Dl10 Ic / Dl11 Ic (Foot Part)
Mounting guidelines for the DL8 IC / DL9 IC / DL10 IC / DL11 IC (foot part) DL8 IC / DL9 IC The DL8 IC / DL9 IC bottom plate is supplied with four M6 threaded holes. 1. Mount column bottom on desk feet using four M6 screws with the following specifications: Quality: Min. - Page 16 DL10 IC The DL10 IC bottom plate is supplied with four M6 threaded holes. 1. Mount column bottom on desk feet using four M6 screws with the following specifications: Quality: Min. grade 8.8 Length: Min. 10 mm (plus foot thickness); Max.
- Page 17 DL11 IC The DL11 IC bottom plate is supplied with four M6 and two M8 threaded holes. 1. Mount column bottom on desk feet using four M6 or two M8 screws with the following specifications: Quality: Min. grade 8.8 Length: Min. 10 mm (plus foot thickness); Max.
-
Page 18: Mounting The Tabletop
Mounting the tabletop The sound from the lifting column spreads as vibrations to the tabletop which amplifies the sound. This can, however, be reduced. 1. Place vibration / shock-absorbing material between tabletop and top frame. Assembled desk Placing the monitor Placement of a monitor directly above the motor housing may cause malfunction of the monitor. -
Page 19: Connection
Connection: Items required: Motor cable SMPS + cable Desk panel (example) 1. Connect the master and follower columns using the motor cable. 2. Mount the desk panel onto the desk and connect it to the master column. 3. Connect the SMPS to the master column and to the mains. Page 19 of 28... -
Page 20: Accessories And Repair
Accessories Please contact your nearest LINAK dealer for information. Repairs Systems should only be repaired by an authorised LINAK service centre or engineer. Systems to be repaired under warranty must be sent to an authorised LINAK service centre. Warning! By unauthorised opening of the system there is a risk that it may malfunction at a later date. -
Page 21: Disposal Of Linak Products
Disposal of LINAK products As LINAK customers often ask us how our products can be disposed of or scrapped we have prepared this guidance that enables a classifi cation to different waste fractions for recycling or combustion. Guidance We recommend that our products be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 22: Labels
Labels Label for DL8 IC Label for DL9 IC Label for DL10 IC Label for DL11 IC Label for SMPS001 Label for SMPS002 Label for SMPS006 Page 22 of 28... -
Page 23: Drawing Appendix
DRAWING APPENDIX DL8 IC M (Master) DL8 IC S (Follower) Page 23 of 28... - Page 24 DL9 IC M (Master) DL9 IC S (Follower) Page 24 of 28...
- Page 25 DL10 IC M (Master) Drawing No.: DL10_STANDARD Drawing No.: DL10_STANDARD 1145 645 2 4xM6 32.53 4xM6 2xM6 DL10 IC S (Follower) Page 25 of 28...
- Page 26 Drawing No.: DL11IC_MASTER_560 Drawing No.: DL11IC_MASTER_560 DL11 IC M (Master) 1210 32.53 4xM6 4xM6 2xM8 2xM6 DL11 IC S (Follower) Drawing No.: DRW0001 Drawing No.: DRW0001 1210 32.53 4xM6 4xM6 2xM8 2xM6 Page 26 of 28...
- Page 27 SMPS001 SMPS002 Page 27 of 28...
- Page 28 SMPS006 Page 28 of 28...
- Page 29 LINAK customer using any LINAK product. LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question.
-
Page 30: Addresses
® without prior notice. LINAK cannot guarantee product availability and reserves the right to discontinue the sale of any product. The user is responsible for determining the suitability of LINAK products for a specific application. All sales are subject to the ‘Standard Terms of Sale and Delivery’, available on LINAK websites.
