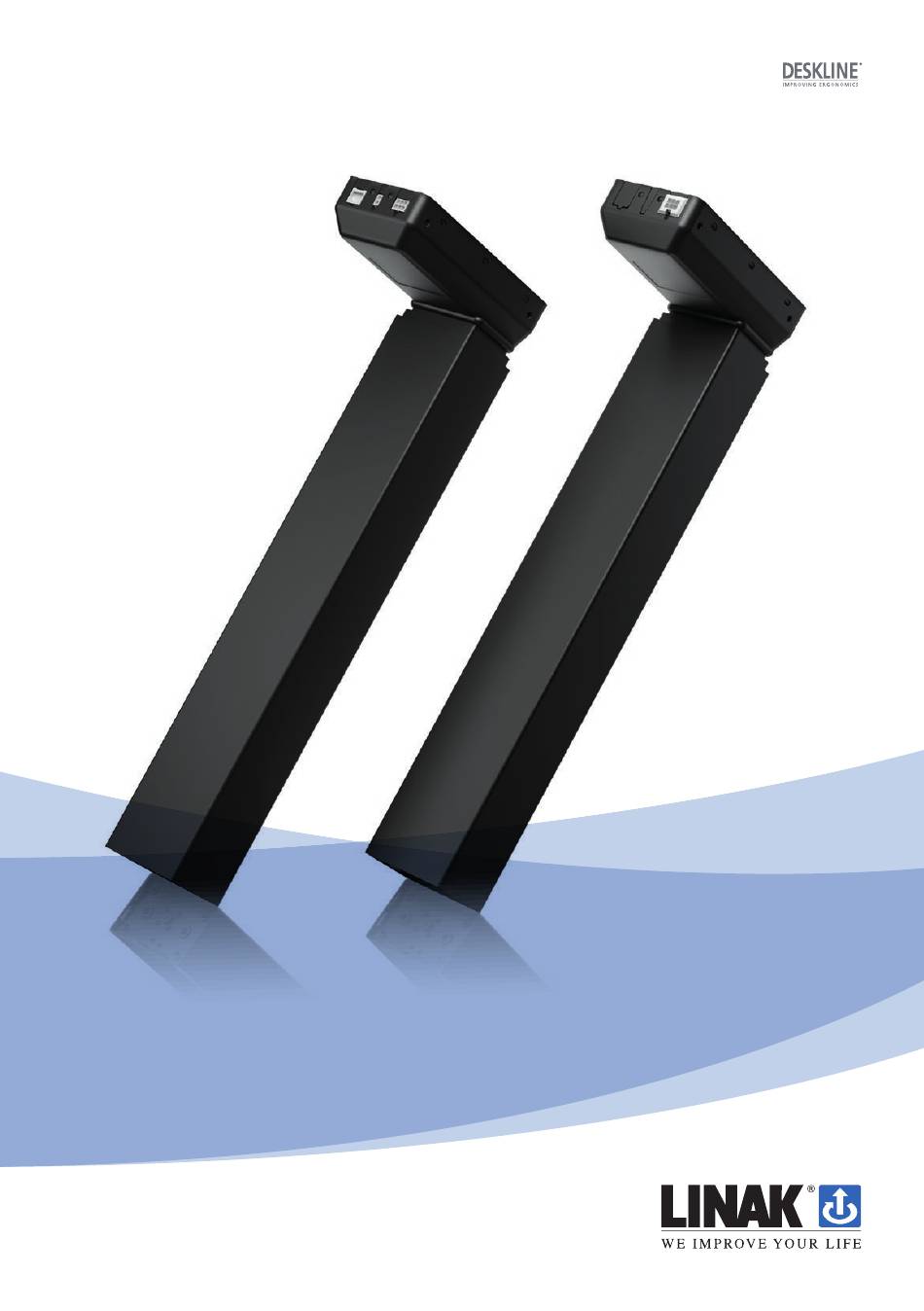

- Page 1 DL20 IC/DL21 IC system User manual LINAK.COM/DESKLINE Page 1 of 32...
-
Page 2: Table Of Contents
Mount the motor housing ....................... 16 Mounting the feet ........................17 Mounting the tabletop ......................18 Placing the monitor ........................18 Connection ..........................19 Accessories ..........................20 Disposal of LINAK products ...................... 21 Labels............................22 Drawing appendix ........................23 Addresses ............................ 32 Page 2 of 32... -
Page 3: Preface
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-user product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 4: Valid For
Valid for: This User Manual is valid for the following products: (See the first 3 - 5 characters on the label) Columns: 2 lifting columns DL20 IC / DL21 IC Power supply: SMPS001, SMPS002 or SMPS006 Controls: DPA / DPB / DPH / DP1K / DPF1K / DPG1K Page 4 of 32... -
Page 5: Important Information
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. -
Page 6: Safety Issues
Furthermore take care about the connecting wires from the power supply to the DL20 IC / DL21 IC system, don’t damage this by overrun. Assure free space for movement of the application in both directions to avoid blockades. The appliance is only to be used with the power supply unit provided with the appliance. -
Page 7: Before Installation, Reinstallation Or Troubleshooting
• System connection. The individual parts must be connected before connecting the control box to the mains. See the User Manual for LINAK actuators, if necessary. During operation • If the control box makes unusual noise or smells, switch off the mains voltage immediately. -
Page 8: Only For Eu Markets
Only for EU markets This appliance can be used by children aged from aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 9: Repairs
Products under warranty must also be returned to authorised LINAK service centres. Further information on DESKLINE warranty can be found on the LINAK website www.linak.com/warranty. Warning! If any of the DESKLINE products are opened, there will be a risk of subsequent malfunction. -
Page 10: Declaration Of Conformity
DECLARATION OF CONFORMITY LINAK A/S Smedevænget 8 DK - 6430 Nordborg hereby declares that LINAK Actuator System composed of: Lifting Column with integrated control, DLIC Master: DLXXXXXXMXXXXXX or DLXXXXXXMXXXXXX Passive Actuators, DLIC Slave DLXXXXXXSXXXXXX or DLXXXXXXSXXXXXX Control panel DP1C, DP1K, DPT, DPB, DPF, DP1L, DP1V, DPA, DPH, DP1U,... - Page 11 LINAK A/S Smedevænget 8 DK - 6430 Nordborg hereby declares that LINAK Switch Mode Power Supply, type SMPS006 complies with the EMC Directive: 2014/30/EU according to following standards: EN 61000-6-1:2007, EN 61000-6-3:2007 complies with Low Voltage Directive 2014/35/EU according to the standard:...
-
Page 12: Misc. On The Deskline ® Dl20 Ic/Dl21 Ic System
Do not bolt the legs to the floor so that free movement is prevented. This could cause serious damage to the legs in fault situations. Warranty This DESKLINE product is subject to warranty pursuant to the terms of LINAK DESKLINE Warranty Paper, available on the LINAK website www.linak.com/warranty. Maintenance Clean dust and dirt from the outside of the system at appropriate intervals and inspect for damage and breaks. -
Page 13: Service Of Double-Insulated Products
Service of double-insulated products: Class II A Class II or double insulated electrical appliance is one which has been designed in such a way that it does not require a safety electric earth connection (US: ground). The basic requirement is that no single failure can result in dangerous voltage becoming exposed so that it might cause an electric shock and that this is achieved without relying on an earthed metal casing. -
Page 14: Etl-Marking
ETL-marking Due to space limitations, the complete ETL-marking demands are not represented on the marking plates. The full ETL Recognized Component markings are shown here. C/N 120690 Conforms to UL962 Cert. to CSA Std. C22.2 No. 68-09 ETL Recognized Component mark for Canada and United States C/N 9901916 Conforms to UL962... -
Page 15: Description Of The Deskline ® Dl20 Ic/Dl21 Ic System

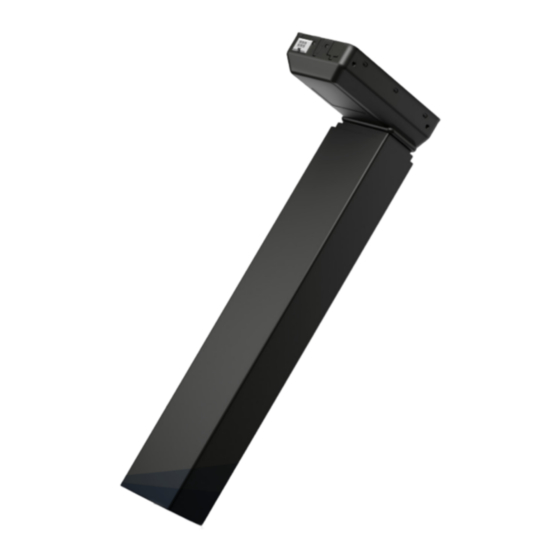

Description of the DESKLINE DL20 IC / DL21 IC system ® Each DESKLINE DL20 IC/DL21 IC lifting unit is equipped with a motor, and parallel/memory drive is ensured by means of ® software in the master column that also takes account of oblique load on the desk. Application of the DESKLINE DL20 IC/DL21 IC: ®... -
Page 16: Installation
Tests with fixing the motor housing using only four M6 screws have proved that the torsional stability of the desk this is insufficient. LINAK recommends using the DL IC DESKLINE system in push applications with the motor housing mounted ®... -
Page 17: Mounting The Feet
Mounting the feet The DL20 IC / DL21 IC bottom plate is supplied with four M6 and two M8 threaded holes. 1. Mount column bottom on desk feet using four M6 or two M8 screws with the following specifications: Quality: Min. grade 8.8 Length: Min. -
Page 18: Mounting The Tabletop
Mounting of the tabletop The sound from the lifting column spreads as vibrations to the tabletop which amplifies the sound. This can, however, be reduced. 1. Place vibration/shock-absorbing material between tabletop and top frame. Assembled desk Placing the monitor Placement of a monitor directly above the motor housing may cause malfunction of the monitor. Magnets inside the motor may interrupt the picture on the monitor depending on distance and type of monitor. -
Page 19: Connection
Connection: Items required: Motor cable Desk panel (example) SMPS + cable 1. Connect the master and follower columns using the motor cable. 2. Mount the desk panel onto the desk and connect it to the master column. 3. Connect the SMPS to the master column and to the mains. Page 19 of 32... -
Page 20: Accessories
Please contact your nearest LINAK contract, distributor or subsidiary. Warning! By unauthorised opening of the system there is a risk that it may malfunction at a later date. Spare parts Please contact your nearest LINAK contact for information on spare parts. Page 20 of 32... -
Page 21: Disposal Of Linak Products
Disposal of LINAK product As LINAK customers often ask us how our products can be disposed or scrapped we have prepared this guide that enables a classification to different waste fractions for recycling or combustion. Guide We recommend our products to be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 22: Labels
Labels Label for DL20 IC Label for DL21 IC Label for SMPS006 Label for SMPS001 Label for SMPS002 Page 22 of 32... -
Page 23: Drawing Appendix
DRAWING APPENDIX DL20 IC All measurements are without powder coating. Version Combination code B (Built-in length) S (Stroke length) O (Outer profile length) [mm] [mm] [mm] DL20xxxxxx500645 DL20 IC built-in length, stroke length, and outer profile length (mm) Page 23 of 32... - Page 24 DL20 IC motor housing and profile dimensions (mm) Motor housing Bottom plate DL20 IC dimensions (mm) Page 24 of 32...
- Page 25 DL20 IC Bracket options Combination code Bench left Bench right DL20xxLxxSxxxxxx DL20xxRxxMxxxxxx Bracket options (dimensions in mm) Sockets IC Master IC Follower Combination code Type DL20xxxxxMxxxxxx IC Master DL20xxxxxSxxxxxx IC Follower Socket combination Page 25 of 32...
- Page 26 Profile designs Without trim ring With trim ring Page 26 of 32...
- Page 27 DL21 IC All measurements are without powder coating. Version Combination code B (Built-in length) S (Stroke length) O (Outer profile length) [mm] [mm] [mm] DL21xxxxxx650560 BIFMA DL21xxxxxx665518 DL21 built-in length, stroke length, and outer profile length (mm) Page 27 of 32...
- Page 28 DL21 IC motor housing and profile dimensions (mm) Motor housing Bottom plate DL21 IC dimensions (mm) Page 28 of 32...
- Page 29 DL21 IC Bracket options Combination code Bench left Bench right DL21xxLxxSxxxxxx DL21xxRxxMxxxxxx Bracket options (dimensions in mm) Sockets IC Master IC Follower Combination code Type DL21xxxxxMxxxxxx IC Master DL21xxxxxSxxxxxx IC Follower Socket combination Page 29 of 32...
- Page 30 Profile designs Without trim rings With trim rings Page 30 of 32...
- Page 31 LINAK APPLICATION POLICY The purpose of the application policy is to define areas of responsibilities in relation to applying a LINAK product defined as hardware, software, technical advice, etc. related to an existing or a new customer application. LINAK products, as defined above, are applicable for a wide range of applications within the Medical, Furniture, Desk and Industry areas.
-
Page 32: Addresses
The user is responsible for determining the suitabil- Tel: +64 9580 2071 Fax: +86 755 8610 6990 ity of LINAK products for a specific application. All sales are subject to the ‘Standard Terms of Sale and Fax: +64 9580 2072 www.linak.cn...
