- Page 1 DL8IC, DL9IC, DL10IC and DL11IC system User manual LINAK.COM /DESKLINE...
-
Page 2: Table Of Contents
® Description of the DESKLINE system ................... 13 Mounting guidelines for the DL8IC/DL9IC/DL10IC/DL11IC (motor housing) ........ 14 Mounting guidelines for the DL8IC/DL9IC (foot part) ..............14 Mounting guidelines for the DL10IC (foot part)................14 Mounting guidelines for the DL11IC (foot part)................15 PIEZO : description of the feature ..................... -
Page 3: Preface
LINAK electronics. It is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 4: Important Information
Important information ® Important information on LINAK products can be found under the following headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. - Page 5 Furthermore take care about the connecting wires from the power supply to the DL8IC/DL9IC/DL10IC/DL11IC system, don’t damage this by overrun. Assure free space for movement of application in both directions to avoid blockade. The appliance is only to be used with the power supply unit provided with the appliance.
-
Page 6: Safety Issues
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:... -
Page 7: Before Installation, Reinstallation Or Troubleshooting
• Make sure that the voltage of the control box is correct before the system is connected to the mains. • System connection. The individual parts must be connected before the control box is connected to the mains. See the User Manual for LINAK actuators, if necessary. During operation •... -
Page 8: Only For Non Eu Markets
Only for Non EU markets Persons who do not have the necessary experience or knowledge of the product/products must not use the product/products. Besides, persons with reduced physical, sensory or mental abilities must not use the product/ products, unless they are under surveillance or they have been thoroughly instructed in the use of the apparatus by a person who is responsible for the safety of these persons. -
Page 9: Informations Importantes
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Informations importantes ® Les informations importantes sur les produits LINAK peuvent être trouvées dans les rubriques suivantes: Attention! Le non respect de ces instructions peut entraî... -
Page 10: Seulement Pour Les Marchés Au Sein De L´ Ue
® In order to avoid the risk of malfunction, all DESKLINE repairs must only be carried out by authorised LINAK workshops or repairers, as special tools must be used and special gaskets must be fitted. Lifting units under warranty must also be returned to authorised LINAK workshops. -
Page 11: Declaration Of Incorporation Of Partly Completed Machinery
DECLARATION OF INCORPORATION OF PARTLY COMPLETED MACHINERY LINAK A/S Smedevæ nget 8 DK - 6430 Nordborg ® Herewith declares that LINAK DESKLINE products as characterized by the following models and types: Control Boxes CBD6S Linear Actuators DB5, DB6, DB7, DB9, DB12, DB14, DB16, LA23, LA31... -
Page 12: Misc. On The Deskline Dl8Ic/Dl9Ic/Dl10Ic/Dl11Ic System
® Misc. on the DESKLINE DL8IC/DL9IC/DL10IC/DL11IC system This system is a DESKLINE system developed for desks and for indoor use in offices. Do not use it in industrial kitchens or in other enviroments that have to be cleaned with aggressive detergents. -
Page 13: Description Of The Deskline

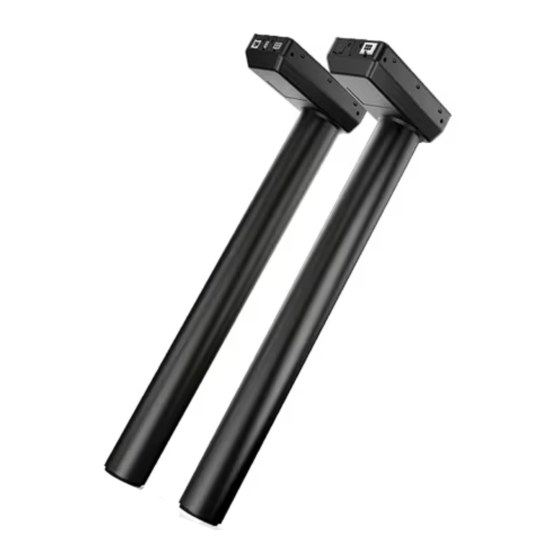

A typically DL IC system consists of: • 2 lifting columns DL8IC, DL9IC, DL10IC or DL11IC (1 - 3 (4)) • Power supply SMPS001, SMPS002 or SMPS006... - Page 14 • Desk panel DPA, DPB, DPH, DP1K, DPF1K, DPG1K, DPG1M • Exchangeable cables...
-
Page 15: Mounting Guidelines For The Dl8Ic/Dl9Ic/Dl10Ic/Dl11Ic (Motor Housing)
® LINAK recommends that the DESKLINE DL8IC/DL9IC/DL10IC/DL11IC system should be used in push applications with the motor housing mounted upwards. It is recommended to use all 6 M6 threaded holes to mount the desk frame. The values for the bending moments of the lifting units are only valid if the desk frame is mounted in this way. -
Page 16: Mounting Guidelines For The Dl10Ic (Foot Part)
Mounting guidelines for the DL8 and DL9 (foot part) The DL8IC/DL9IC is supplied with 4 M6 threaded holes for the mounting of the foot. We advise you to fasten the foot by means of 4 pcs. M6 screws of a good quality (min. 8.8) and of a suitable length, which must not go further into the DL8IC/DL9IC column than 20 mm. -
Page 17: Mounting Guidelines For The Dl11Ic (Foot Part)
Connect the master and slave columns by using the motor cable. Then mount the chosen desk panel on the desk and connect it to the DL8IC/DL9IC/DL10IC/DL11IC master. Finally, connect the chosen SMPS to the DL8IC/DL9IC/DL10IC/DL11IC master and to the mains. - Page 19 ® (Example of how to mount a 2 parallel DESKLINE DL8IC/DL9IC/DL10IC/DL11IC system) To avoid damage of the lifting unit there must be min. 1 mm space between the end of the screw for the mounting bracket and the surface of the lifting unit (see figure 1). The use of any longer screws will come into contact with the inner parts.
-
Page 20: Piezo Tm : Description Of The Feature
PIEZO™: description of the feature For optimised safety against squeezing and blocking on a desk, LINAK has developed DLXX columns with integrated sensor, called PIEZO. The option minimises the risk for damages on a desk caused by squeezing or blocking of obstacles in up and down direction. -
Page 21: Desk Control Apps
Accessories Please contact your nearest LINAK dealer for information. Repairs Systems should only be repaired by an authorised LINAK service centre or engineer. Systems to be repaired under warranty must be sent to an authorised LINAK service centre. Warning! By unauthorised opening of the system there is a risk that it may malfunction at a later date. -
Page 22: Disposal Of Linak Products
Disposal of LINAK products As LINAK customers often ask us how our products can be disposed of or scrapped we have prepared this guidance that enables a classifi cation to different waste fractions for recycling or combustion. Guidance We recommend that our products be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 23: Labels
Labels Label for DL8IC Label for DL9IC Label for DL10IC Label for DL11IC Label for SMPS001 Label for SMPS002 Label for SMPS006 DRAWING APPENDIX... - Page 24 DL8IC M (Master) DL8IC S (Slave) DL9IC M (Master)
- Page 25 DL9IC S (Slave) DL10IC M (Master)
- Page 26 DL10IC S (Slave) DL11IC M (Master)
- Page 27 DL11IC S (Slave) SMPS001...
- Page 28 SMPS002 SMPS006...
-
Page 30: Declaration Of Conformity
DECLARATION OF CONFORMITY LINAK A/S Smedevæ nget 8 DK - 6430 Nordborg hereby declares that LINAK Actuator System composed of: Control Box(s) CBD6SP00020A-309 CBD6S*000*0A-709 (The ‘*’ in the product description can either be a character or a number, thereby defining the variation of the product) -
Page 31: Linak Application Policy
LINAK customer using any LINAK product. LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application... - Page 32 However, due to continuous developmentin order to improve its products, LINAK products are subject to frequent modifications and changes without prior notice. Therefore, LINAK cannot guarantee the correct and actual status of said information on its products. While LINAK uses its best efforts to fulfil orders, LINAK cannot, for the same reasons as mentioned above, guarantee the availability of any particular product.
