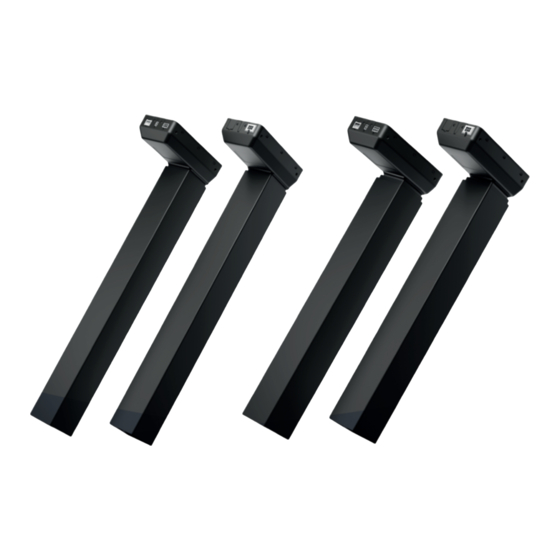

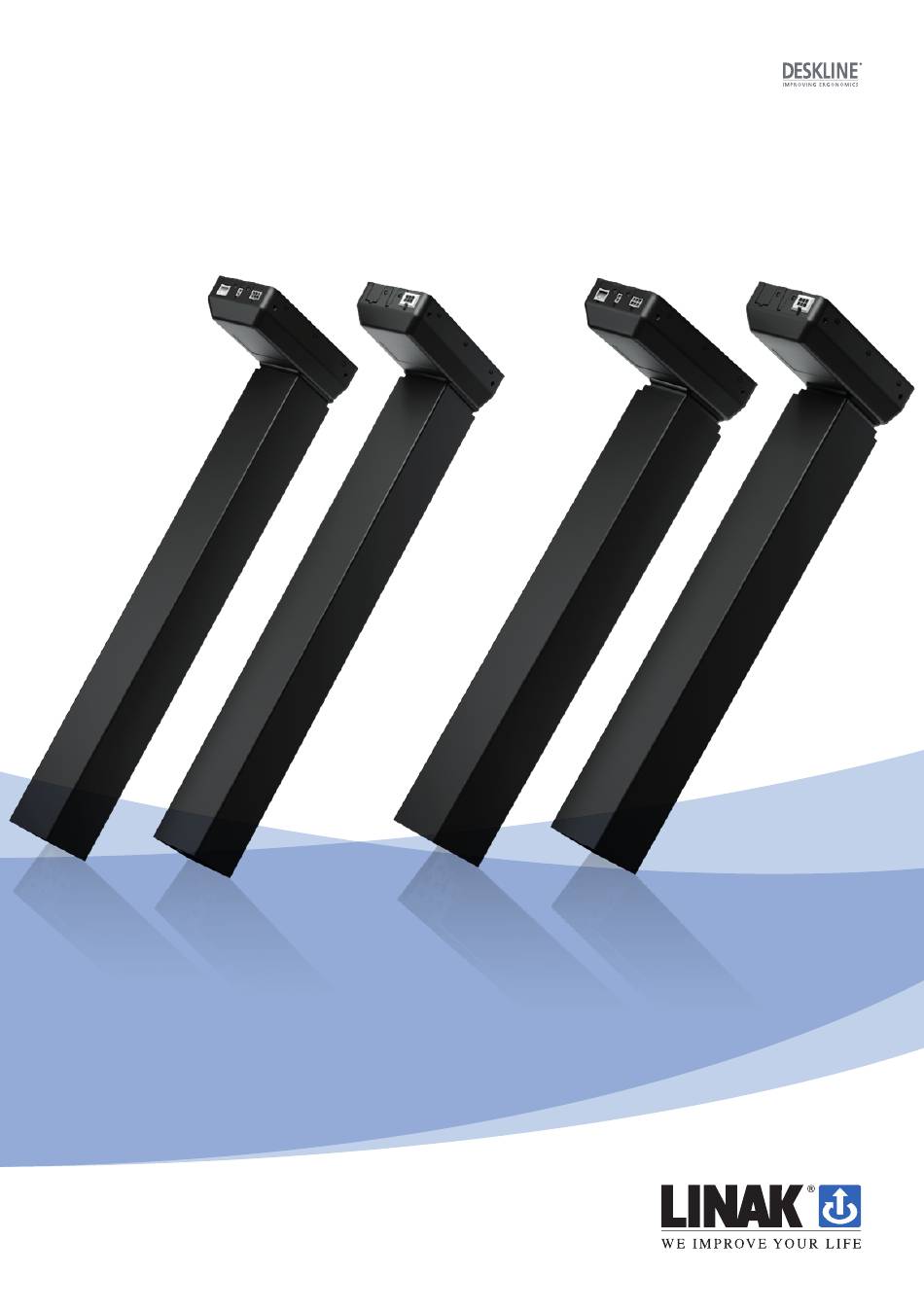

- Page 1 DL18 IC/DL19 IC system User manual LINAK.COM/DESKLINE Page 1 of 24...
-
Page 2: Table Of Contents
Mounting crossbar ........................17 Mounting the tabletop ......................17 Placing the monitor ........................17 Connection ..........................19 Accessories and repair ....................... 20 Disposal of LINAK products ...................... 21 Labels............................22 Drawing appendix ........................23 LINAK application policy ......................30 Addresses ............................ 31... -
Page 3: Preface
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 4: Valid For
Valid for: This User Manual is valid for the following products: (See the first 3 - 5 characters on the label) Columns: 2 lifting columns DL18 IC / DL19 IC Power supply: SMPS001, SMPS002 or SMPS006 Controls: DPA / DPB / DPH / DP1K / DPF1K / DPG1K Page 4 of 24... -
Page 5: Important Information
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. -
Page 6: Safety Issues
Furthermore take care about the connecting wires from the power supply to the DL19 IC system, don’t damage this by overrun. Assure free space for movement of the application in both directions to avoid blockades. The appliance is only to be used with the power supply unit provided with the appliance. -
Page 7: Before Installation, Reinstallation Or Troubleshooting
• System connection. The individual parts must be connected before connecting the control box to the mains. See the User Manual for LINAK actuators, if necessary. During operation • If the column makes unusual noise or smells, switch off the mains voltage immediately. -
Page 8: Only For Eu Markets
Only for EU markets This appliance can be used by children aged from aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 9: Repairs
Repairs In order to avoid the risk of malfunction, all DESKLINE repairs must only be carried out by authorised LINAK workshops or ® repairers, as special tools must be used and special gaskets must be fitted. Lifting units under warranty must also be returned to authorised LINAK workshops. -
Page 10: Declaration Of Conformity
DECLARATION OF CONFORMITY LINAK A/S Smedevænget 8 DK - 6430 Nordborg hereby declares that LINAK Actuator System composed of: Lifting Column with integrated control, DLIC Master: DLXXXXXXMXXXXXX or DLXXXXXXMXXXXXX Passive Actuators, DLIC Slave DLXXXXXXSXXXXXX or DLXXXXXXSXXXXXX Control panel DP1C, DP1K, DPT, DPB, DPF, DP1L, DP1V, DPA, DPH, DP1U,... - Page 11 LINAK A/S Smedevænget 8 DK - 6430 Nordborg hereby declares that LINAK Switch Mode Power Supply, type SMPS006 complies with the EMC Directive: 2014/30/EU according to following standards: EN 61000-6-1:2007, EN 61000-6-3:2007 complies with Low Voltage Directive 2014/35/EU according to the standard:...
-
Page 12: Misc. On The Deskline ® Dl18 Ic / Dl19 Ic System
Misc. on the DESKLINE DL18 IC / DL19 IC system ® This system is a DESKLINE system developed for desks and for indoor use in offices. Do not use it in industrial kitchens or in other environments that have to be cleaned with aggressive detergents. Do not bolt the legs to the floor so that free movement is prevented. -
Page 13: Etl-Marking
ETL-marking Due to space limitations, the complete ETL-marking demands are not represented on the marking plates. The full ETL Recognized Component markings are shown here. C/N 120690 Conforms to UL962 Cert. to CSA Std. C22.2 No. 68-09 ETL Recognized Component mark for Canada and United States C/N 9901916 Conforms to UL962... - Page 14 Description of the DESKLINE DL18 IC / DL19 IC system ® Application of the DESKLINE DL18 IC / DL19 IC system: ® Irrespective of the load, the duty cycle 10 % ≈ 2 minutes continuous use at full load, followed by 18 minutes pause stated in the data sheets, must NOT be exceeded as this will result in a superheating of the motor, the brake and the spindle nut.
-
Page 15: Mounting Guidelines For The Deskline Dl18 Ic / Dl19 Ic System
Installation Mounting guidelines for the DESKLINE DL18 IC / DL19 IC system The motor housing is supplied with six M6 threaded holes for mounting on the top frame. 1. Mount motor housing on top frame using six M6 screws with the following specifications: Quality: Min. -
Page 16: Mounting The Feet
Mounting the feet The DL18 IC / DL19 IC bottom plate is supplied with four M6 and two M8 threaded holes. 1. Mount column bottom on desk feet using four M6 or two M8 screws with the following specifications: Quality: Min. grade 8.8 Length: Min. -
Page 17: Mounting Crossbar
Mounting crossbar We have experienced a few cases where customers have designed a desk with a crossbar with a hidden column bracket, where the bracket has been pulled out when tightening the crossbar. To eliminate this failure, please follow the guidelines below when constructing a desk. -
Page 18: Mounting The Tabletop
Mounting the tabletop The sound from the lifting column spreads as vibrations to the tabletop which amplifies the sound. This can, however, be reduced. Place vibration/shock-absorbing material between tabletop and top frame. Assembled desk Placing the monitor Placement of a monitor directly above the motor housing may cause malfunction of the monitor. Magnets inside the motor may interrupt the picture on the monitor depending on distance and type of monitor. -
Page 19: Connection
Connection: Items required: Motor cable Desk panel (example) SMPS + cable 1. Connect the master and follower columns using the motor cable. 2. Mount the desk panel onto the desk and connect it to the master column. 3. Connect the SMPS to the master column and to the mains. Page 19 of 24... -
Page 20: Accessories And Repair
® Repairs Systems should only be repaired by an authorised LINAK service centre or engineer. Systems to be repaired under warranty must be sent to an authorised LINAK service centre. Warning! By unauthorised opening of the system there is a risk that it may malfunction at a later date. -
Page 21: Disposal Of Linak Products
Disposal of LINAK product As LINAK customers often ask us how our products can be disposed or scrapped we have prepared this guide that enables a classification to different waste fractions for recycling or combustion. Guide We recommend our products to be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 22: Labels
Labels Label for DL18 IC Master Label for DL18 IC Follower Label for DL19 IC Master Label for DL19 IC Follower Label for SMPS006 Label for SMPS001 Label for SMPS002 Page 22 of 24... -
Page 23: Drawing Appendix
DRAWING APPENDIX DL18 IC Version Combination code B (Built-in length) S (Stroke length) O (Outer profile length) [mm] [mm] [mm] DL18xxxxxx500645 DL18 built-in length, stroke length, and outer profile length (mm) DL18 IC motor housing and profile dimensions (mm) Page 23 of 24... - Page 24 DL18 IC Bracket options DL18 motor housing and profile dimensions (mm) Combination code Bench left Bench right DL18xxLxxSxxxxxx DL18xxRxxMxxxxxx Bracket options (dimensions in mm) Page 24 of 24...
- Page 25 DL19 IC Version Combination code B (Built-in length) S (Stroke length) O (Outer profile length) [mm] [mm] [mm] DL19xxxxxx650560 DL19 built-in length, stroke length, and outer profile length (mm) DL19 IC motor housing and profile dimensions (mm) Page 25 of 24...
- Page 26 DL19IC Bracket options DL19 motor housing and profile dimensions (mm) Combination code Bench left Bench right DL19xxLxxSxxxxxx DL19xxRxxMxxxxxx Bracket options (dimensions in mm) Page 26 of 24...
- Page 27 Sockets IC Master IC Follower Combination code Type DL19xxxxxMxxxxxx IC Master DL19xxxxxSxxxxxx IC Follower Profile designs Standard PLUS™ Page 27 of 24...
- Page 28 SMPS001 SMPS002 Page 28 of 24...
- Page 29 SMPS006 Page 29 of 24...
-
Page 30: Linak Application Policy
LINAK customer using any LINAK product. LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question. - Page 31 ® without prior notice. LINAK cannot guarantee product availability and reserves the right to discontinue the sale of any product. The user is responsible for determining the suitability of LINAK products for a specific application. All sales are subject to the ‘Standard Terms of Sale and Delivery’, available on LINAK websites.
