Red_State_1: State of Primary slave
Octet 6
Red_State_2: State of Backup slave
Octet 7
Red_State_3: State of Backup slave
Octet 8 Redundancy FSM current status (only for diagnostic)

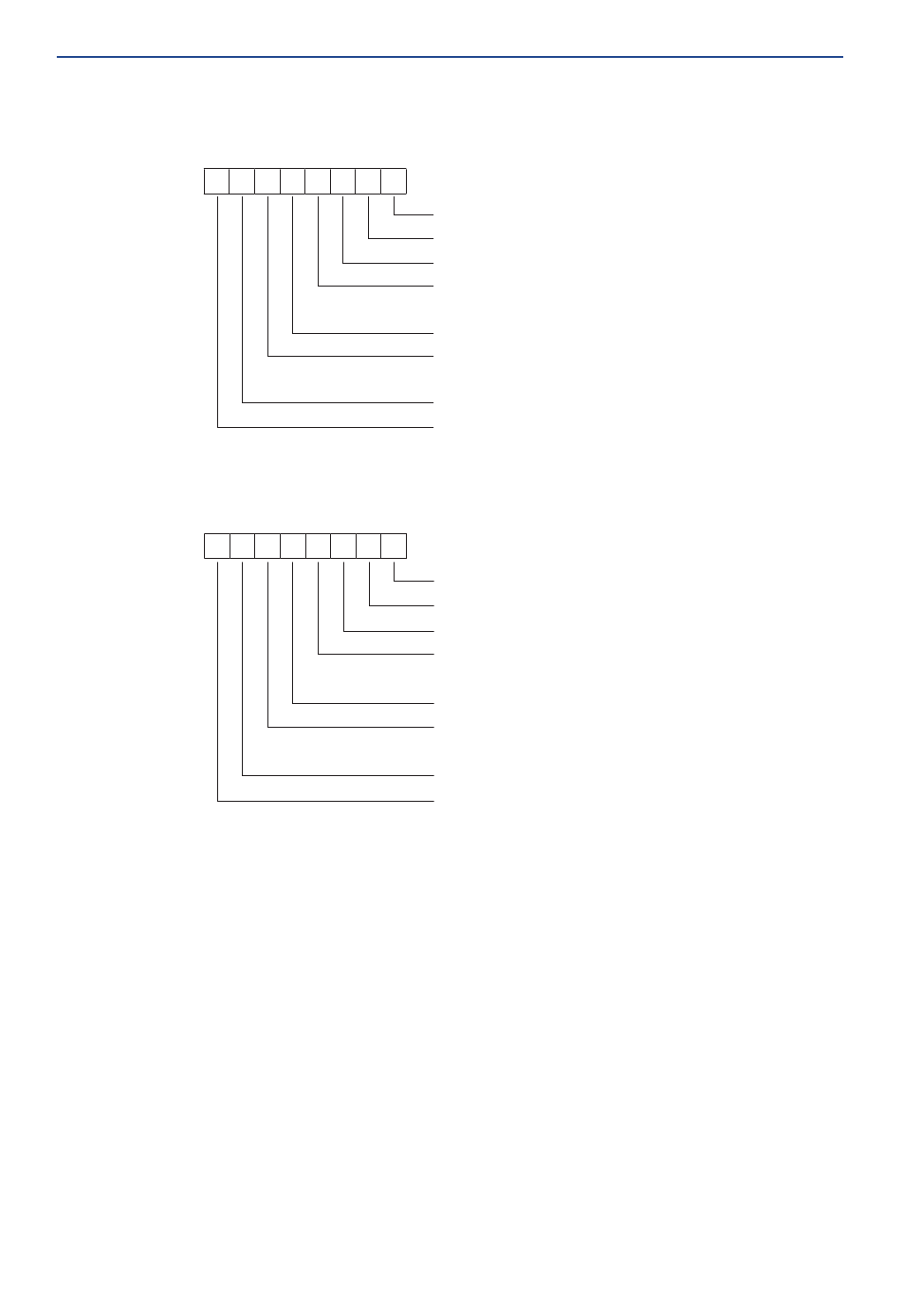

Diagnosis - Alarms
bit0
The slave is the backup.
The slave is the primary.
There is hardware defect.
The slave is in Data Exchange.
Master State Clear
Baud rate found
Toh started
Reserved
bit0
The slave is the backup.
The slave is the primary.
There is hardware defect.
The slave is in Data Exchange.
Master State Clear
Baud rate found
Toh started
Reserved
