BIFFI ICON3000 Installation, Operation And Maintenance Manual

Sleep mode
Hide thumbs Also See for ICON3000:

Advertisement

Quick Links

Download this manual

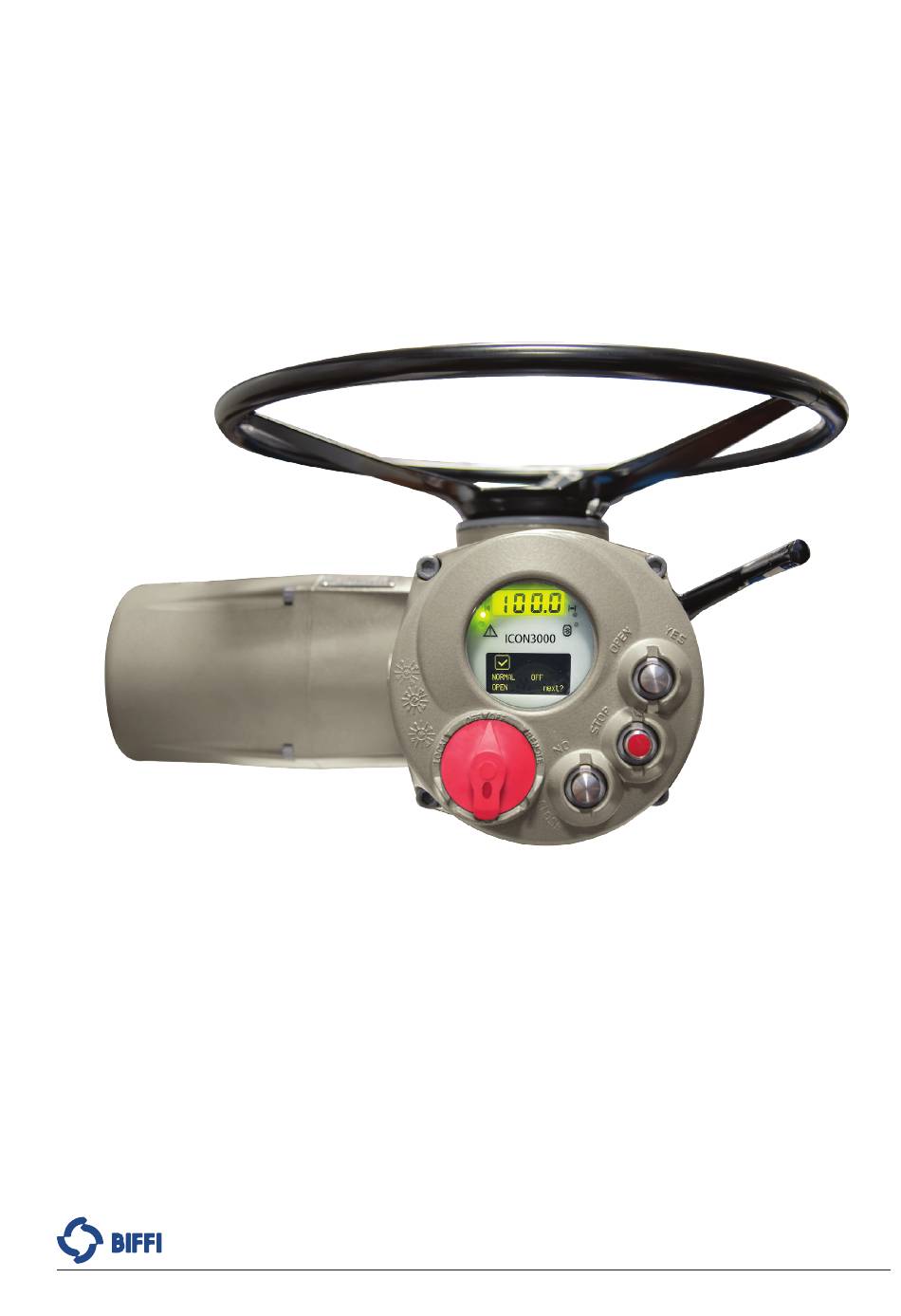

Biffi ICON3000
Sleep Mode
Copyright © Biffi. The information in this document is subject to change without notice. Updated data sheets can be obtained from our website www.biffi.it or from your nearest Biffi Center:
Biffi Italia s.r.l. - Strada Biffi 165, 29017 Fiorenzuola d'Arda (PC) – Italy PH: +39 0523 944 411 – biffi_italia@biffi.it
Installation, Operation and Maintenance Manual
VCIOM-16338-EN Rev. 2
March 2023

Advertisement

loading
Need help?

Need help?

Do you have a question about the ICON3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BIFFI ICON3000

Summary of Contents for BIFFI ICON3000

  • Page 1 Sleep Mode Copyright © Biffi. The information in this document is subject to change without notice. Updated data sheets can be obtained from our website www.biffi.it or from your nearest Biffi Center: Biffi Italia s.r.l. - Strada Biffi 165, 29017 Fiorenzuola d'Arda (PC) – Italy PH: +39 0523 944 411 – biffi_italia@biffi.it...
  • Page 2 Notes Installation, Operation and Maintenance Manual March 2023 VCIOM-16338-EN Rev. 2 This page intentionally left blank.

  • Page 3: Table Of Contents

    Installation, Operation and Maintenance Manual Table of Contents VCIOM-16338-EN Rev. 2 March 2023 Table of Contents Section 1: Introduction Introduction ......................1 Section 2: Conditions to Activate SLEEP Function Conditions to Activate SLEEP Function ..............2 Section 3: Conditions to Switch to SLEEP Mode Conditions to Switch to SLEEP Mode ................
  • Page 4 Notes Installation, Operation and Maintenance Manual March 2023 VCIOM-16338-EN Rev. 2 This page intentionally left blank.

  • Page 5: Section 1: Introduction

    March 2023 Section 1: Introduction SLEEP is a function available in the ICON3000 and ICON3000v2 actuators that reduces the power consumption of the electronics when the actuator is not moving. The ICON3000v2 actuator can be recognized because when it is switched on, the name “ICON3000v2”...

  • Page 6: Section 2: Conditions To Activate Sleep Function

    Section 2: Conditions to Activate SLEEP Function Installation, Operation and Maintenance Manual March 2023 VCIOM-16338-EN Rev. 2 Section 2: Conditions to Activate SLEEP Function The SLEEP function is activated by the following conditions: • Parameter SLEEP in the “Actuator Setup” menu, “Restricted” section: ENABLED •...

  • Page 7: Section 3: Conditions To Switch To Sleep Mode

    Installation, Operation and Maintenance Manual Section 3: Conditions to Switch to SLEEP Mode VCIOM-16338-EN Rev. 2 March 2023 Section 3: Conditions to Switch to SLEEP Mode The electronics circuits of the actuator switch to SLEEP status when: • 30 seconds after the end of the last command (OPEN, CLOSE, ESD) via remote control •...

  • Page 8: Section 4: Conditions To Exit From Sleep Mode

    Section 4: Conditions to Exit from SLEEP Mode Installation, Operation and Maintenance Manual March 2023 VCIOM-16338-EN Rev. 2 Section 4: Conditions to Exit from SLEEP Mode The electronics circuits of the actuator exit from SLEEP status when: • Command via remote control OPEN, CLOSE, ESD (duration of command: >...

  • Page 9: Section 5: Sleep Mode Status

    Installation, Operation and Maintenance Manual Section 5: SLEEP Mode Status VCIOM-16338-EN Rev. 2 March 2023 Section 5: SLEEP Mode Status In SLEEP mode: • The alphanumeric display of actuator shows the message “SLEEP” • Auxiliary relays AS1, AS7 do not change •...

  • Page 10: Section 6: Current Consumption

    Section 6: Current Consumption Installation, Operation and Maintenance Manual March 2023 VCIOM-16338-EN Rev. 2 Section 6: Current Consumption Minimum current consumption is obtained via the following configuration: • Actuator without 4 to 20 mA position re-transmission card • Parameter “MR in SLEEP” in “Actuator Setup” menu, “Restricted” section in “OFF” In the above condition, the current consumption measured by a multimeter (on average on an actuator powered at 24 V DC) is equal to or less than 58 mA, corresponding to 1.4 W (at 24 V DC).
