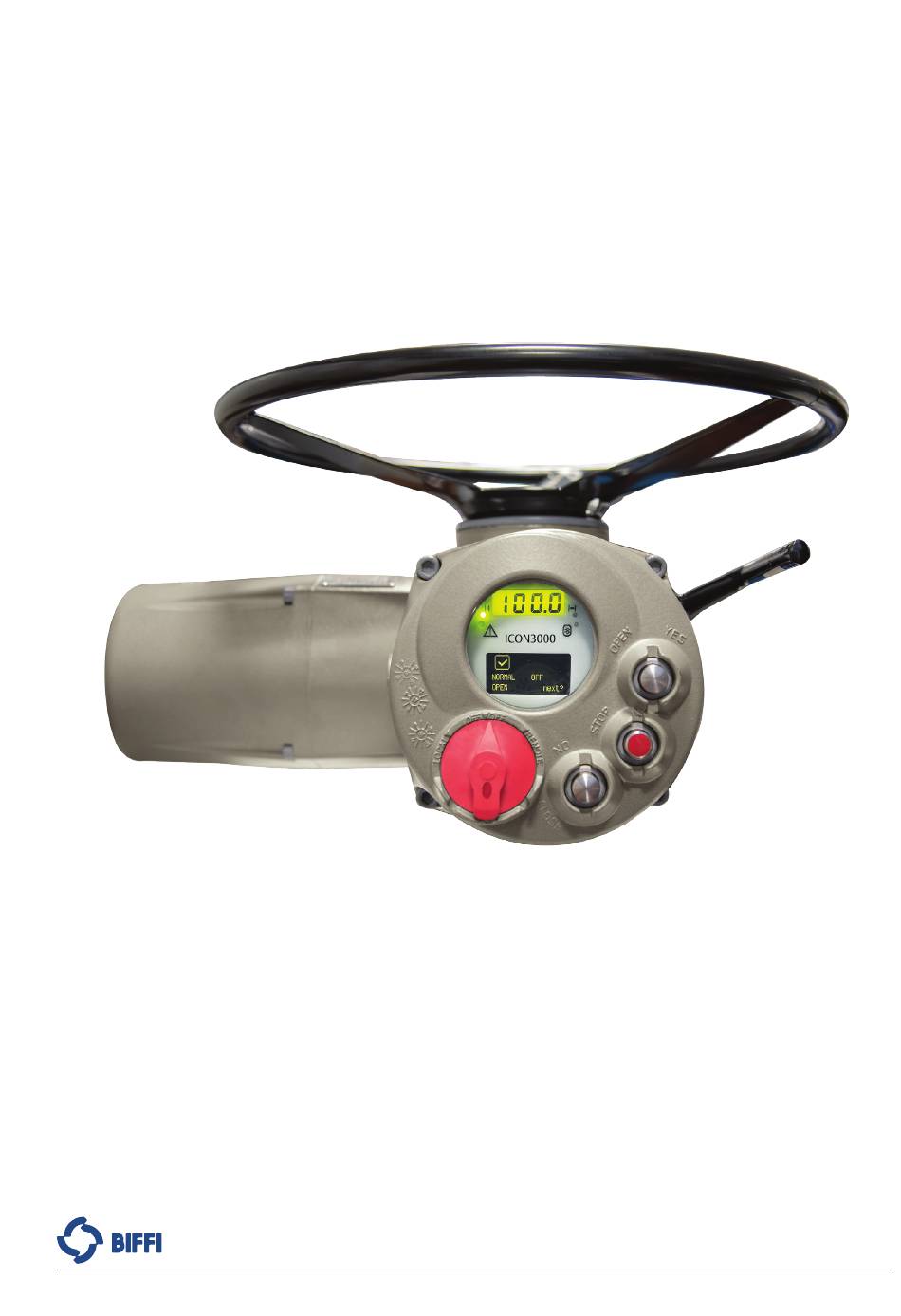

Biffi ICON3000
Sleep Mode
Copyright © Biffi. The information in this document is subject to change without notice. Updated data sheets can be obtained from our website www.biffi.it or from your nearest Biffi Center:
Biffi Italia s.r.l. - Strada Biffi 165, 29017 Fiorenzuola d'Arda (PC) – Italy PH: +39 0523 944 411 – biffi_italia@biffi.it
Installation, Operation and Maintenance Manual
VCIOM-16338-EN Rev. 1
March 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICON3000 and is the answer not in the manual?

Questions and answers

Related Manuals for BIFFI ICON3000

Summary of Contents for BIFFI ICON3000

  • Page 1 Sleep Mode Copyright © Biffi. The information in this document is subject to change without notice. Updated data sheets can be obtained from our website www.biffi.it or from your nearest Biffi Center: Biffi Italia s.r.l. - Strada Biffi 165, 29017 Fiorenzuola d'Arda (PC) – Italy PH: +39 0523 944 411 – biffi_italia@biffi.it...
  • Page 2 Revision Details Installation, Operation and Maintenance Manual March 2021 VCIOM-16338-EN Rev. 1 Revision Details Revision Date Description Prepared Checked Approved March 2021 General update (Migration to new template) October 2018 First issue M. Burgazzi A. Battaglia Revision Details...

  • Page 3: Table Of Contents

    Installation, Operation and Maintenance Manual Table of Contents VCIOM-16338-EN Rev. 1 March 2021 Table of Contents Section 1: Introduction Introduction ......................1 Section 2: Conditions to Activate SLEEP Function Conditions to Activate SLEEP Function ..............2 Section 3: Conditions to Switch to SLEEP Mode Conditions to Switch to SLEEP Function ..............
  • Page 4 Notes Installation, Operation and Maintenance Manual March 2021 VCIOM-16338-EN Rev. 1 This page intentionally left blank...

  • Page 5: Section 1: Introduction

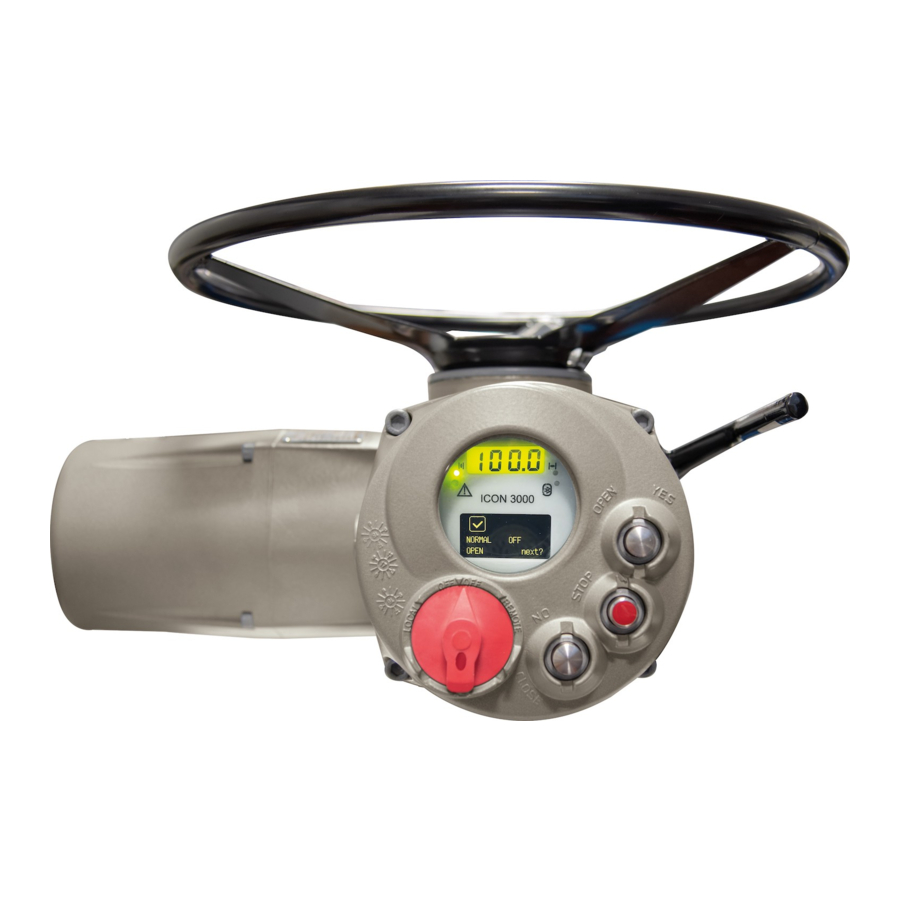

    March 2021 Section 1: Introduction SLEEP is a new function available in the ICON3000 electric actuator which reduces power consumption from the electronics when the actuator is not moving. This function is useful when the actuator is powered via battery and solar panel, and if few valve travel events are expected.

  • Page 6: Conditions To Activate Sleep Function

    Section 2: Conditions to Activate Installation, Operation and Maintenance Manual March 2021 VCIOM-16338-EN Rev. 1 Section 2: Conditions to Activate SLEEP Function The SLEEP function is activated by the following conditions: • Parameter SLEEP in the “Actuator Setup” menu, “Restricted” section: ENABLED •...

  • Page 7: Section 3: Conditions To Switch To Sleep Mode

    VCIOM-16338-EN Rev. 1 March 2021 Section 3: Conditions to Switch to SLEEP Mode The ICON3000 electronics switch to SLEEP status when: • 30 seconds after the end of the last command (OPEN, CLOSE, ESD) via remote control • 2 minutes after the last operation on the local interface of the actuator (local selector and pushbuttons) •...

  • Page 8: Section 4: Conditions To Exit From Sleep Mode

    By operating the actuator local interface (local pushbuttons or selector) (duration of command: >1 second) • Change of position > 5% via manual operation (handwheel) When the ICON3000 exits from SLEEP mode, all functions are restored, and the actuator is available for normal operation. Conditions to Exit...

  • Page 9: Section 5: Sleep Mode Status

    Installation, Operation and Maintenance Manual Section 5: SLEEP Mode Status VCIOM-16338-EN Rev. 1 March 2021 Section 5: SLEEP Mode Status In SLEEP mode: • The alphanumeric display of actuator shows the message “SLEEP” • Auxiliary relays AS1, AS7 do not change •...

  • Page 10: Section 6: Current Consumption

    In the above condition, the current consumption measured by a multimeter (on average on an ICON3000 supplied at 24 V DC) is 58 mA, corresponding to 1.4 W (at 24 V DC). If the actuator is equipped with a 4 - 20 mA position transmitter module, the current consumption is 78 mA.
  • Page 11 Installation, Operation and Maintenance Manual Notes VCIOM-16338-EN Rev. 1 March 2021 This page intentionally left blank...
  • Page 12 VCIOM-16338-EN ©2021 Biffi. All rights reserved. Biffi Italia s.r.l. Strada Biffi 165 The contents of this publication are presented for information purposes only, 29017 Fiorenzuola d’Arda (PC) and while every effort has been made to ensure their accuracy, they are not...
