Danfoss VLT FC 103 Instruction Manual page 32

Installation
2 2
1

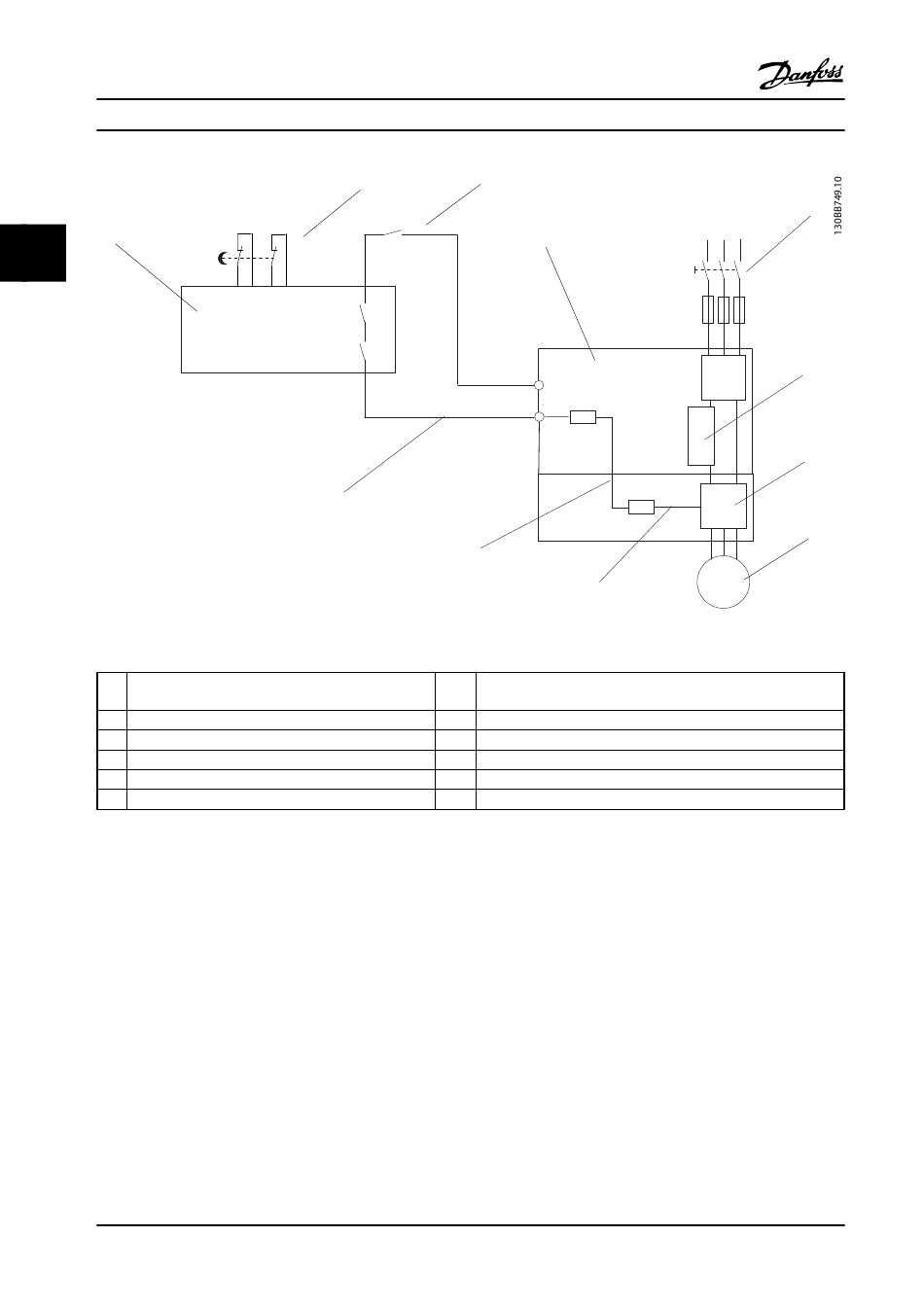

Figure 2.37 Installation to Achieve a Stopping Category 0 (EN 60204-1) with Safety Cat. 3 (EN 954-1) / PL "d" (ISO 13849-1).
1 Safety device Cat. 3 (circuit interrupt device, possibly
with release input)
2 Door contact
3 Contactor (Coast)
4 Adjustable frequency drive
5 Line power
6 Control board
Table 2.9 Legend to Figure 2.37
STO commissioning test
After installation and before first operation, perform a commissioning test of the installation making use of STO. Also,
perform the test after each modification of the installation.
28
Instruction Manual
3
2
11
10
7 Inverter
8 Motor
9 5 V DC
10 Safe channel
11 Short-circuit protected cable (if not inside installation cabinet)
Danfoss A/S © Rev. 2014-02-10 All rights reserved.
4
12
37
9
5
6
7
8
M
MG16E222
