Installation
91
92
93
96
97
L1
L2
L3
U
V
95
99
Figure 2.12 Motor, Line Power and Ground Wiring for Frame
Sizes B, C and D Using Shielded Cable
91
92
93
96
97
L1
L2
L3
U
V
95
99
Figure 2.13 Motor, Line Power and Ground Wiring for Frame
Sizes B, C and D Using Conduit
MG16E222
Instruction Manual
88
89
81
8
DC-
DC+
R-
R+
98
W
99
W
Danfoss A/S © Rev. 2014-02-10 All rights reserved.

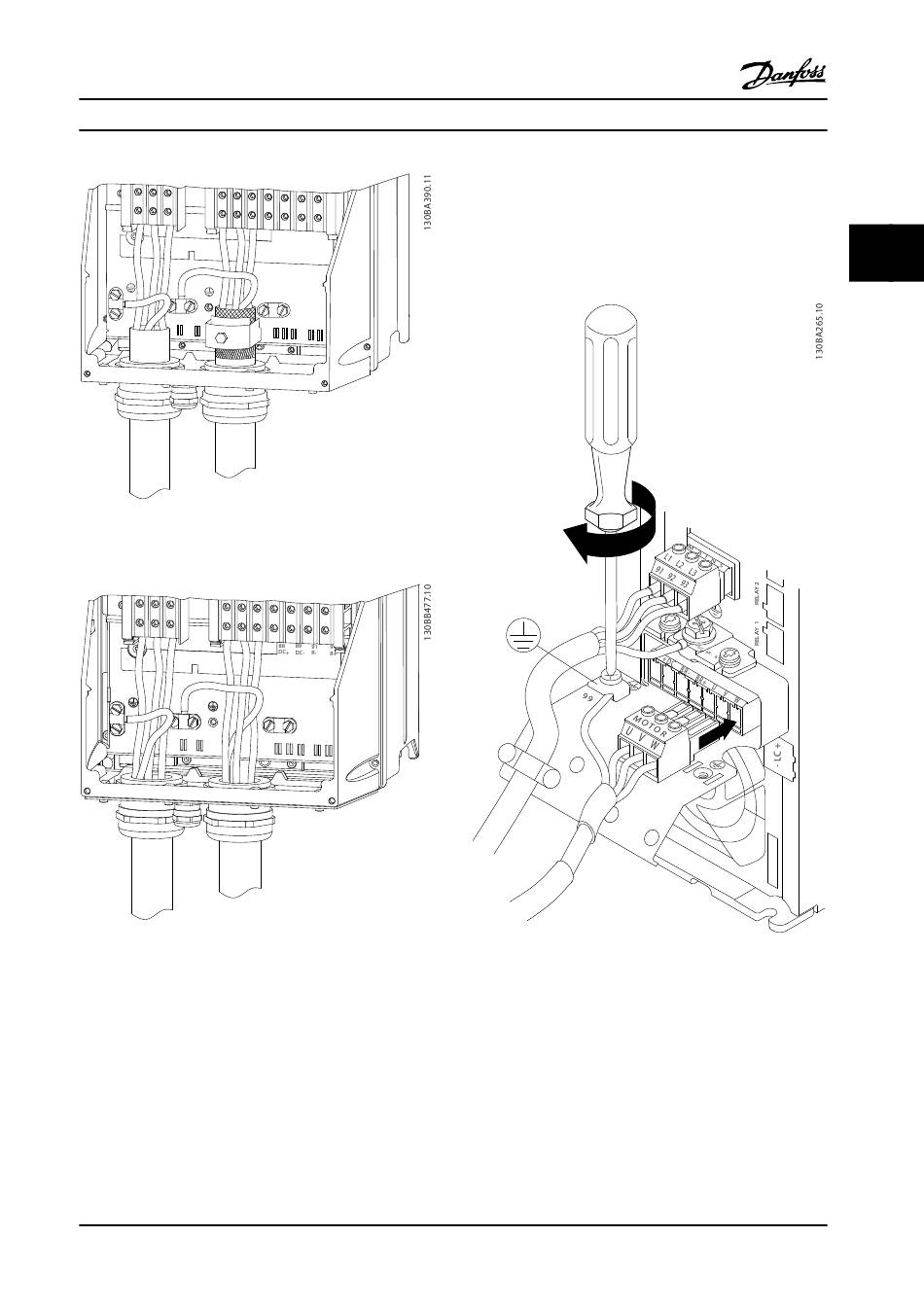

2.4.4.1 Motor Connection for A2 and A3
Follow these drawings step-by-step for connecting the
motor to the adjustable frequency drive.
1.
Terminate the motor ground, place motor U, V
and W wires in plug and tighten.
Figure 2.14 Motor Connection for A2 and A3
2
2
17
