Ac Line Input Connection For A4 And A5 - Danfoss VLT FC 103 Instruction Manual

Installation
4. Mount line power plug and tighten wires

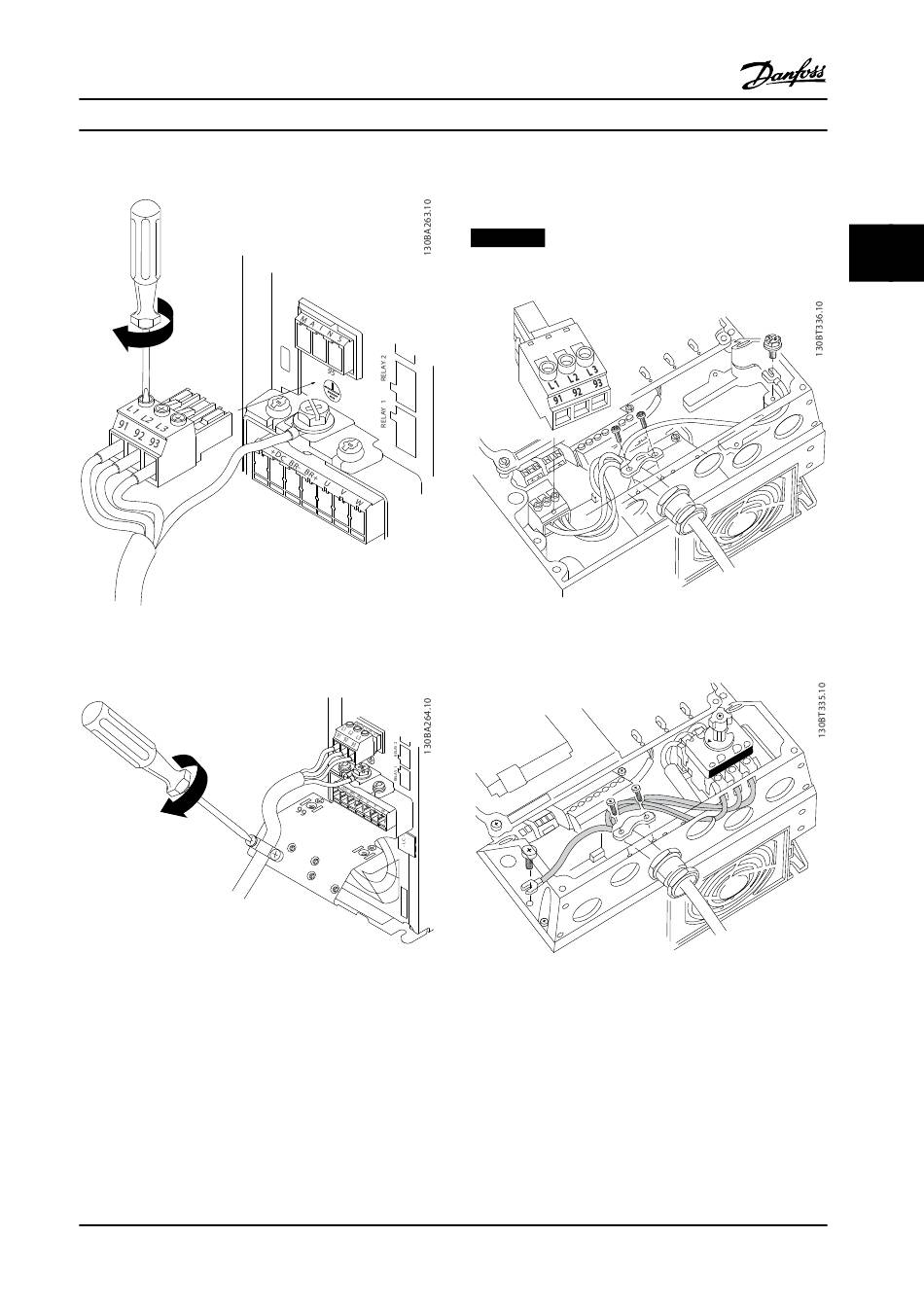

Figure 2.22 Line Power Plug Mounting
5. Tighten support bracket on line power wires
Figure 2.23 Support Bracket Mounting
MG16E222
Instruction Manual
2.4.5.2 AC Line Input Connection for A4
NOTICE!
A cable clamp is used.
Figure 2.24 Connection to Line Power and Grounding without
Line Power Disconnect Switch
Figure 2.25 Connection to Line Power and Grounding with
Line Power Disconnect Switch
