Lightspeed Redcat User Manual page 7

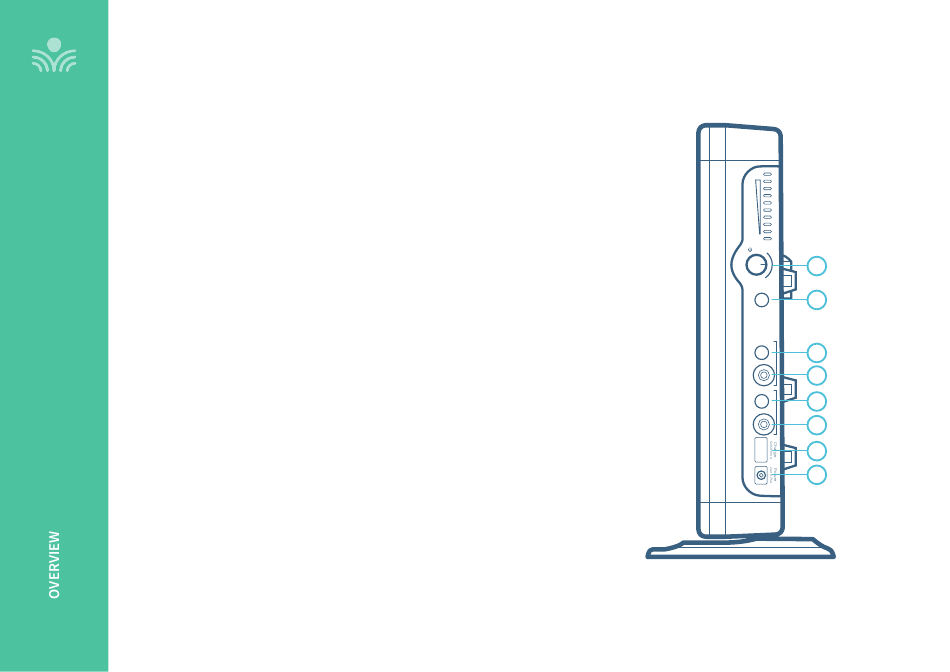

Side Panel Controls and Connections
1. POWER BUTTON / VOLUME ADJUSTMENT: Press this button to turn the system power on
or off. This also functions as an adjustment knob for the volume and tone depending on the
mode selected (see 2, 3, 5 below).
2. TONE SELECTOR: Selects tone as the mode for the adjustment knob (1) that adjusts the
bass or treble that is heard through the Redcat.
3. AUDIO INPUT VOLUME SELECTOR: Selects Volume as the mode for the adjustment knob (1)
for the audio sources connected to the audio input jack below.
4. AUDIO INPUT JACK: 3.5mm stereo connector for connecting to a computer or mobile device
as an audio source.
5. AUDIO OUTPUT VOLUME SELECTOR: Selects Volume as the mode for the adjustment knob
(1) for the audio device connected to the audio output jack below.
6. AUDIO OUTPUT JACK: 3.5mm stereo connector for connecting to an assisted listening
device (ALD) or to a computer for recording.
7. EXTERNAL DEVICE/POWER PORT: Charge for external device.
8. POWER: Plug the power supply (24V/1.75A) into this jack.
7
Push
1
Level
2
Tone
Input
3
4
Output
5
6
7
8
