Battery Pack for Redcat
ADDING A BATTERY PACK TO REDCAT (PART # L14V)
1.
Find and open the battery compartment by squeezing together the tabs located on each
side of the compartment door. Remove and recycle door.
2.

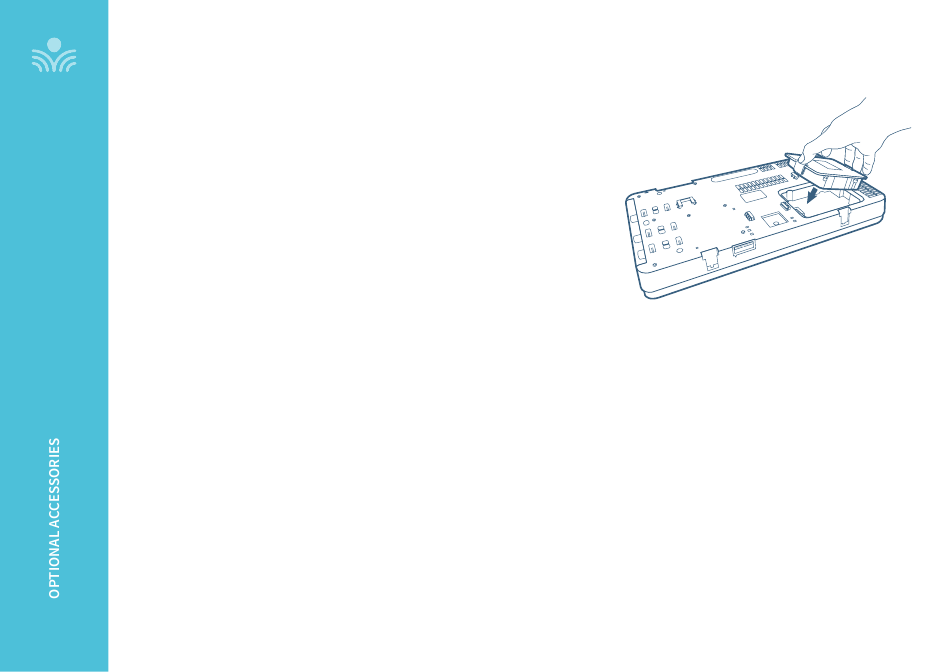

Place the battery pack into the compartment by squeezing together the tabs on either side
of the battery pack and inserting it into the compartment. Match the connection on the
battery pack with the connection in the battery compartment on the back of Redcat.
3.
Ensure that the battery pack snaps firmly into Redcat.
4.
Redcat will automatically power on when battery pack is inserted properly.
5.
If Redcat has been powered down, press the ON/OFF button to power on the unit. The front
panel POWER light will glow blue.
USING REDCAT WITH BATTERY PACK
1.
When Redcat is in use with the battery pack, the POWER light will blink red if battery is low.
2.
Charge battery pack by plugging Redcat into the 24V / 1.75A power supply.
• If Redcat is turned on, the POWER light will turn red for two seconds when power supply
is first plugged in, and then turn solid white.
• The POWER light will be solid red while charging if Redcat is turned off. The light will turn
green when charging is complete.
3.
Redcat will continue to operate while battery pack is being charged.
4.
When Redcat is being charged while turned on, you can check charging status by pressing
the ON/OFF button. The POWER LED will glow green for a fully charged battery and red
to indicate more charge is necessary. The ON/OFF button must be pressed again to turn
Redcat back on.
5.
When Redcat is powered by the battery pack only, it can be turned off completely by
pushing the ON/OFF button. To help maintain battery life, it will automatically turn off after
two hours of inactivity.
6.
When Redcat is powered by battery pack only, it cannot be turned on again by Flexmike,
Sharemike, Activate Station or Media Connector. The ON/OFF button must be pushed.
7.
It is not necessary to unplug the power supply for every day use.
