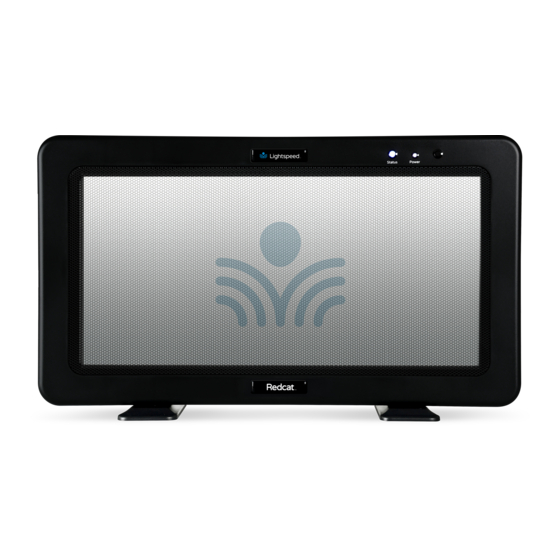

Lightspeed RedcatAccess Quick Start Manual

Quick Start Guide

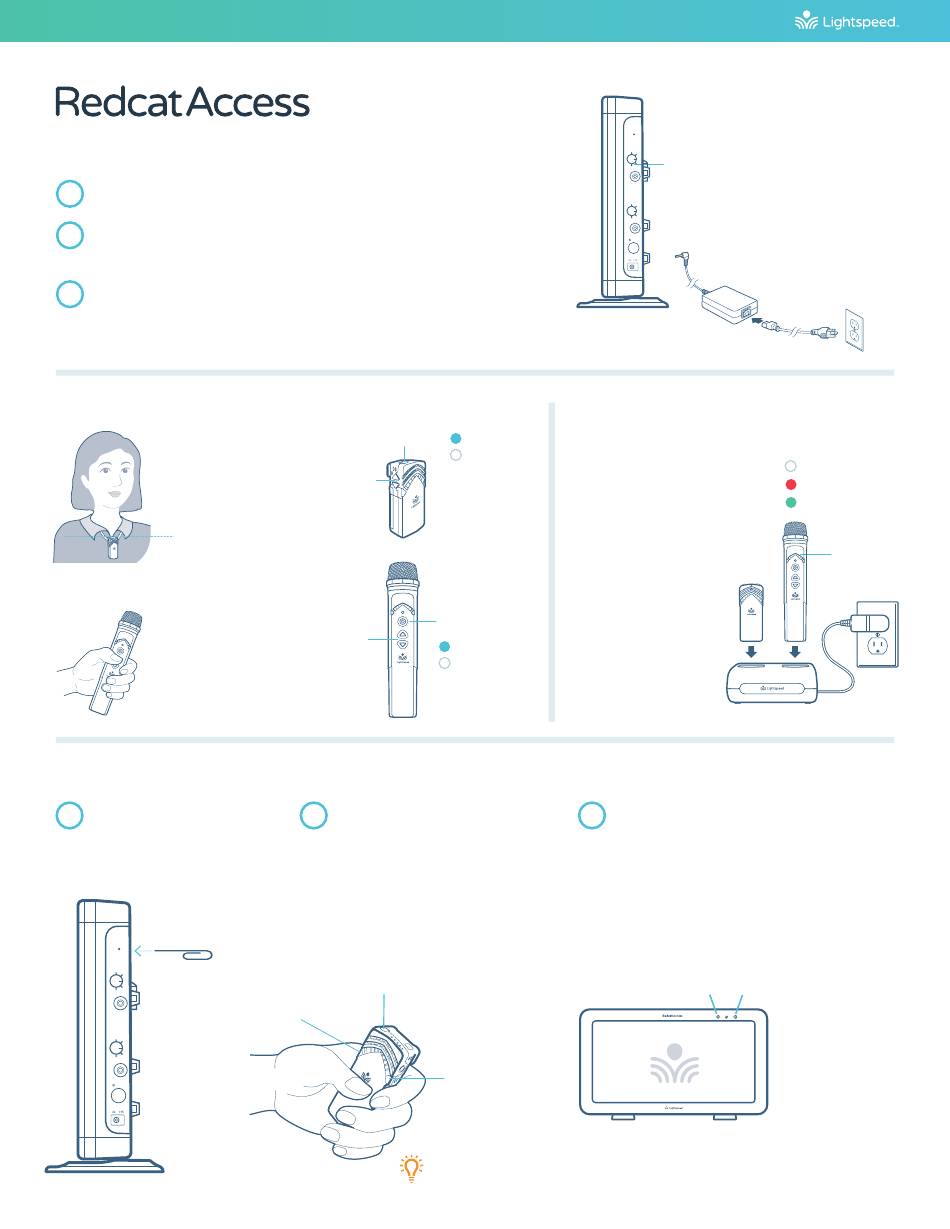

DETERMINE SET-UP LOCATION AND PLUG IN POWER SUPPLY
Redcat Access should be placed within 7 feet of an electrical outlet and on a
1
surface about 4-6 feet off the ground.
Next, find a location as far away as possible from the teacher who will be using
2
the microphone. Avoid putting Redcat in close proximity to the teacher's mic
which can result in feedback.
Connect the AC power cord into the DC power supply. Insert the connector into
3
the Redcat and plug the power cord into an electrical outlet. Redcat Access
automatically powers on and the white POWER light on the front panel will glow.
USING THE FLEXMIKE
Remove microphone
from charger. Press
the mute button to
unmute, hold near
your mouth and
begin speaking.
ALIGN WITH
COLLARBONE
USING THE SHAREMIKE
Remove microphone
from charger and press
the mute button to
begin speaking.
PAIRING MICROPHONES TO REDCAT ACCESS
1
With a paperclip, push the register
button on the side of Redcat
Access.
REGISTER
AUDIO IN
MIN
MAX
AUDIO
(ALD) OUT
MIN MIN
MAX MAX
ON/OFF
DC OUTPUT
V/ . A
Instructional Audio System
POWER/MUTE BUTTON
ADJUST
VOLUME
POWER/MUTE
BUTTON
ADJUST
VOLUME
2
From a powered off state, press and
hold the power button for 5 seconds
until the mic 1 and mic 2 lights start
flashing, then release the button and
let the pairing process finish.
POWER BUTTON
MIC 1
Your system is shipped with microphones and base units already paired.
If you ever need to pair new components, follow this pairing process.
REGISTER
AUDIO IN
MIN
MAX
(ALD) OUT
MIN MIN
MAX MAX
DC OUTPUT
CHARGE MICROPHONES NIGHTLY
Place the microphones
TALK (BLUE)
into the cradle charger. The
MUTE (WHITE)
power status light will glow
red when it is charging.
When charging is complete,
the power status light will
glow green.
It takes about 5-6 hours
to fully charge the
microphone battery.
TALK (BLUE)
MUTE (WHITE)
3
The mic 1 or mic 2 lights on Redcat
Access will light green indicating
the pairing process is complete. The
corresponding mic 1 or mic 2 light on
the microphone will stay illuminated.
MIC 2
POWER ON
AUDIO
ON/OFF
V/ . A
NORMAL OPERATION
CHARGING IN PROGRESS
CHARGING COMPLETE
MIC 1 MIC 2
POWER STATUS
LIGHT
