Media Connector Set Up and Operation Media Connector Set Up and Operation

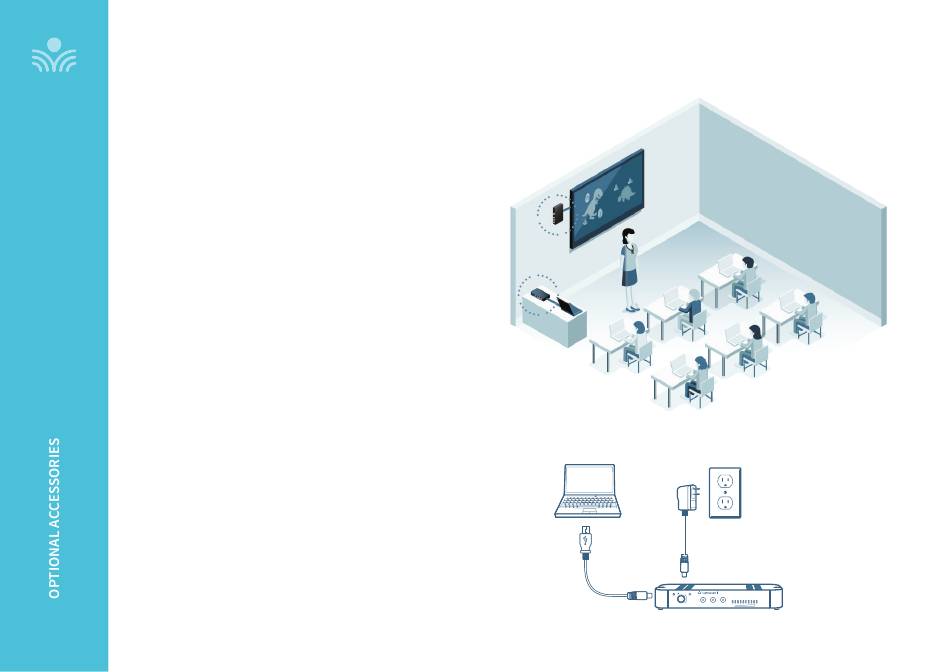

DETERMINE LOCATION
Media Connector is designed to be connected to the primary media
source in the classroom, usually the computer or display panel.
WALL MOUNT OR DESKTOP
The Media Connector can be placed on a table surface or wall-
mounted.
• Choose a location that is convenient to the classroom audio
sources and power supply.
• It should be located 3-6 feet off of the floor to allow for good
transmission.
• Do not enclose in a metal cabinet or in a location where the signal
will be obstructed.
NOTE: The Media Connector does not require a direct line of sight
to Redcat. However it functions best when no obstructions are
between the two devices.
CONNECT TO POWER
Connect the USB power cord to a computer. Plug the
USB cable into the USB input on the back of the Media
Connector.
or
Use the USB power adapter to plug into a wall outlet.
27
Power Status Media Media Connector Connector
Push
Audio Audio Tone
Level
Input Output
OR
USB Cable USB Power Adapter
Power Status
Push
Level Audio
Input
Media Connector Media Connector
Audio Tone
Output
