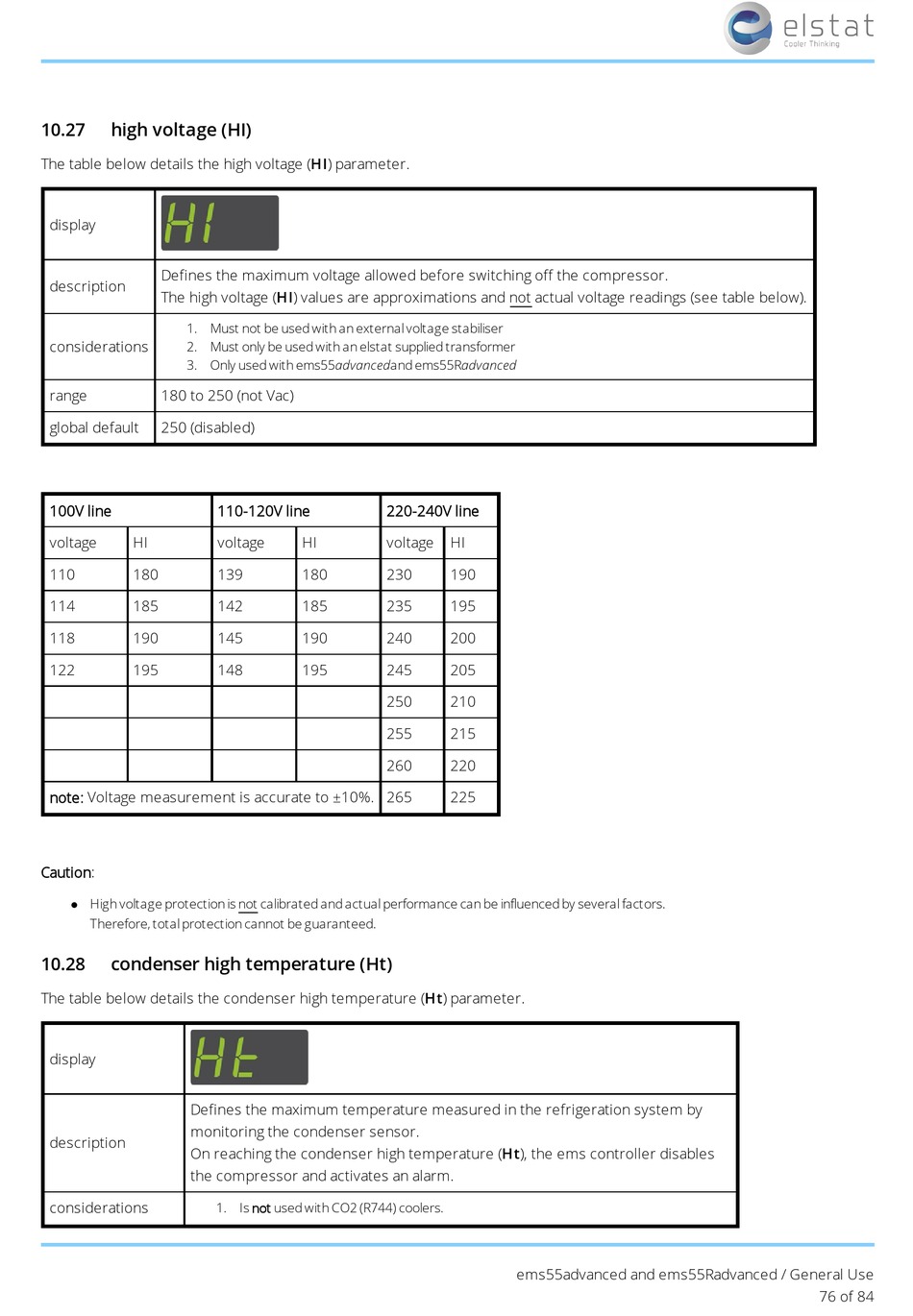

high voltage (HI)

The table below details the high voltage (HI) parameter.
display
Defines the maximum voltage allowed before switching off the compressor.
description
The high voltage (HI) values are approximations and not actual voltage readings (see table below).
1. Must not be used with an external voltage stabiliser
considerations
2. Must only be used with an elstat supplied transformer
3. Only used with ems55advancedand ems55Radvanced
range 180 to 250 (not Vac)
global default 250 (disabled)
100V line
voltage HI
110 180
114 185
118 190
122 195
note: Voltage measurement is accurate to ±10%. 265
Caution:
High voltage protection is not calibrated and actual performance can be influenced by several factors.
l
Therefore, total protection cannot be guaranteed.
10.28

condenser high temperature (Ht)

The table below details the condenser high temperature (Ht) parameter.
display
Defines the maximum temperature measured in the refrigeration system by
monitoring the condenser sensor.
description
On reaching the condenser high temperature (Ht), the ems controller disables
the compressor and activates an alarm.
considerations
110-120V line 220-240V line
voltage HI voltage
139 180 230
142 185 235
145 190 240
148 195 245
250
255
260
1. Is not used with CO2 (R744) coolers.
HI
190
195
200
205
210
215
220
225
ems55advanced and ems55Radvanced / General Use
