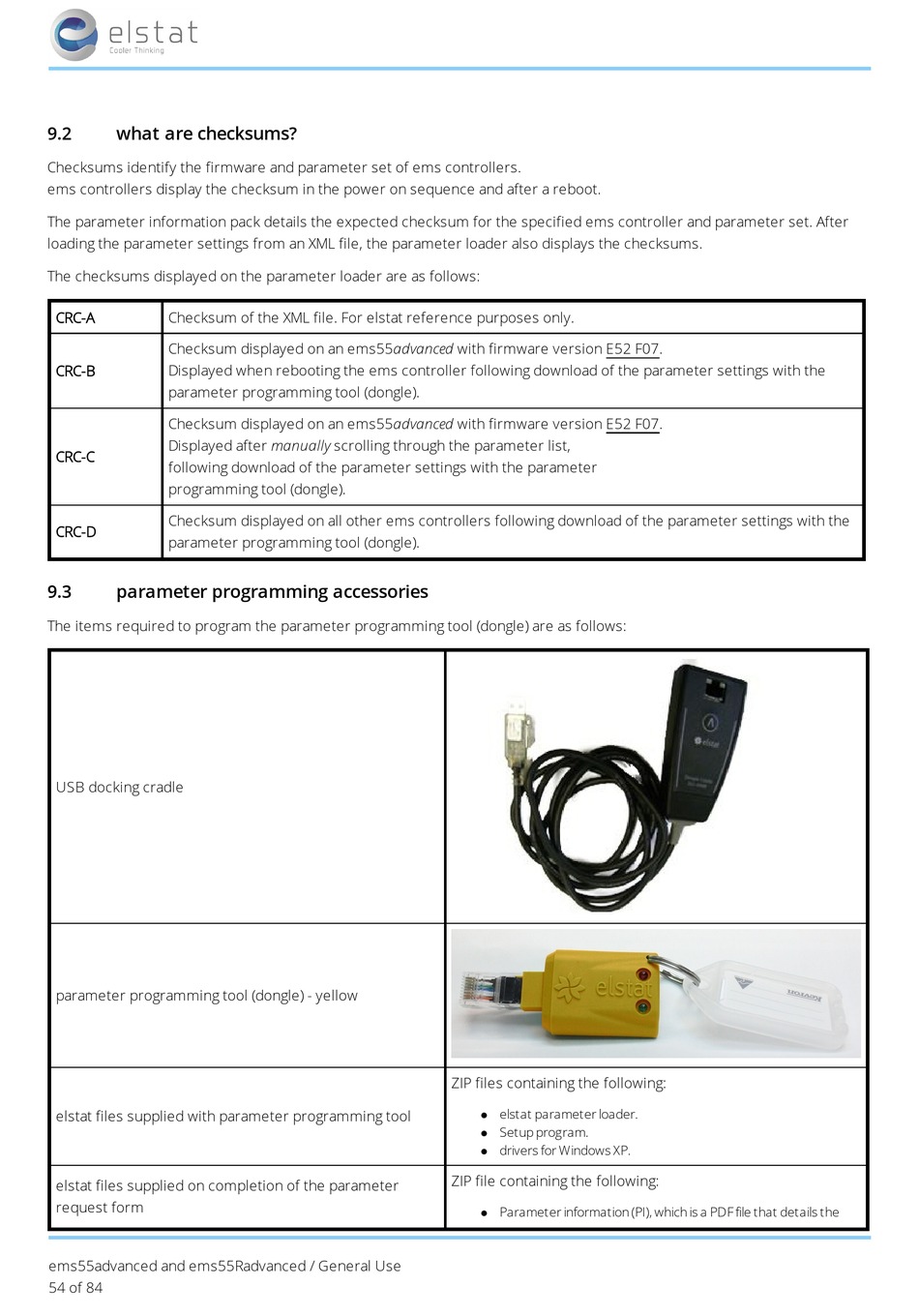

9.2

what are checksums?

Checksums identify the firmware and parameter set of ems controllers.
ems controllers display the checksum in the power on sequence and after a reboot.
The parameter information pack details the expected checksum for the specified ems controller and parameter set. After
loading the parameter settings from an XML file, the parameter loader also displays the checksums.
The checksums displayed on the parameter loader are as follows:
CRC-A Checksum of the XML file. For elstat reference purposes only.
Checksum displayed on an ems55advanced with firmware version E52 F07.
CRC-B Displayed when rebooting the ems controller following download of the parameter settings with the
parameter programming tool (dongle).
Checksum displayed on an ems55advanced with firmware version E52 F07.
Displayed after manually scrolling through the parameter list,
CRC-C
following download of the parameter settings with the parameter
programming tool (dongle).
Checksum displayed on all other ems controllers following download of the parameter settings with the
CRC-D
parameter programming tool (dongle).
9.3

parameter programming accessories

The items required to program the parameter programming tool (dongle) are as follows:
USB docking cradle
parameter programming tool (dongle) - yellow
elstat files supplied with parameter programming tool
elstat files supplied on completion of the parameter
request form
ems55advanced and ems55Radvanced / General Use
54 of 84
ZIP files containing the following:
elstat parameter loader.
l
Setup program.
l
drivers for Windows XP.
l
ZIP file containing the following:
Parameter information (PI), which is a PDF file that details the
l
