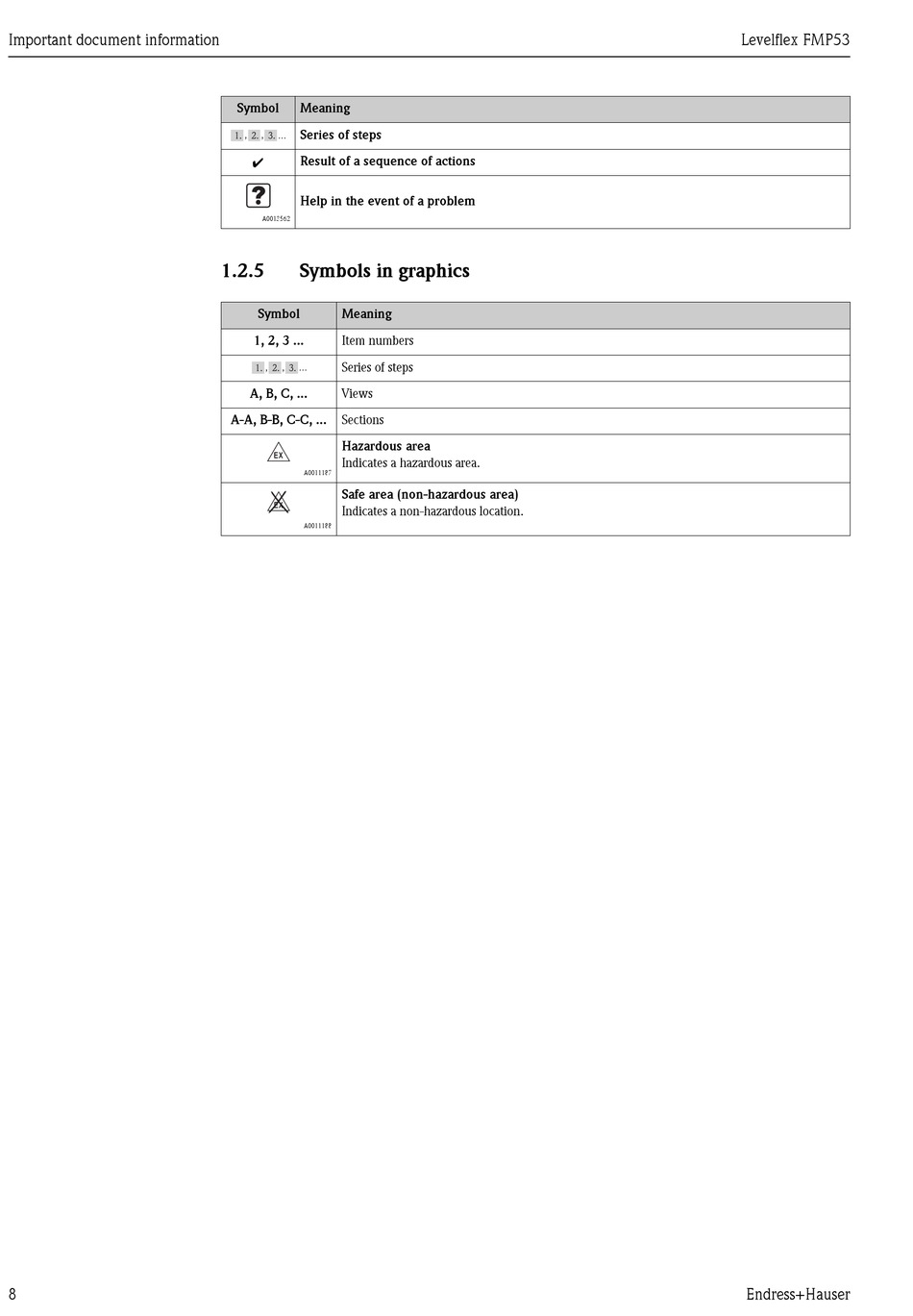

Important document information
8
Symbol
Meaning
Series of steps
,
,
...
Result of a sequence of actions
Ã
Help in the event of a problem
A0013562
1.2.5
Symbols in graphics
Symbol
Meaning
1, 2, 3 ...
Item numbers
Series of steps
,
,
...
A, B, C, ...
Views
A-A, B-B, C-C, ...
Sections
Hazardous area
-
Indicates a hazardous area.
A0011187
Safe area (non-hazardous area)
.
Indicates a non-hazardous location.
A0011188
Levelflex FMP53
