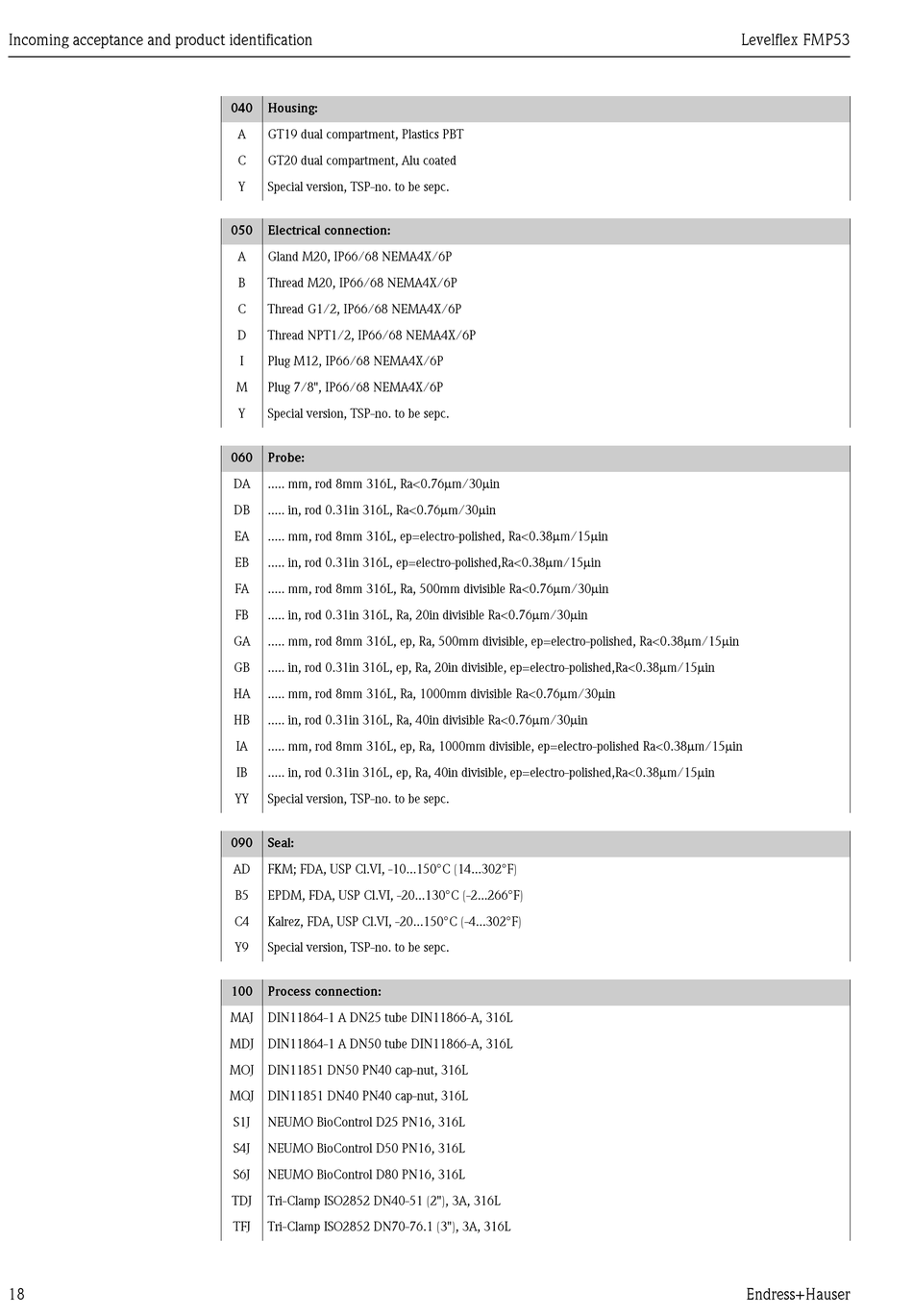

Incoming acceptance and product identification

040

Housing:

GT19 dual compartment, Plastics PBT

GT20 dual compartment, Alu coated

Special version, TSP-no. to be sepc.

050

Electrical connection:

Gland M20, IP66/68 NEMA4X/6P

Thread M20, IP66/68 NEMA4X/6P

Thread G1/2, IP66/68 NEMA4X/6P

Thread NPT1/2, IP66/68 NEMA4X/6P

Plug M12, IP66/68 NEMA4X/6P

Plug 7/8", IP66/68 NEMA4X/6P

Special version, TSP-no. to be sepc.

060

Probe:

..... mm, rod 8mm 316L, Ra<0.76mm/30min

..... in, rod 0.31in 316L, Ra<0.76mm/30min

..... mm, rod 8mm 316L, ep=electro-polished, Ra<0.38mm/15min

..... in, rod 0.31in 316L, ep=electro-polished,Ra<0.38mm/15min

..... mm, rod 8mm 316L, Ra, 500mm divisible Ra<0.76mm/30min

..... in, rod 0.31in 316L, Ra, 20in divisible Ra<0.76mm/30min

..... mm, rod 8mm 316L, ep, Ra, 500mm divisible, ep=electro-polished, Ra<0.38mm/15min

..... in, rod 0.31in 316L, ep, Ra, 20in divisible, ep=electro-polished,Ra<0.38mm/15min

..... mm, rod 8mm 316L, Ra, 1000mm divisible Ra<0.76mm/30min

..... in, rod 0.31in 316L, Ra, 40in divisible Ra<0.76mm/30min

..... mm, rod 8mm 316L, ep, Ra, 1000mm divisible, ep=electro-polished Ra<0.38mm/15min

..... in, rod 0.31in 316L, ep, Ra, 40in divisible, ep=electro-polished,Ra<0.38mm/15min

Special version, TSP-no. to be sepc.

090

Seal:

FKM; FDA, USP Cl.VI, -10...150°C (14...302°F)

EPDM, FDA, USP Cl.VI, -20...130°C (-2...266°F)

Kalrez, FDA, USP Cl.VI, -20...150°C (-4...302°F)

Special version, TSP-no. to be sepc.

100

Process connection:

MAJ

DIN11864-1 A DN25 tube DIN11866-A, 316L

MDJ

DIN11864-1 A DN50 tube DIN11866-A, 316L

MOJ DIN11851 DN50 PN40 cap-nut, 316L

MQJ DIN11851 DN40 PN40 cap-nut, 316L

S1J

NEUMO BioControl D25 PN16, 316L

S4J

NEUMO BioControl D50 PN16, 316L

S6J

NEUMO BioControl D80 PN16, 316L

TDJ

Tri-Clamp ISO2852 DN40-51 (2"), 3A, 316L

TFJ

Tri-Clamp ISO2852 DN70-76.1 (3"), 3A, 316L

Levelflex FMP53

Endress+Hauser
