Levelflex FMP53
Endress+Hauser
6.1.4

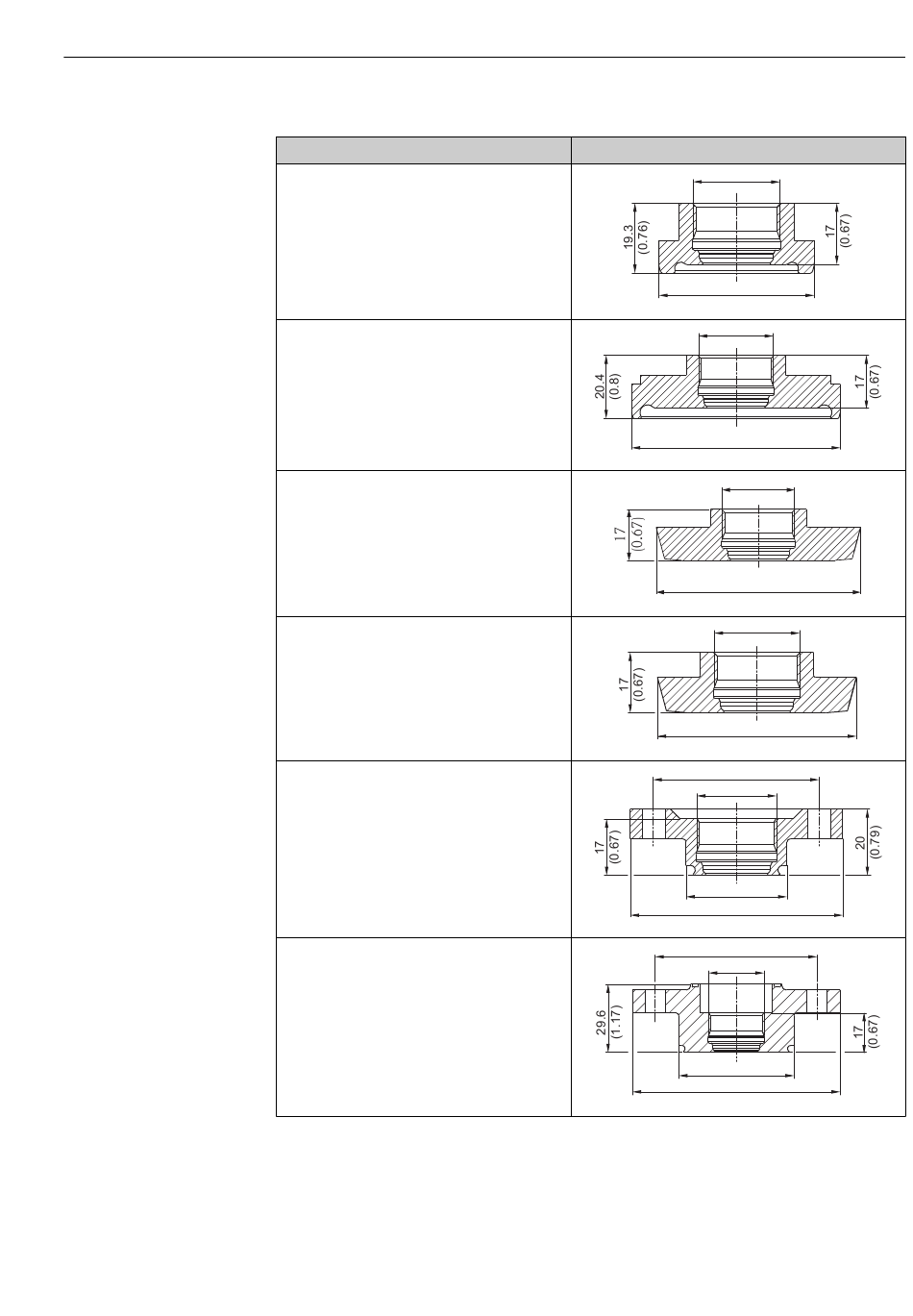

FMP53: Dimensions of process connection
Version
MAJ
DIN11864-1 A DN25 tube DIN11866-A, 316L
MDJ
DIN11864-1 A DN50 tube DIN11866-A, 316L
MOJ
DIN11851 DN50 PN40 cap-nut, 316L
MQJ
DIN11851 DN40 PN40 cap-nut, 316L
S1J
NEUMO BioControl D25 PN16, 316L
S4J
NEUMO BioControl D50 PN16, 316L
(Not available with Probe Design "Sensor compact",
feature 600, option MA)
Dimensions [mm (inch)]
M24x1.5
ø42.9 (ø1.69)
M24x1.5
ø66.9 (ø2.63)
M24x1.5
ø68 (ø2.68)
M24x1.5
56 (ø2.2)
ø
ø50 (ø1.97)
M24x1.5
ø30.4 (ø1.2)
ø56 (ø2.2)
ø70 (ø2.76)
M24x1.5
ø49.9 (ø1.96)
ø90 (ø3.54)
Mounting
A0012763
A0012764
A0012766
A0012765
A0012767
A0012768
25
