Mounting

22
6

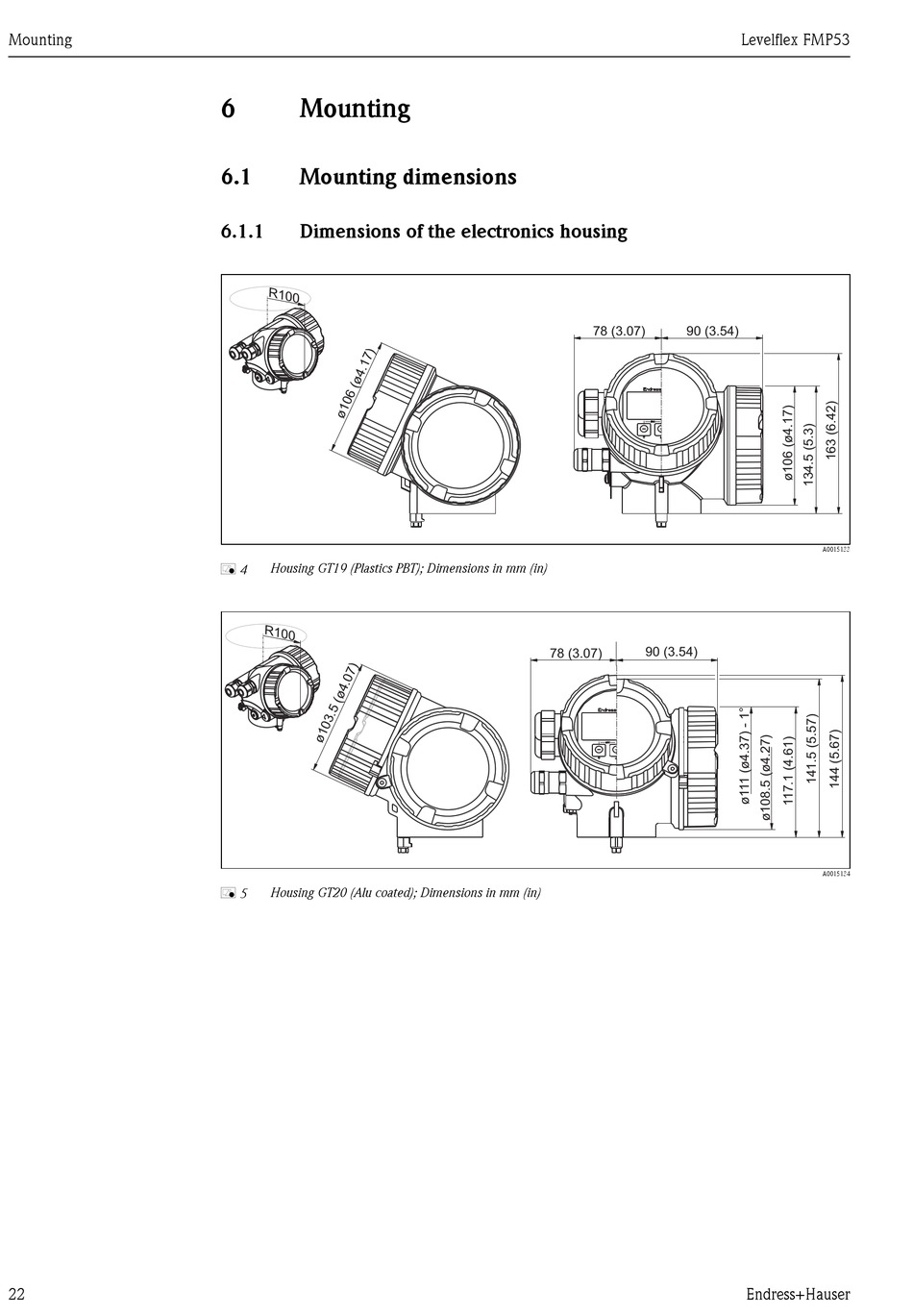

Mounting
6.1

Mounting dimensions

6.1.1

Dimensions of the electronics housing

Housing GT19 (Plastics PBT); Dimensions in mm (in)
å 4
Housing GT20 (Alu coated); Dimensions in mm (in)
å 5
78 (3.07)
90 (3.54)
90 (3.54)
78 (3.07)
Levelflex FMP53
A0015133
A0015134
Endress+Hauser
