6. Interface Setting [I/F]

1
2
4

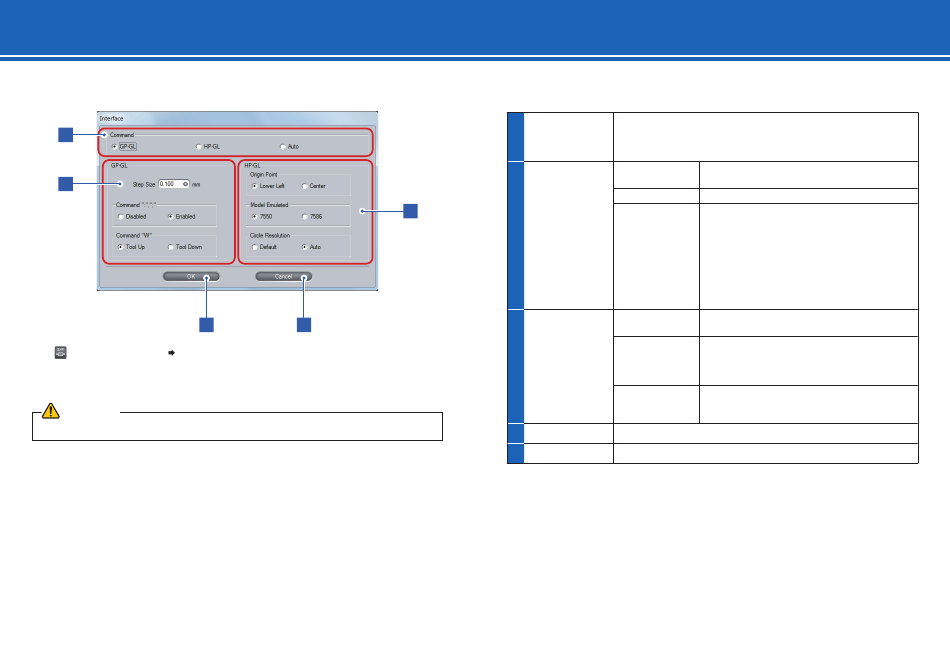

Click [I/F] on the main screen ( page 9) to open the [Interface] screen.
The settings related to Interface can be done in the [Interface] screen.
CAUTION
When the controller is started from the driver software, select the GP-GL command.
3
5
2 3
Specify the plotting command. Select one of GP-GL command, HP-
GL command or AUTO. Select [Auto] to automatically determine
1
Command
the command. (User's Manual Chapter 11 "Setting of controls from
Computer")
Step Size
Command ":",";"
2
GP-GL
Command "W"
Origin Point
Model Emulated
3
HP-GL
Circle Resolution
4
OK Saves the settings and closes the [Interface] screen.
5
Cancels the settings and closes the [Interface] screen.
Cancel
Specifi es the movement distance per step. Select
from 0.100mm, 0.050mm, 0.025mm, and 0.010mm.
Enables/disables Command ":",";".
Specifi es whether to raise the tool or keep the
current tool state before moving the tool to the
start point when "W", instruction to draw an arc,
is issued. When [Tool Down] is selected, the tool
moves, keeping the same state (raised or lowered)
as one right before the instruction is issued. When
[Tool Up] is selected, the tool is raised and then
moved. This setting is valid only when the tool is a
cutter blade.
Sets the lower left or center of the plotting area as
the origin point.
Sets the response to the "OI" command. Select
[7550] to set 7550 as the value of the response to
"OI" command. Select [7586] to set 7586 as the
value of the response to "OI" command.
Specifi es whether to automatically set the
resolution or use the fi xed value of 5 degrees when
the instruction to draw an arc is issued.
