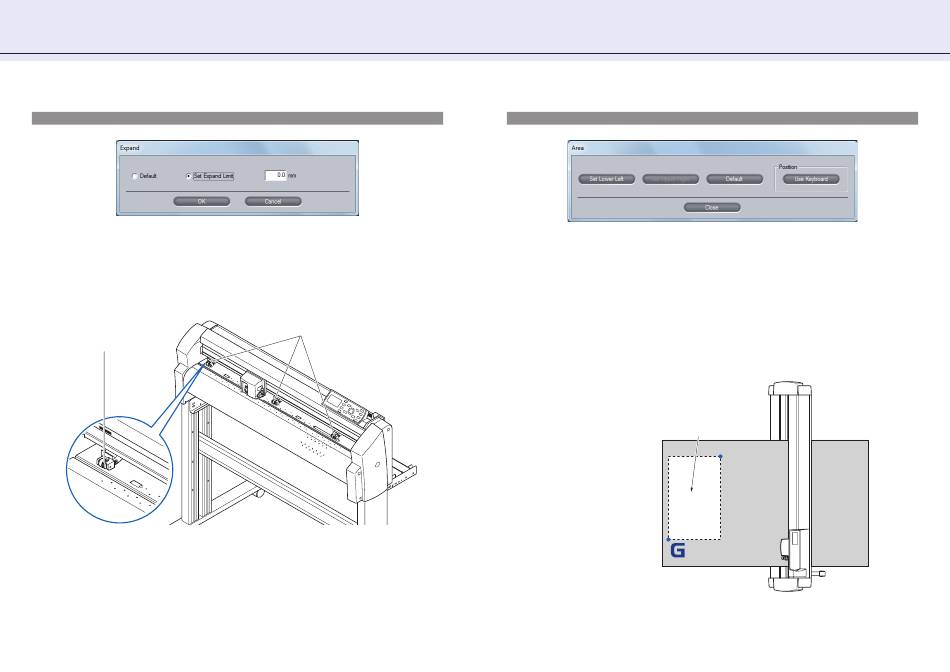

Expand Setting
Broaden or narrow the width of the plotting area.
When the initial value ([Default]) is used, the width expands to the internal edge of the push rollers (See
the fi gure below).
Select [Set Expand Limit] and enter a negative value to obtain narrower width or enter a positive value
to obtain broader width than when the initial value is used.
The possible values are from -10.0 to +10.0 mm.
Edge position
Push roller
Area Setting
Set the plotting area that you want. The square specifi ed by the points that are set by using [Set
Upper Right] and [Set Lower Left] is the plotting area.
This setting is used when, for example, you want to plot on a free area on the plotted media.
To set a plotting area, perform the following procedure:
1. Click [Position (Use Keyboard)].
2. Press one of the [←↑→↓] keys on the keyboard to move the tool to the position that you want to
set as the lower left point and click [Set Lower Left].
3. Press one of the [←↑→↓] keys on the keyboard to move the tool to the position that you want to
set as the upper right point and click [Set Upper Right].
To use the setting area for use in media setting, select [Default].
<For rear loading/sheet>
2 2
5. Set t in g A rea Par am et er s [ A R EA ]
It will only cut
within this area
Upper right set
position
Lower left set position
Image already cut
