8. Media Setting [MEDIA]

1
2
3
4
5
6
10

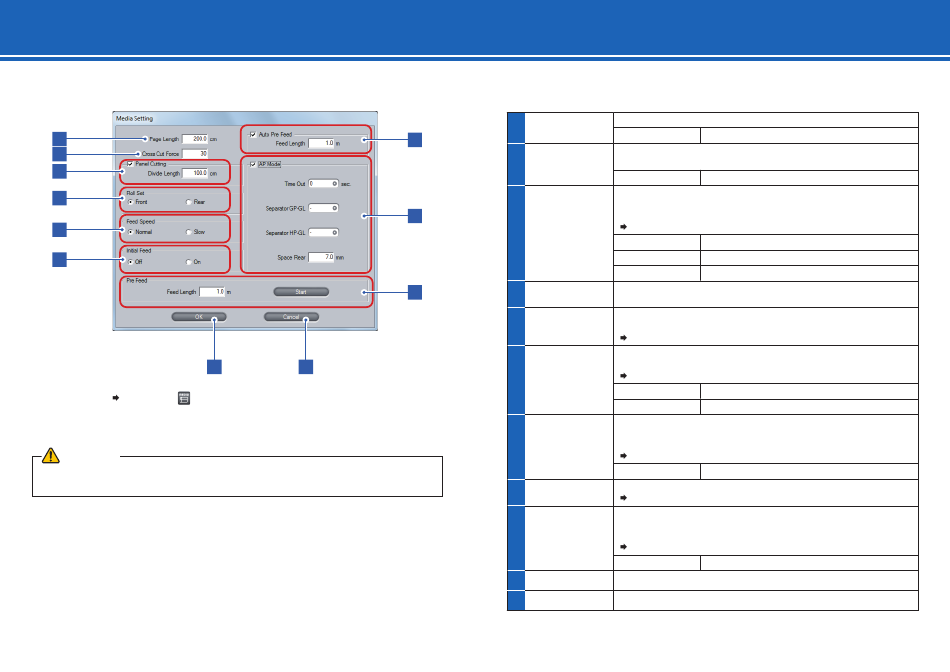

In the main screen ( page 9), click [MEDIA] to open the [Media Setting] screen.
In the [Media Setting] screen, you set values regarding to media.
CAUTION
Be sure to specify a longer length in [Page Length] than the plotting data. Plotting is performed only within the
length specifi ed by the [Page Length].
7
8
9
11
2 8
Set the length of 1 page when using the roll media.
1
Page Length
Setting range
Specify the cutting force for cross cut. Set a smaller value for thin media
2
and a larger value for thick media.
Cross Cut Force
Setting range
Check this to cut after dividing by a specifi ed partition length, in order to
prevent skewing of the length.
* Unavailable for FC8000.
For the Panel Cutting, see page 27.
3
Panel Cutting
On
Off
Setting range
Specify the direction in which roll media has been loaded: from the front
4
Roll Set
or rear of the plotter. Select either [Front] or [Rear].
Specify the feed speed for the Pre Feed. Normally use [Normal].
5
Feed Speed Set this setting to [Slow] when heavy or slippery media is used.
What is Pre Feed (page 29)
Specify whether pre feed should be performed for the length specifi ed
by [Page Length] when the set lever is raised after the media is loaded.
6 What is Pre Feed (page 29)
Initial Feed
On
Off
When checked, pre feed is performed automatically when the plotting
data is received. The pre feed is performed for the length specifi ed by
7
[Feed Length].
Auto Pre Feed
What is Pre Feed (page 29)
Setting range
When checked, the mode for AP (apparel industry) becomes available.
8
AP Mode
AP Mode (page 29)
Pre feed can be manually started.
Check [Pre Feed], specify the feed length, and click [Start] to perform
9
pre feed once.
Pre Feed
What is Pre Feed (page 29)
Setting range
10
OK Saves the settings and closes the [Media Setting] screen.
11
Cancel Cancels the settings and closes the [Media Setting] screen.
20.0 to 5000.0cm
1 ~ 48
Panel Cutting is available.
Panel Cutting is not available.
1.0 to 2000.0cm
Pre feed is performed.
Pre feed is not performed.
0.5 to 50.0 m
0.5 to 50.0 m
