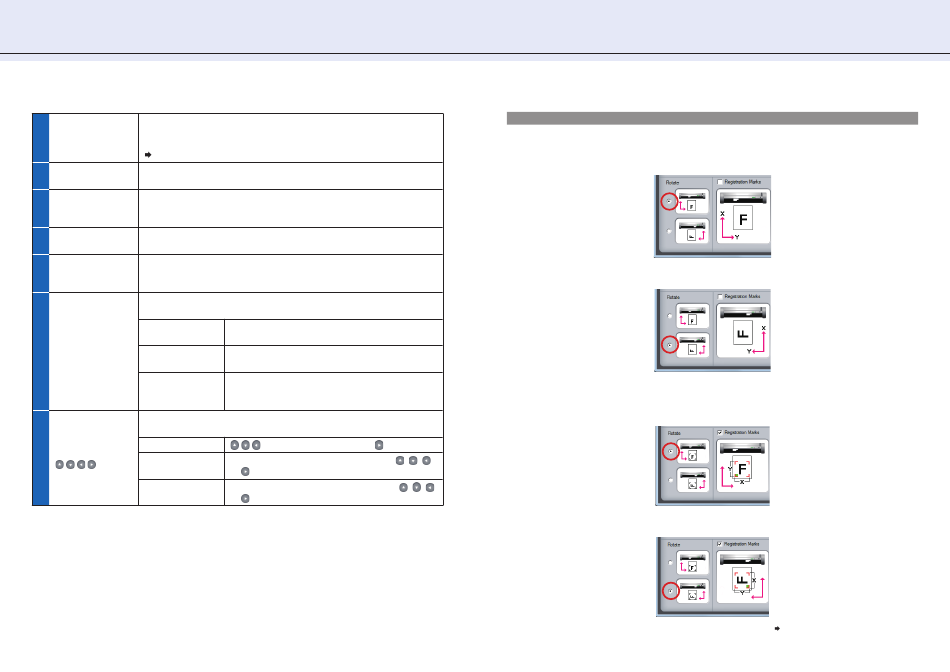

Open the [Option] screen. It is able to check the error data and
conditions of the Plotter main unit, and also to import/export the set
19
Option
content.
10. Option Settings (page 31)
20
About... Displays the version information of your controller.
Displays the help of the controller.
21
Help... Pressing the [F1] key on the computer keyboard at each screen displays
the help on the setting item.
22
Origin Sets the current tool position as an origin point.
Cuts off the media at the current tool position.
23
Cross Cut In the plotter, a message that tells you to replace the media will be
displayed on the LCD screen if the sheet media is set.
Enables the position to be moved by using the [←↑↓→] keys on the
computer keyboard.
Up/down/left/right
24
*3
Use Keyboard
High-speed
movement
Skew
Moves the tool to the desired position.
Up/down/left/right
Position
25
High-speed
*3
movement
Low-speed
movement
*1: Displayed only when the controller is started form the print menu.
*2: Displayed only when the controller is started form the Start menu.
*3: Can be operated when the plotter is in READY status.
Press one of the [←↑↓→] keys on the keyboard.
Press the [Ctrl] key and one of the [←↑↓→] keys on
the keyboard at the same time.
Press the up/down arrow key and the left/right
arrow key at the same time. For example, [←] and
[↑] or [↓] and [→].
Press one of these buttons: .
Press the [Ctrl] key on the keyboard and ,
or at the same time.
Press the [Shift] key on the keyboard and ,
or at the same time.
Selecting Rotation
•When [Registration Marks] is off:
Set the cutting direction against the media.
To set in the plotter from upward of the image, select the upper option.
To set in the plotter from right side of the image using the roll media, select the lower option.
•When [Registration Marks] is on:
Set the direction to set the media printed by the printer in the plotter.
Select the upper option to insert the media in the plotter from the top of the image.
, ,
, ,
Select the lower option to insert the media in the plotter from the right side of the image.
For more information on registration marks, see "7. ARMS Setting [ARMS]" ( page 24).
