Note: Some sensors may consume 2 analog channels (the combined temp/humidity sensor, D-PK-DSNSR-12002,
for example).
Connecting D-Wire Sensors
Warning:
Be sure to only use a straight-through RJ-11 cable (part #D-PR-901-10A-XX, pinout below) to connect
any digital sensor port on the Cell16 to the In jack on a D-Wire sensor. Chain additional sensors to the D-Wire
sensor (using the same straight-through cables) from the Out jack on the previous sensor to the In jack on the next
(i.e. Out on sensor 4 to In on sensor 5).

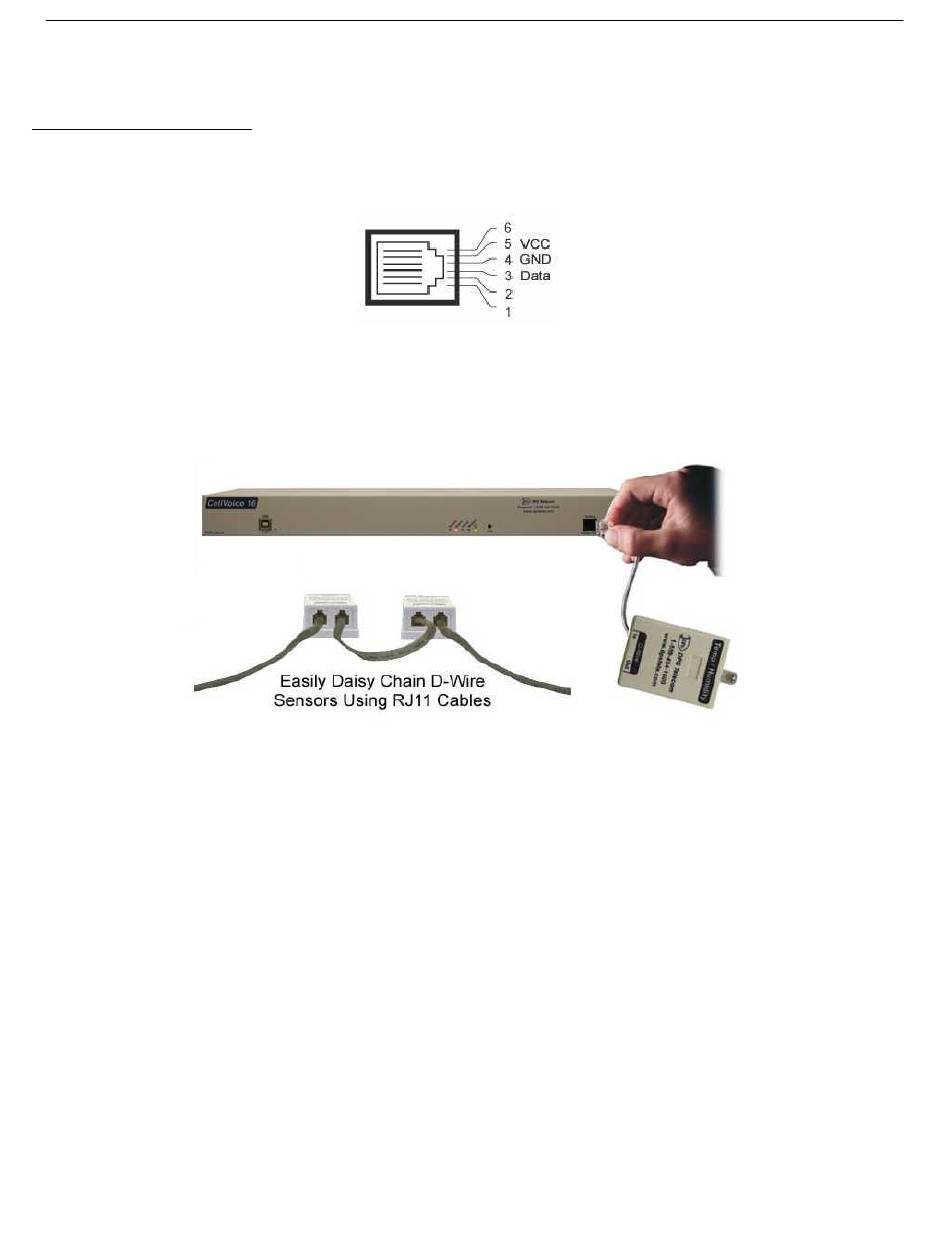

Pinout for the Cell16 and D-Wire Sensor RJ-11 jack s
The D-Wire line of sensors includes temp/humidity, additional analogs, discretes, and more. Contact DPS at 1-800-
693-0351 for information about available D-Wire sensors.
For details about configuring your sensors though the web interface, see the Sensors section of this manual.
