GPRS/CDMA Wireless Modem

The Cell16 is available with an optional GPRS/GSM or CDMA wireless modem, allowing you to report
alarms from your remote sites without LAN or dialup connections via SMS notifications over a cellular
band.
On the back of your Cell16 with a wireless modem, you'll see the antenna node protrude from the back
panel of the unit and a label above the node indicating the type of modem - GPRS/GSM (Sprint) or
CDMA (Verizon) - installed in your unit.
Note: You cannot access to your Cell16 's web or TTY interfaces over cellular connection. You must
configure the unit via the front-side craft connection or over LAN.
Note: If your Cell16 model is CDMA enabled: The Electronic Serial Number (ESN) will be located on the
back of the unit (You will not need to open up the unit to retrieve the ESN). Your cellular carrier
will need this number to enable your Cell16 's wireless modem.
To Enable Wireless Alarm Reporting:
1. Disconnect power connections to the Cell16
2. Remove the 3 screws on the bottom of the Cell16 near the front panel.
3. Remove the 3 screws on the top of the Cell16 near the back panel.
4. Remove the Cell16 's cover.
5. If your Cell16 model is GPRS/GSM enabled: Insert a SIM card in the available modem slot.
6. Replace the Cell16 's top-cover and fasten it to the Cell16 with the 6 screws you removed in steps 1
and 2.
7. Attach the antenna that came with your Cell16 (2-901-00802-01) to the node labeled Antenna, and
tighten the nut to fasten it to the Cell16 .

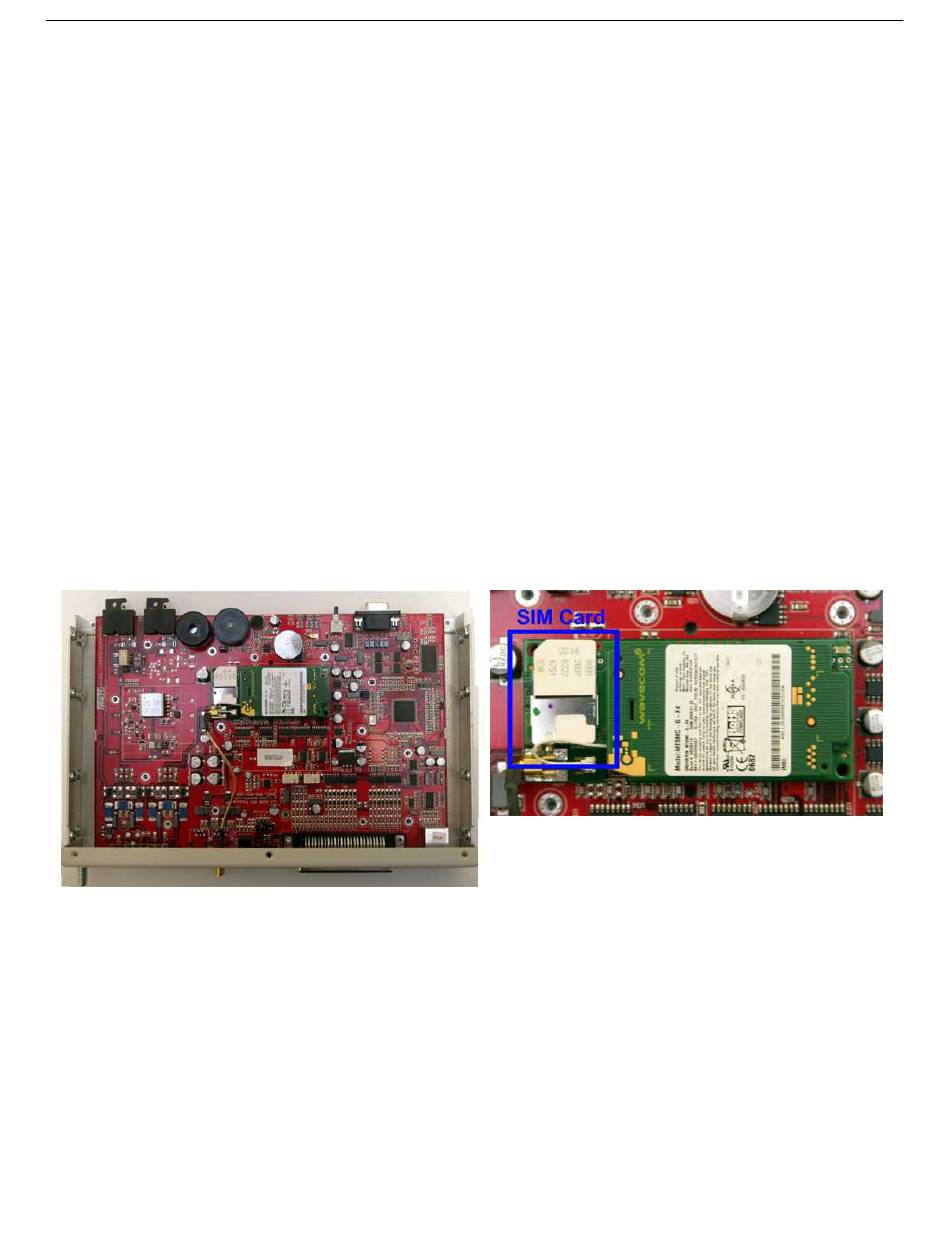

Open your Cell16 to insert your SIM card or take down your ESN
