Chapter 2: Jumpers and Connectors

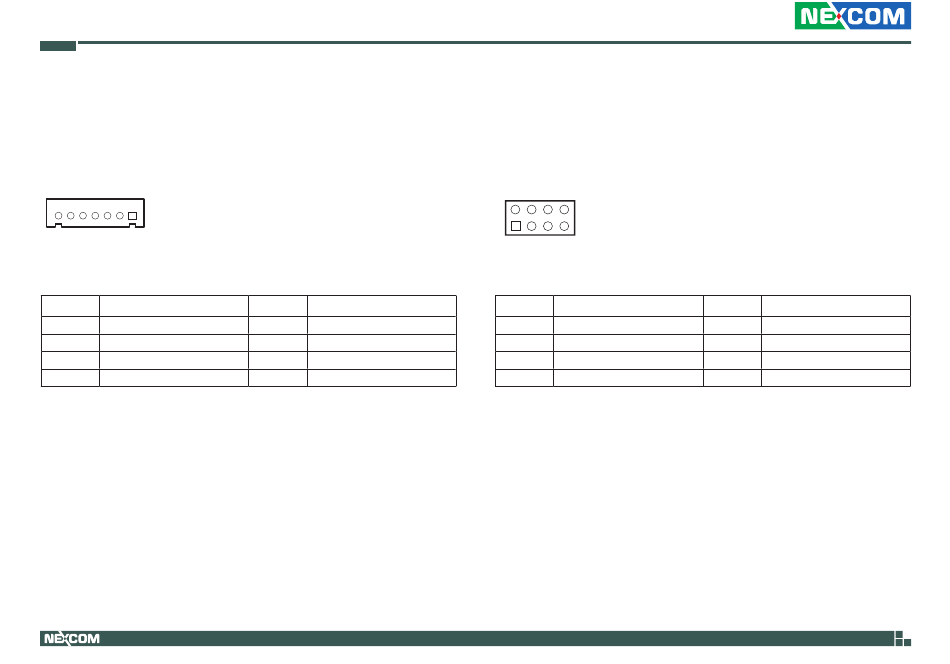

Panel Inverter Power Connector
Connector type: 1x7 JST, 7-pin header, 2.0mm pitch
Connector location: JLV1
7
1
Pin
Definition
1
VCC5
3
+V_INV
5
GND
7
M_BKLTEN_R
Copyright © 2016 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
+V_INV
4
PL_BKLTCTRL
6
GND
Panel Resolution Pin Header
Connector type: 2x4 8-pin header, 2.0mm pitch
Connector location: JP4
2
8
1
7
Pin
Definition
1
CH7511_GPIO3
3
CH7511_GPIO2
5
CH7511_GPIO1
7
CH7511_GPIO0
23
Pin
Definition
2
GND
4
GND
6
GND
8
GND
NEX 614 User Manual
