Chapter 2: Jumpers and Connectors

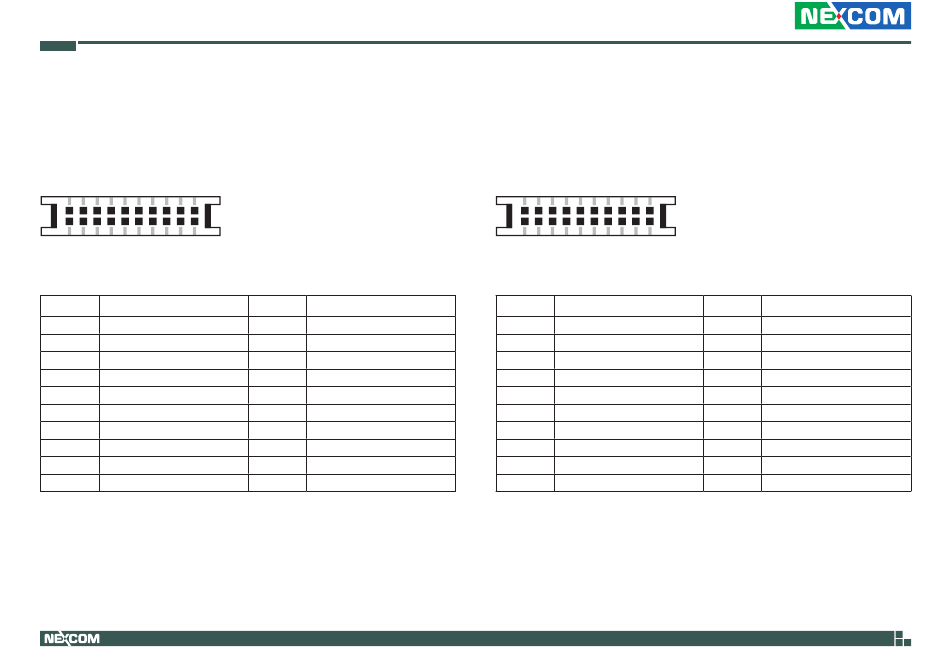

LVDS1 Connector A

Connector type: 2x10 20-pin header, 1.25mm pitch
Connector location: JLV2
1 19
2 20
Pin Definition
1 LVDS_DDC_CLK
3 +VCC_LCD
5 LVDSA_LDC3P
7 LVDSA_LDC3N
9 GND
11 LVDSA_LL1CP
13 LVDSA_LL1CP
15 GND
17 LVDSA_LDC2P
19 LVDSA_LDC2N
Copyright © 2016 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 LVDS_DDC_DATA
4 LVDSA_LDC0P
6 LVDSA_LDC0N
8 +VCC_LCD
10 LVDSA_LDC1P
12 LVDSA_LDC1N
14 GND
16 +V_INV
18 +V_INV
20 GND

LVDS1 Connector B

Connector type: 2x10 20-pin header, 1.25mm pitch
Connector location: JLV3
1
2
Pin Definition
1 LVDS_DDC_CLK
3 +VCC_LCD
5 LVDSB_LDC7P
7 LVDSB_LDC7N
9 GND
11 LVDSB_LL2CP
13 LVDSB_LL2CN
15 GND
17 LVDSB_LDC6P
19 LVDSB_LDC6N
22
19
20
Pin Definition
2 LVDS_DDC_DATA
4 LVDSB_LDC4P
6 LVDSB_LDC4N
8 +VCC_LCD
10 LVDSB_LDC5P
12 LVDSB_LDC5N
14 GND
16 +V_INV
18 +V_INV
20 GND
