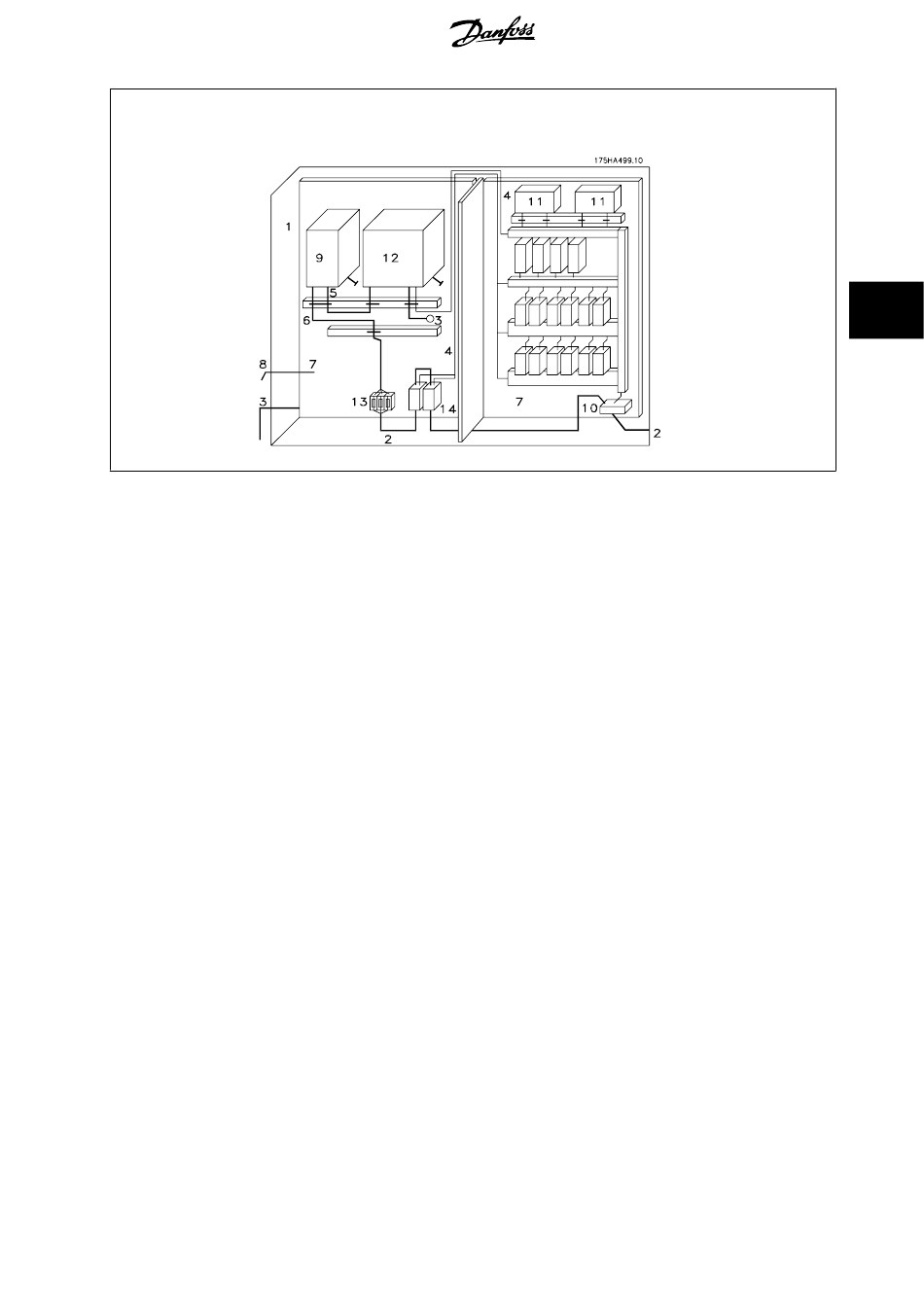

AHF 005/010 Operating Instructions
1.
Panel
2.
Mains supply wire
3.
Motor wiring
4.
Control wiring
5.
Wiring between harmonic filter and frequency converter
6.
Mains supply wire of filter module
7.
Mounting plate (common star point)
8.
Potential equalisation
9.
Filter module AHF 0xx
10.
Mains connection
11.
PLC
12.
Frequency converter
13.
Mains fuses
14.
Mains circuit breaker
®
MG.80.C1.02 - VLT
is a registered Danfoss trademark
4 Installation
4
25
