2.6

Hardware Installation

This section provides information on how to install the IMB700 Series.
2.6.1

Installing the CPU

The LGA4189 processor socket comes with a cover to protect the processor. Please
install the processor into the CPU socket step by step as illustrated below.

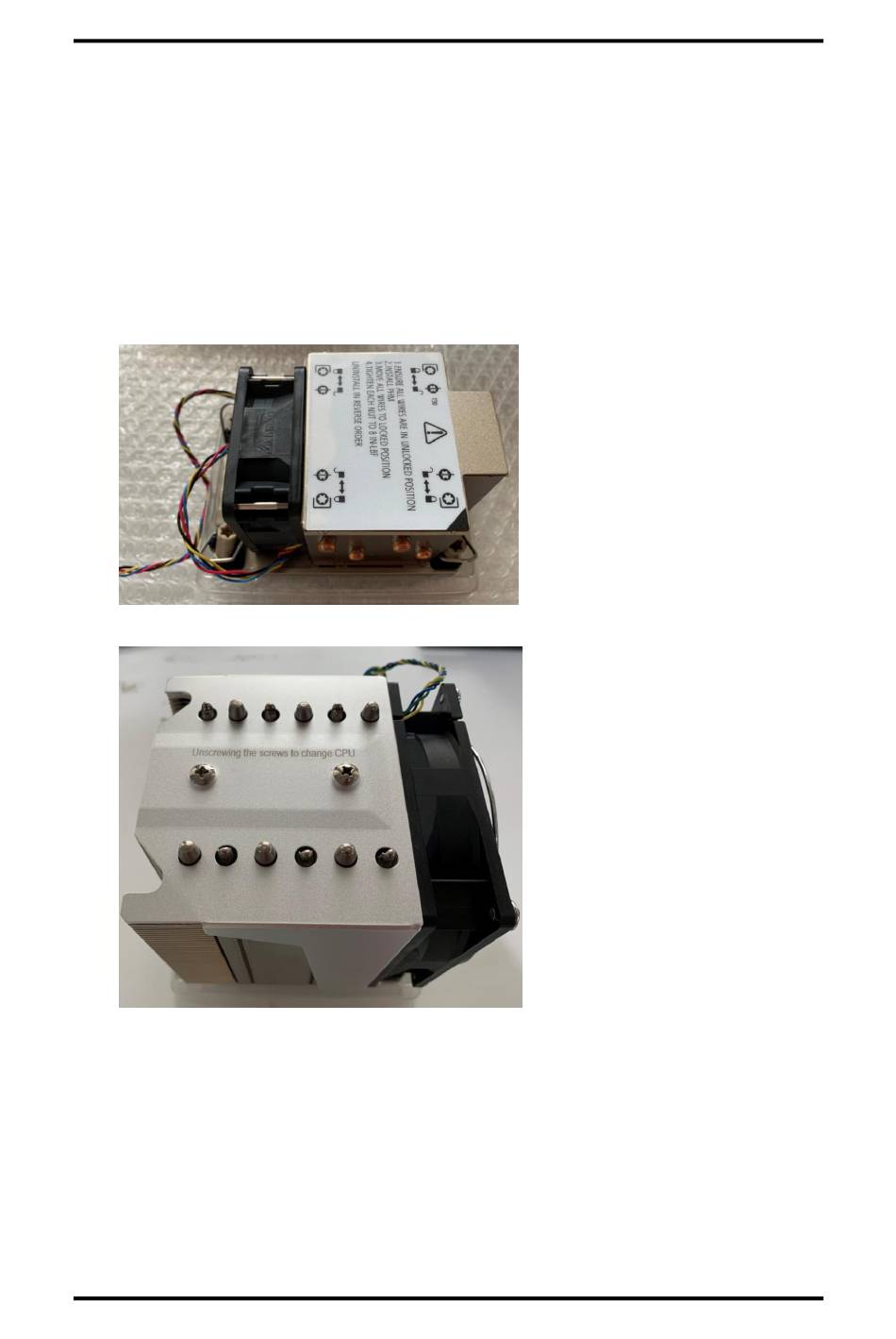

There are two cooler modules as shown in the following pictures:
This cooler is for CPU under 205 Watts.
This cooler is for CPU above 205 Watts.
Board and Pin Assignments
IMB700 LGA4189 ATX Motherboard
21
