IMB700 LGA4189 ATX Motherboard
2.4.4

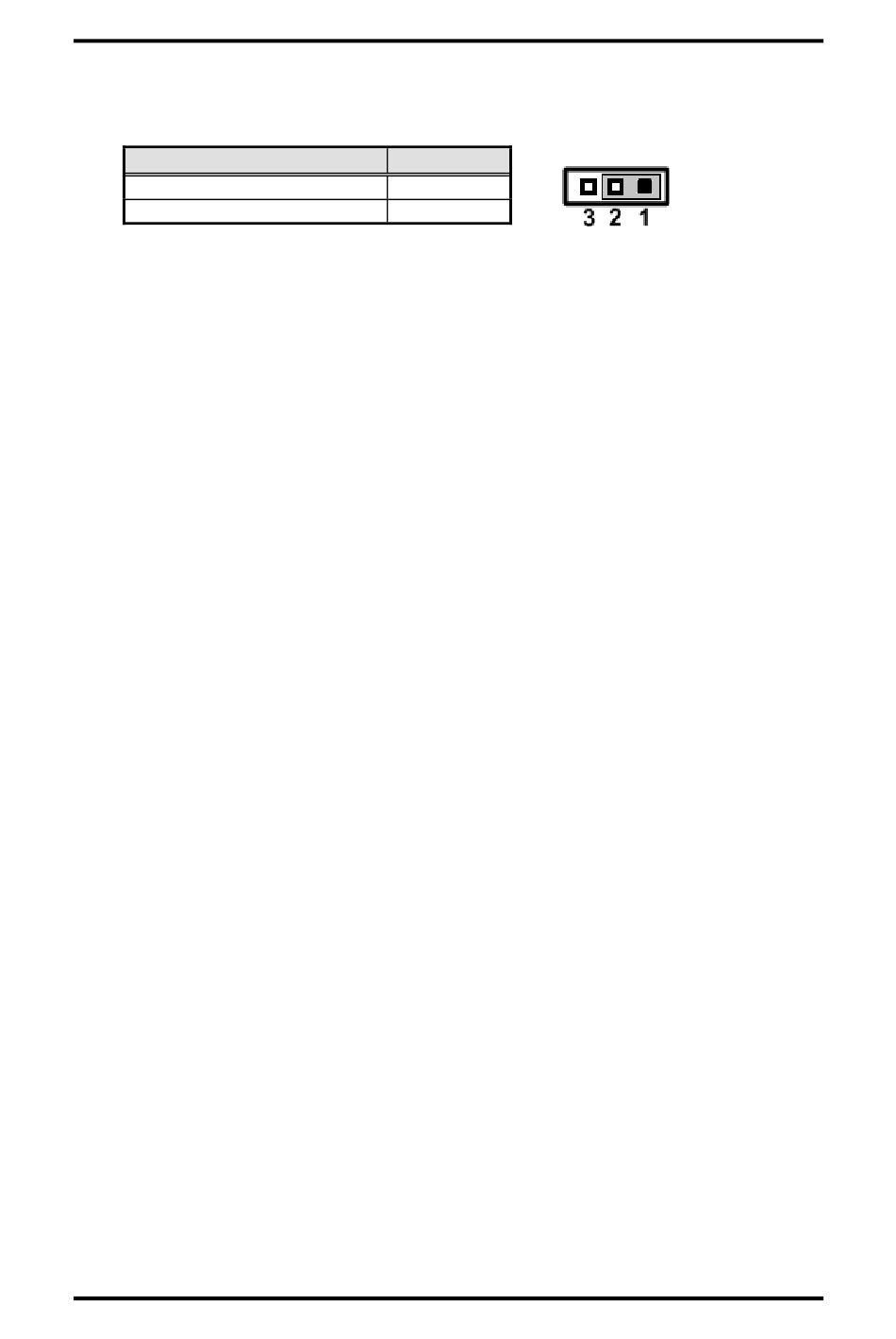

AT/ATX Mode Select (JP20)

This 3x1-pin p=2.54mm jumper allows you to select AT or ATX power mode.
Function
AT mode (Default)
ATX mode
10
Setting
1-2 close
2-3 close
Board and Pin Assignments
