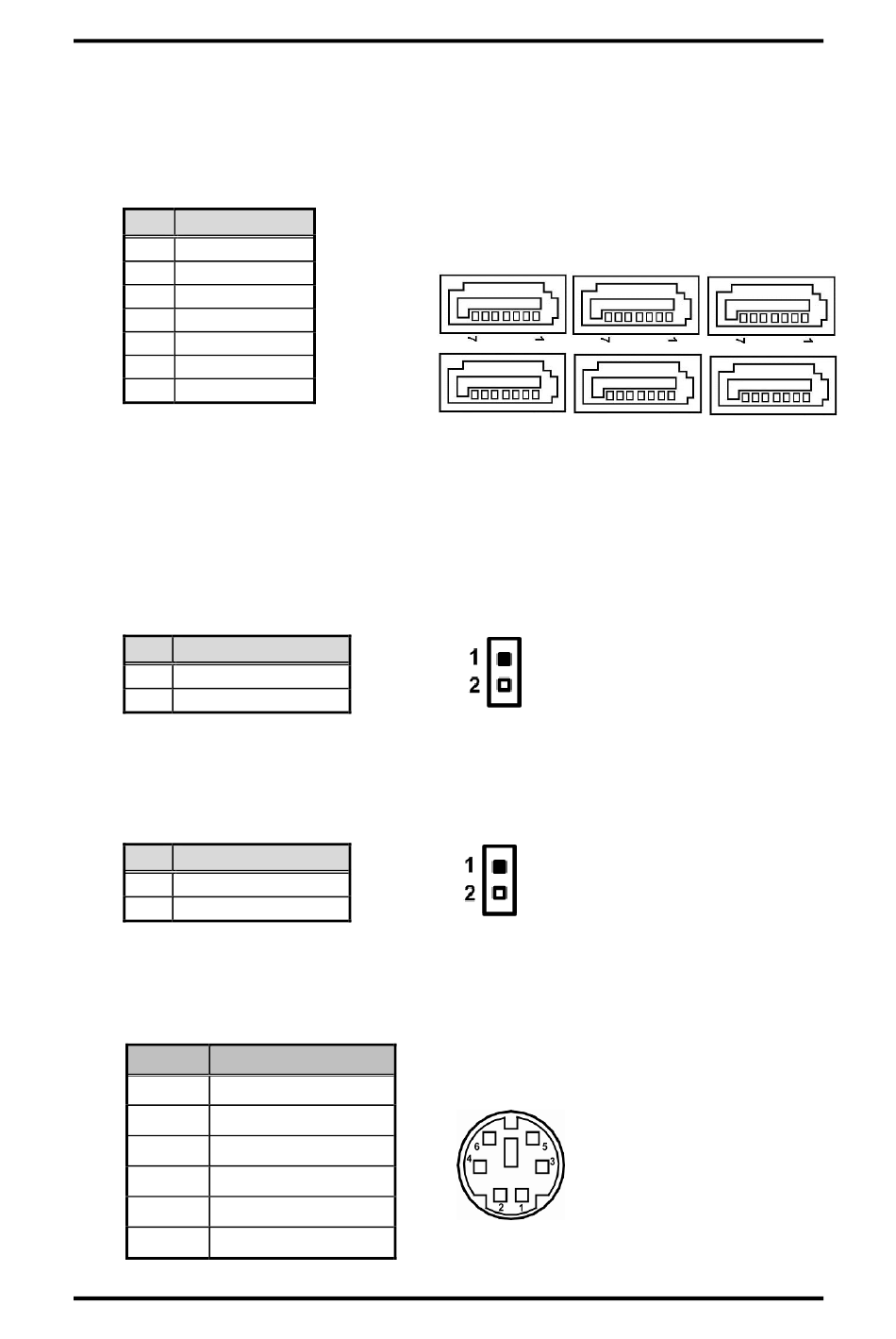

SATA 3.0 Connectors (SATA1 ~ SATA6)

These Serial Advanced Technology Attachment (Serial ATA or SATA) connectors are for
SATA 3.0 interface allowing up to 6.0Gb/s data transfer rate. It is a computer bus
interface for connecting to devices such as a hard disk drive.
Pin Signal
1 GND
2 SATA_TX+
3 SATA_TX-
4 GND
5 SATA_RX-
6 SATA_RX+
7 GND
2.5.16

LAN Active LED connectors (JP3 and JP10)

There are two LAN active LED connectors for the front panel (2x1-pin p=2.54mm).
JP 3 is for chapter
sectio active LED.
JP 10 is for LAN2 active LED.
Pin Signal
1 P3V3_AUX
2 L1_LINK/ACT#
2.5.17

Programmable LED connectors (JP4)

JP 4 is for programmable LED connector (2x1-pin p=2.54mm).
Pin Signal
1 P3V3_AUX
2 L1_LINK/ACT#
2.5.18

Keyboard and PS/2 Mouse Connector (PS1)

The board supports a keyboard and mouse interface. Connector CN is a DIN connector
for PS/2 keyboard connection via a Y-Cable.
Pin Signal
1 Keyboard Data
2 Mouse Data
3 GND
4 VCC
5 Keyboard Clock
6 Mouse Clock
