IMB700 LGA4189 ATX Motherboard

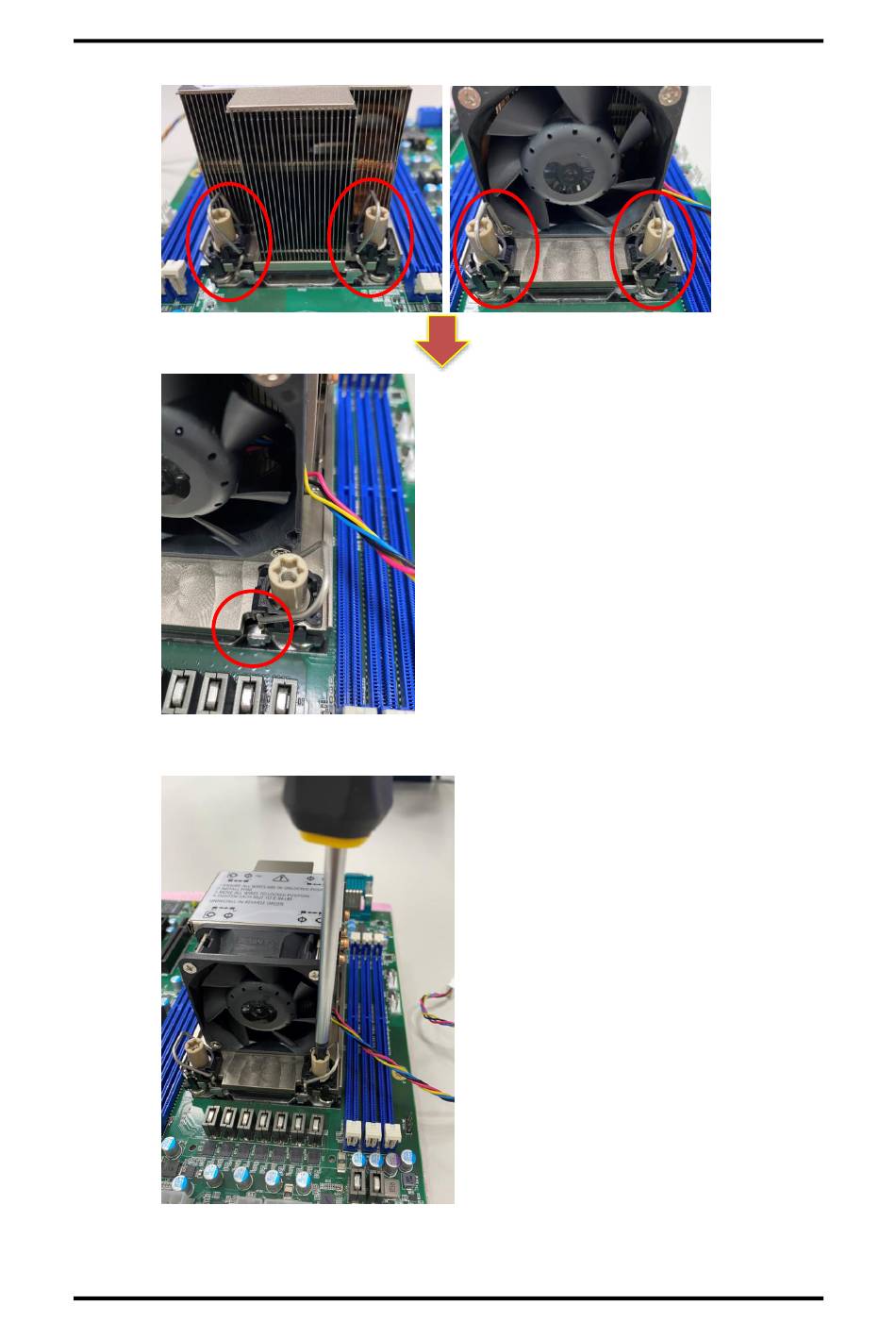

Step 5
Latch four levers on the cooler.
Step 6 Use a T30 Torx screwdriver (8in-LBF) to tighten the screws on the cooler.
Board and Pin Assignments
25
