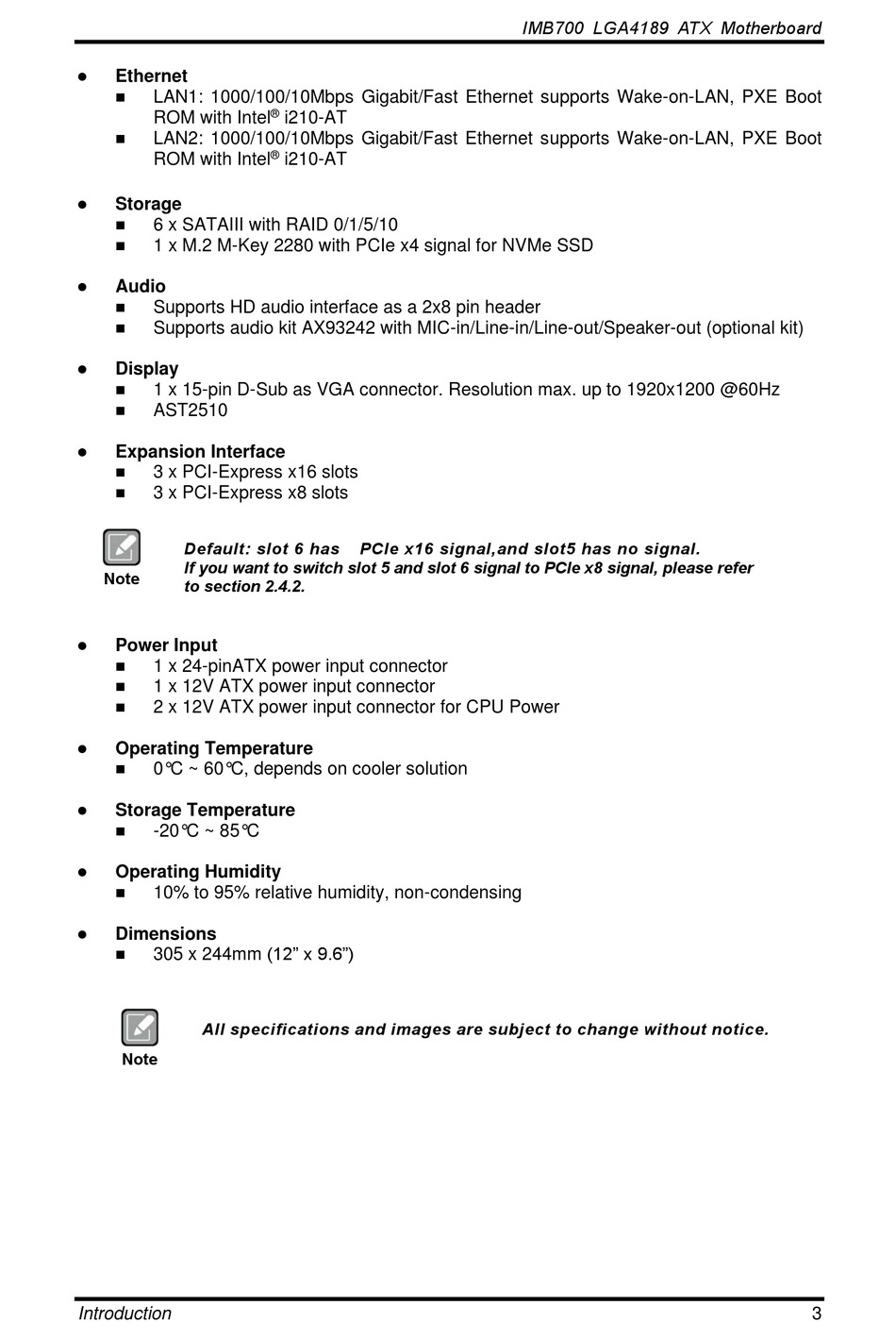

AXIOMTEK IMB700 User Manual page 9

⚫ Ethernet
◼ LAN1: 1000/100/10Mbps Gigabit/Fast Ethernet supports Wake-on-LAN, PXE Boot
ROM with Intel
◼ LAN2: 1000/100/10Mbps Gigabit/Fast Ethernet supports Wake-on-LAN, PXE Boot
ROM with Intel
⚫ Storage
◼ 6 x SATAIII with RAID 0/1/5/10
◼ 1 x M.2 M-Key 2280 with PCIe x4 signal for NVMe SSD
⚫ Audio
◼ Supports HD audio interface as a 2x8 pin header
◼ Supports audio kit AX93242 with MIC-in/Line-in/Line-out/Speaker-out (optional kit)
⚫ Display
◼ 1 x 15-pin D-Sub as VGA connector. Resolution max. up to 1920x1200 @60Hz
◼ AST2510
⚫ Expansion Interface
◼ 3 x PCI-Express x16 slots
◼
3 x PCI-Express x8 slots
Default: slot 6 has
If you want to switch slot 5 and slot 6 signal to PCIe x8 signal, please refer
Note
to section 2.4.2.
⚫ Power Input
◼ 1 x 24-pinATX power input connector
◼ 1 x 12V ATX power input connector
◼ 2 x 12V ATX power input connector for CPU Power
⚫ Operating Temperature
◼ 0°C ~ 60°C, depends on cooler solution
⚫ Storage Temperature
◼ -20°C ~ 85°C
⚫
Operating Humidity
◼ 10% to 95% relative humidity, non-condensing
⚫ Dimensions
305 x 244mm (12" x 9.6")
◼
All specifications and images are subject to change without notice.
Note
Introduction
®
i210-AT
®
i210-AT
PCIe x16 signal,and slot5 has no signal.
IMB700 LGA4189 ATX Motherboard
3
