IMB700 LGA4189 ATX Motherboard

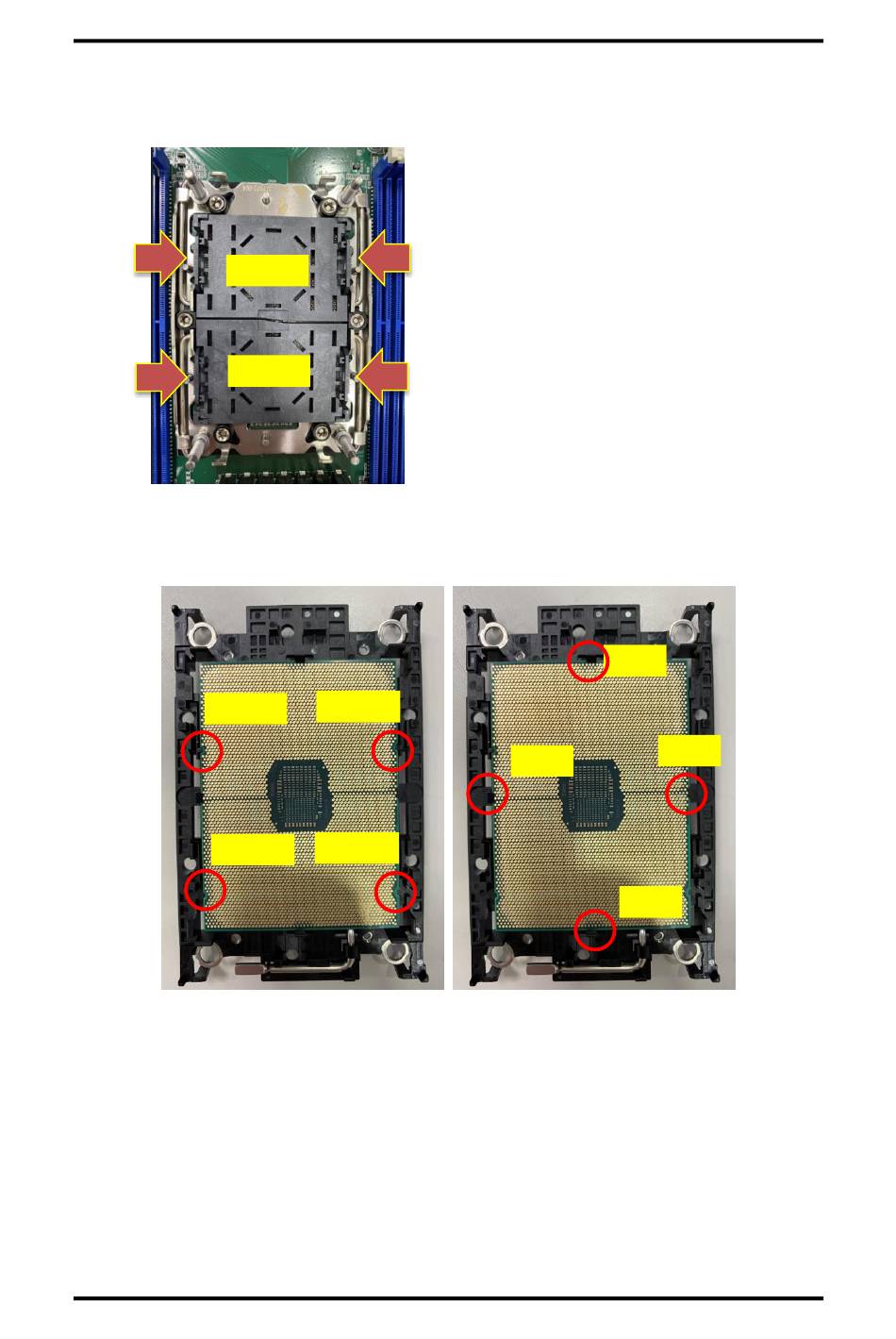

This sequence is for installing the CPU cooler under 205 Watts:

Step 1

Remove the socket protective covers. Press the load lever and release it

from the retention tab. There are two levers for each CPU socket.

Cover 1

Cover 2

Step 2

Insert the CPU onto the CPU clip and align notch A to D on the CPU clip,

then latch pin 1 to 4.

Notch A

Notch B

Notch C

Notch D

Pin 1

Pin 3

Pin 2

Pin 3
