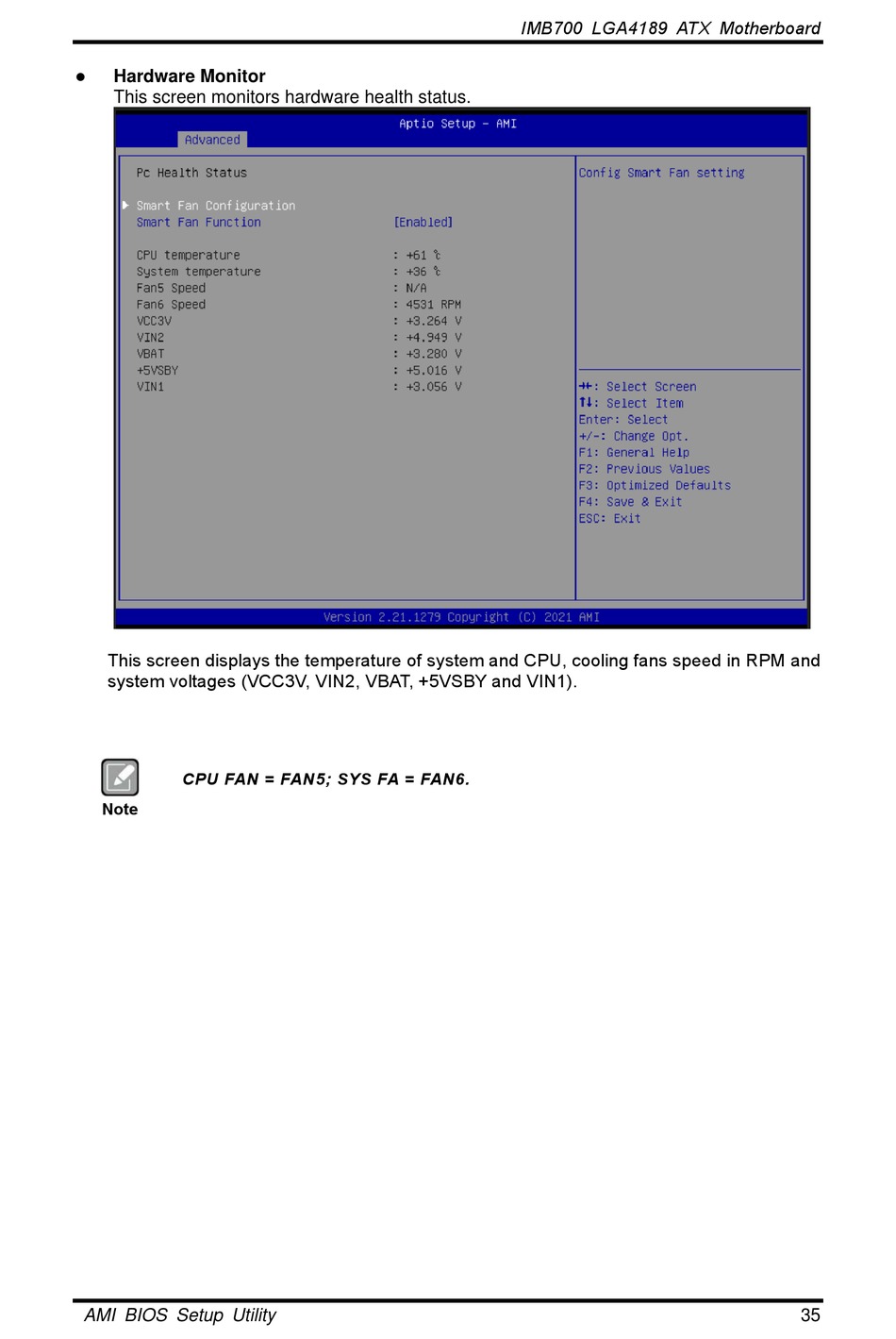

Hardware Monitor

This screen monitors hardware health status.

This screen displays the temperature of system and CPU, cooling fans speed in RPM and

system voltages (VCC3V, VIN2, VBAT, +5VSBY and VIN1).

CPU FAN = FAN5; SYS FA = FAN6.

Note

AMI BIOS Setup Utility

IMB700 LGA4189 ATX Motherboard
