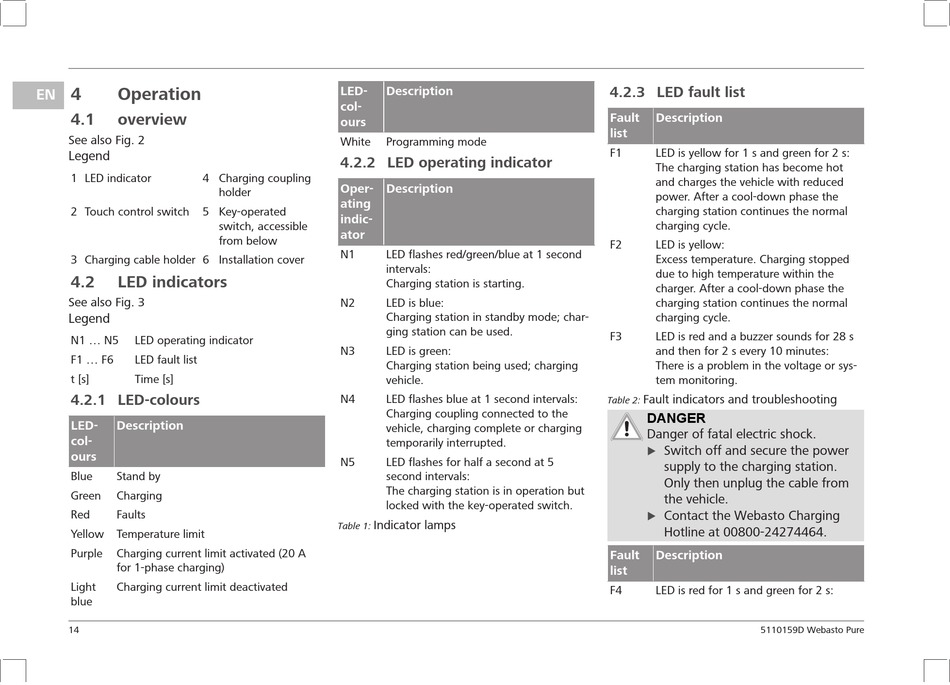

Operation

EN
4.1

overview

See also Fig. 2
Legend
1 LED indicator 4 Charging coupling
2 Touch control switch 5 Key-operated
3 Charging cable holder 6 Installation cover
4.2

LED indicators

See also Fig. 3
Legend
N1 ... N5 LED operating indicator
F1 ... F6 LED fault list
t [s] Time [s]
4.2.1 LED-colours
LED- Description
col-
ours
Blue Stand by
Green Charging
Red Faults
Yellow Temperature limit
Purple Charging current limit activated (20 A
for 1-phase charging)
Light Charging current limit deactivated
blue
14
LED- Description
col-
ours
White Programming mode
4.2.2 LED operating indicator
Oper- Description
holder
ating
indic-
switch, accessible
ator
from below
N1 LED flashes red/green/blue at 1 second
intervals:
Charging station is starting.
N2 LED is blue:
Charging station in standby mode; char-
ging station can be used.
N3 LED is green:
Charging station being used; charging
vehicle.
N4 LED flashes blue at 1 second intervals:
Charging coupling connected to the
vehicle, charging complete or charging
temporarily interrupted.
N5 LED flashes for half a second at 5
second intervals:
The charging station is in operation but
locked with the key-operated switch.
Indicator lamps
Table 1:
4.2.3 LED fault list
Fault Description
list
F1 LED is yellow for 1 s and green for 2 s:
The charging station has become hot
and charges the vehicle with reduced
power. After a cool-down phase the
charging station continues the normal
charging cycle.
F2 LED is yellow:
Excess temperature. Charging stopped
due to high temperature within the
charger. After a cool-down phase the
charging station continues the normal
charging cycle.
F3 LED is red and a buzzer sounds for 28 s
and then for 2 s every 10 minutes:
There is a problem in the voltage or sys-
tem monitoring.
Fault indicators and troubleshooting
Table 2:
DANGER
Danger of fatal electric shock.
Switch off and secure the power
u
supply to the charging station.
Only then unplug the cable from
the vehicle.
Contact the Webasto Charging
u
Hotline at 00800-24274464.
Fault Description
list
F4 LED is red for 1 s and green for 2 s:
