Summary of Contents for Webasto TurboDX

  • Page 1 User Guide EV Charging Station TurboDX English...
  • Page 2 Systems, Inc. Disclaimer: This user guide includes the latest information available at the time of printing. Webasto Charging Systems, Inc. reserves the right to make changes to this user guide and/or product without further notice. Changes or modifications to this product not completed by an authorized service provider could void the product warranty.
  • Page 3 To ensure proper service, please take note of the serial number when contacting Customer Service. SAVE THESE INSTRUCTIONS! This manual contains important instructions for the TurboDX EV Charging Station that shall be followed during installation, operation, and maintenance of the unit. To download the Installation Guide, visit www.evsolutions.com/ev-charging-product-resources...
  • Page 4: Table Of Contents

    SAVE THESE INSTRUCTIONS! This manual contains important instructions for the TurboDX EV Charging Station that shall be followed during installation, operation and maintenance of the unit. TABLE OF CONTENTS SECTION 1: INTRODUCTION ............1 Symbol Usage ................2 About Your TurboDX EV Charging Station ........3 Packaging Components ..............5...
  • Page 5: Section 1: Introduction

    SECTION 1 INTRODUCTION...
  • Page 6: Symbol Usage

    SYMBOL USAGE Indicates information about safety practices which, if not followed, may result in serious injury or death. DANGER ....................Indicates information about safety practices which, if not followed, WARNING could result in personal injury or are necessary to prevent fire or equipment overheating.
  • Page 7: About Your Turbodx Ev Charging Station

    3 of this document. If the guide cannot sufficiently help to solve the issue, please contact Customer Service to find an authorized electrician for further investigation. The TurboDX EV Charging Station operates from 208 to 240 VAC 50/60 Hertz. KEY FEATURES •...
  • Page 8 WARNING always be followed, including the following: • Read the warning label on TurboDX unit before operating the unit the first time. Read all instructions in this guide before using this product. • Children should be supervised when in the vicinity of the charger while plugged in.
  • Page 9: Packaging Components

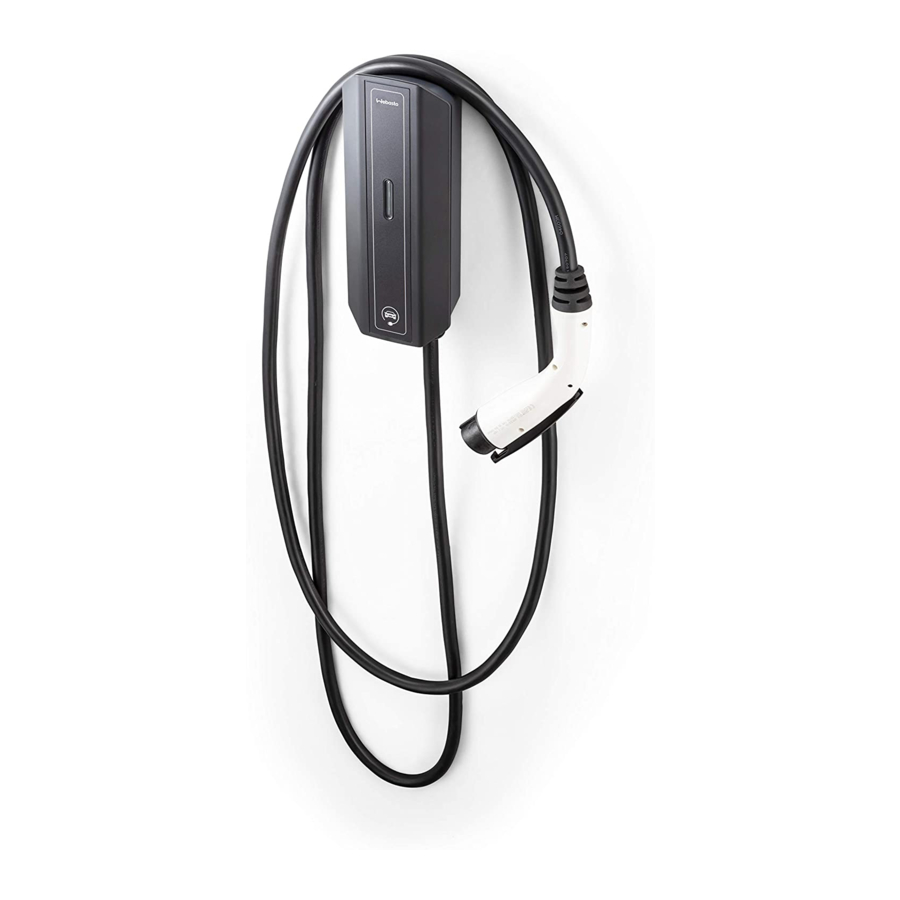

    Avoid contact with exposed electronics during handling of charger. WARNING TURBODX EV CHARGING STATION - COMPONENTS Charge Cable or Cord The TurboDX EV Charging Station has an integral cord hanger. Wrap the cord around the unit to keep it off the ground. SAE Charge Coupler...
  • Page 10: Section 2: Using Your Ev Charging Station

    SECTION 2 USING YOUR EV CHARGING STATION...
  • Page 11: Know Your Indicator Lights

    KNOW YOUR INDICATOR LIGHTS On the front cover of the TurboDX EV Charging Station, an indicator light is used to communicate the status of your charger. It is important to understand how to interpret the color and pattern of the indicator light; the following provides a...
  • Page 12: Charging Your Vehicle

    NOTE Make sure the vehicle is in park and is turned off. Verify the TurboDX EV Charging Station is powered on; if not, turn on power. During startup of the charger, the system will perform a self-test to ensure correct operation. During this test, the indicator light will briefly flash red to blue to confirm that the self-test is complete and the unit is ready for operation.
  • Page 13: Manual Stop & Manual Restart

    The RED TROUBLE indicator will illuminate if the unit is not charging. The unit NOTE will turn off if the upstream breaker is tripped. MANUAL STOP To safely stop charging at any time before charge completing, press the charge coupler release button and remove coupler from the vehicle. IEC couplers will have not released button;...
  • Page 14: Section 3: Troubleshooting

    CHAPTER 3 TROUBLESHOOTING...
  • Page 15 TROUBLESHOOTING Please refer to this Troubleshooting Guide for possible solutions to common errors or difficulties with charging your vehicle using your portable charger. Do not attempt to repair or service the charger yourself. NOTE There are no user serviceable parts inside. A RED TROUBLE indicator may be triggered by several sources, including the charger, the utility service, or the vehicle.
  • Page 16 Problem Possible Cause Solution RED TROUBLE Utility fault 1. Power cycle charger at Indicator is blinking breaker box. rapidly 2. If the condition persists, have a qualified electrician inspect the wall outlet ground circuit integrity. 3. Repair as required. Above temperature 1.
  • Page 17: Appendix

    APPENDIX...
  • Page 19: Specifications

    SPECIFICATIONS Model EVSE-DX Line input power: 208/240 VAC 16 amps continuous @ 240/208 VAC Output power: 32 amps continuous @ 240/208 VAC 20 amps @ 240/208 VAC Circuit breaker rating: 40 amps @ 240/208 VAC Frequency: 50/60 Hz Power draw at idle: <...
  • Page 20: High Voltage Warning

    HIGH VOLTAGE WARNING High voltage is present in your electric meter housing and power distribution service panel. Contact with high voltage can cause death or DANGER serious personal injury..............................................DO NOT operate your charger with a damaged output cable, charge coupler, or module.
  • Page 21: Fcc Information

    FCC INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received, including interference that may cause undesired operation. This product has been designed to protect against Radio Frequency Interference (RFI).
  • Page 23: Limited Warranty

    Product installation by a person not certified in writing by Webasto, or if the Product was not operated or maintained in strict compliance with Webasto’s printed operating instructions. Any evidence of an attempt to disassemble or reverse engineer the Products will void the warranty.
  • Page 24 Webasto Charging Systems Inc. 800 Royal Oaks Dr, Suite 210 Monrovia, CA 91016 www.evsolutions.com United States...
