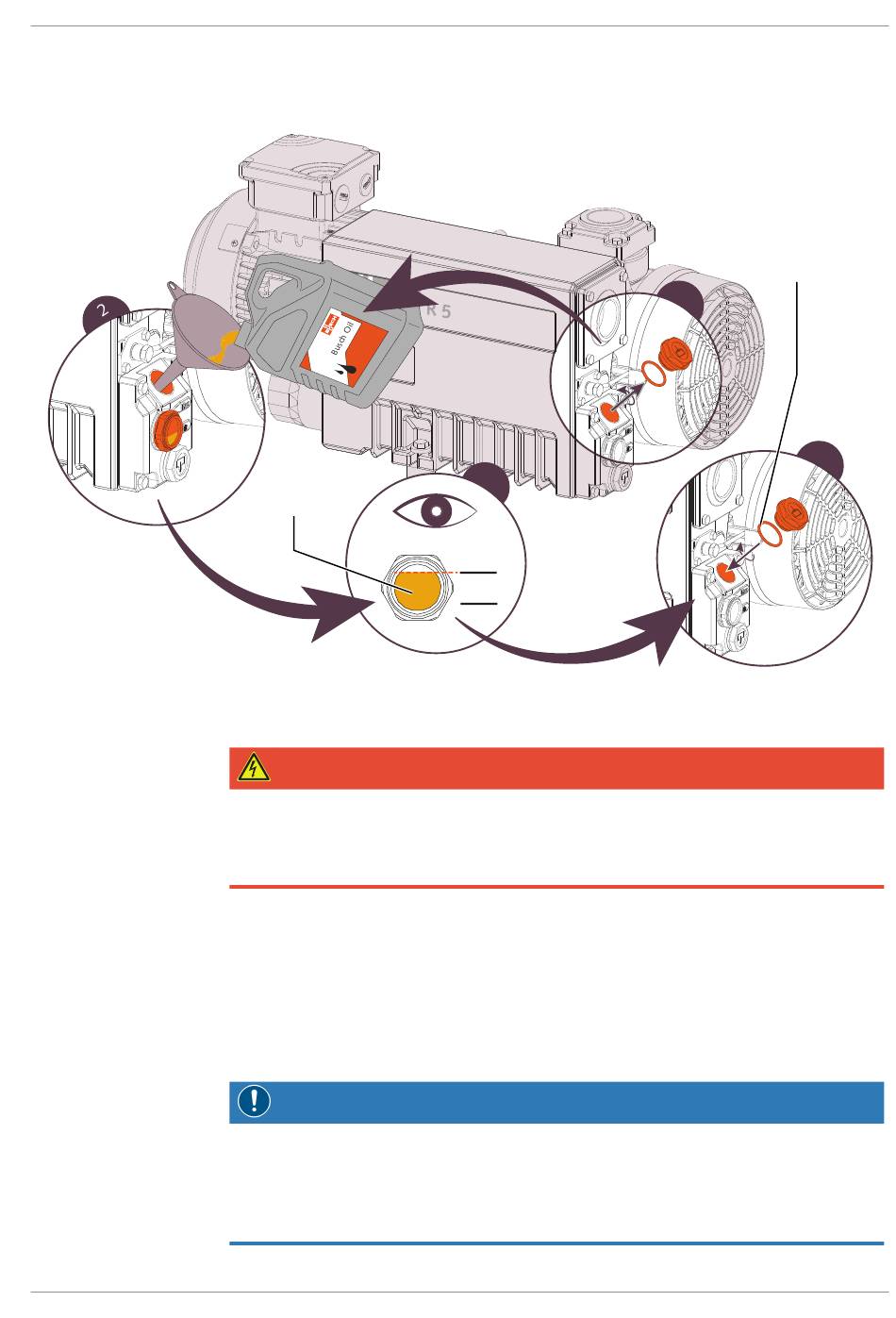

5.3 Filling Oil

5.4 Electrical Connection

0870157201_RA0025-0040F_A0002_IM_en
For oil type and oil capacity see Technical Data [} 19] and Oil [} 19].
Check oil level
DANGER
Live wires.
Risk of electrical shock.
• Electrical installation work must only be executed by qualified personnel.
• Make sure that the power supply for the motor is compatible with the data on the
nameplate of the motor.
• Provide an overload protection according to EN 60204-1 for the motor.
• Make sure that the motor of the machine will not be affected by electric or electro-
magnetic disturbance from the mains; if necessary seek advice from Busch.
• Connect the protective earth conductor.
• Electrically connect the motor.
NOTICE
Incorrect connection.
Risk of damage to the motor!
• The wiring diagrams given below are typical. Check the inside of the terminal box for
motor connection instructions/diagrams.
3
MAX
MIN
Installation | 5
1x o-ring, part no.:
0486 000 590
